Assembly

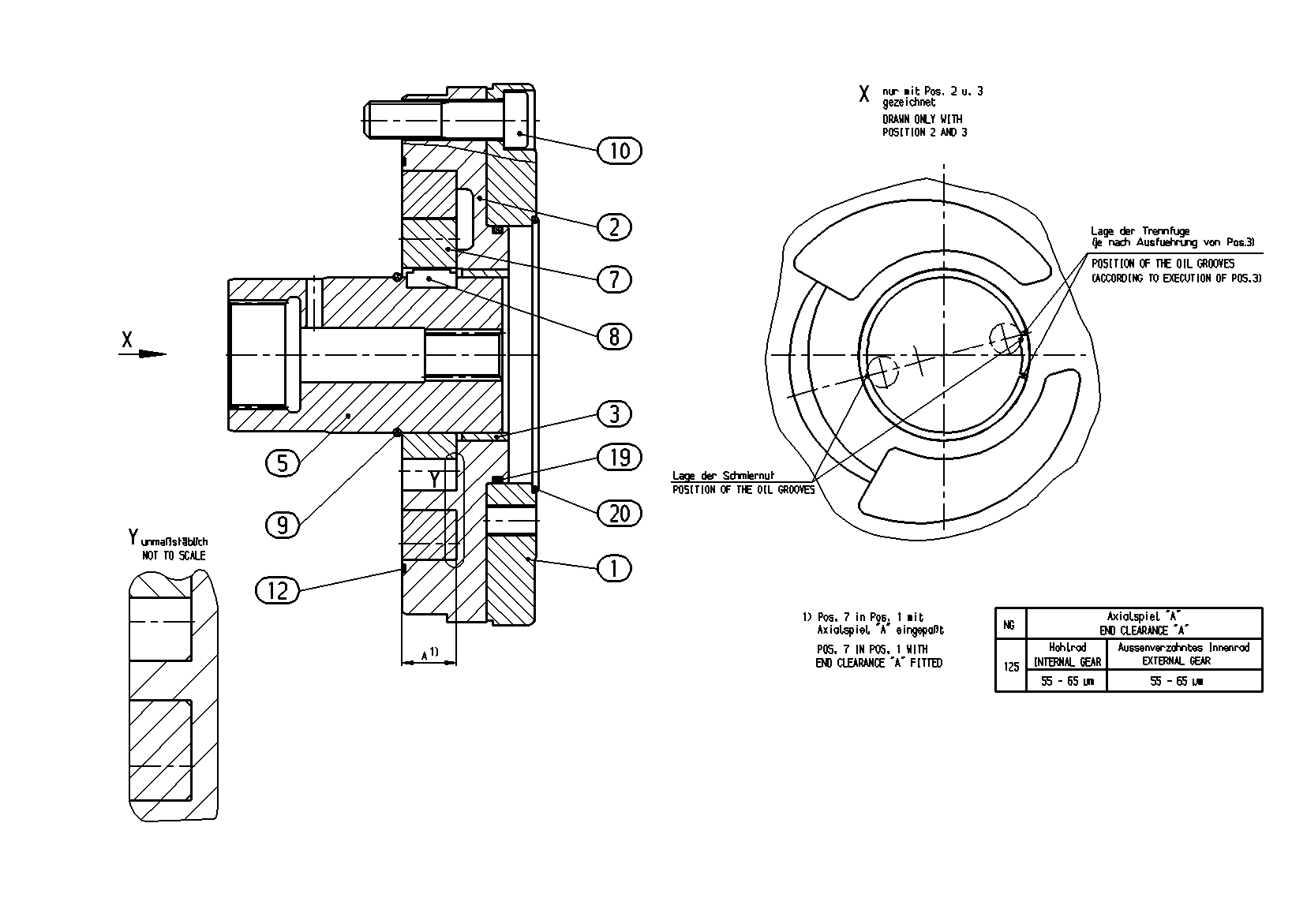

INTERNAL GEAR PUMPR902163332
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902260538 | INTERMEDIATE FLANGE | 1 | ||
| R902071495 | PUMP COVER | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R902104662 | THROUGH DRIVE SHAFT | 1 | ||
| R902085101 | WHEEL SET | 1 | ||
| R902105557 | PARALLEL KEY | 1 | ||
| R909154019 | SNAP RING | 1 | ||
| R909083207 | SOCKET HEAD CAP SCREW | 4 | ||
| R913026809 | KANTSEALD | 1 | ||
| R909083790 | O-RINGD | 1 | ||
| R913044774 | O-RINGD | 1 |
