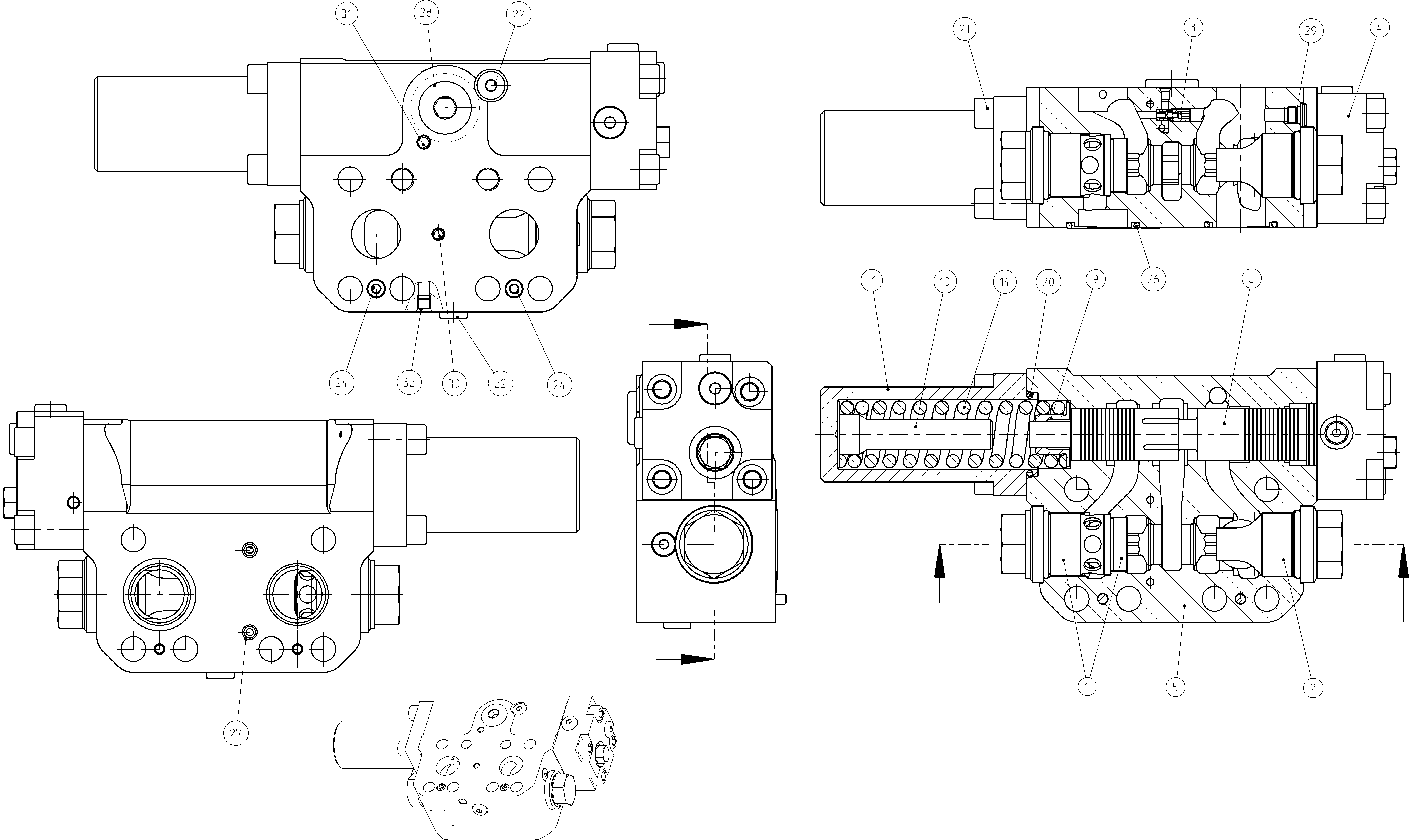

Assembly
BRAKE VALVER902168426
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902048839 | VALVE Assembly parts list →L | 1 | ||
| R902053253 | VALVE Assembly parts list →L | 1 | ||
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902168400 | COVER Assembly parts list →L | 1 | ||
| R902272796 | HOUSING | 1 | ||
| R902139412 | BRAKE PISTON | 1 | ||
| R902236298 | SPRING DISK | 1 | ||
| R902050942 | SPRING BOLT | 1 | ||
| R902050928 | COVER | 1 | ||
| R902156662 | COMPRESSION SPRING | 1 | ||
| R902600675 | O-RING | 1 | ||
| R909086573 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156650 | SCREW PLUG | 2 | ||
| R909830902 | SOCKET HEAD CAP SCREW | 2 | ||
| R909154053 | O-RING | 2 | ||
| R902601483 | O-RING | 2 | ||
| R909156984 | SCREW PLUG | 1 | ||
| R902601874 | SCREW PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
