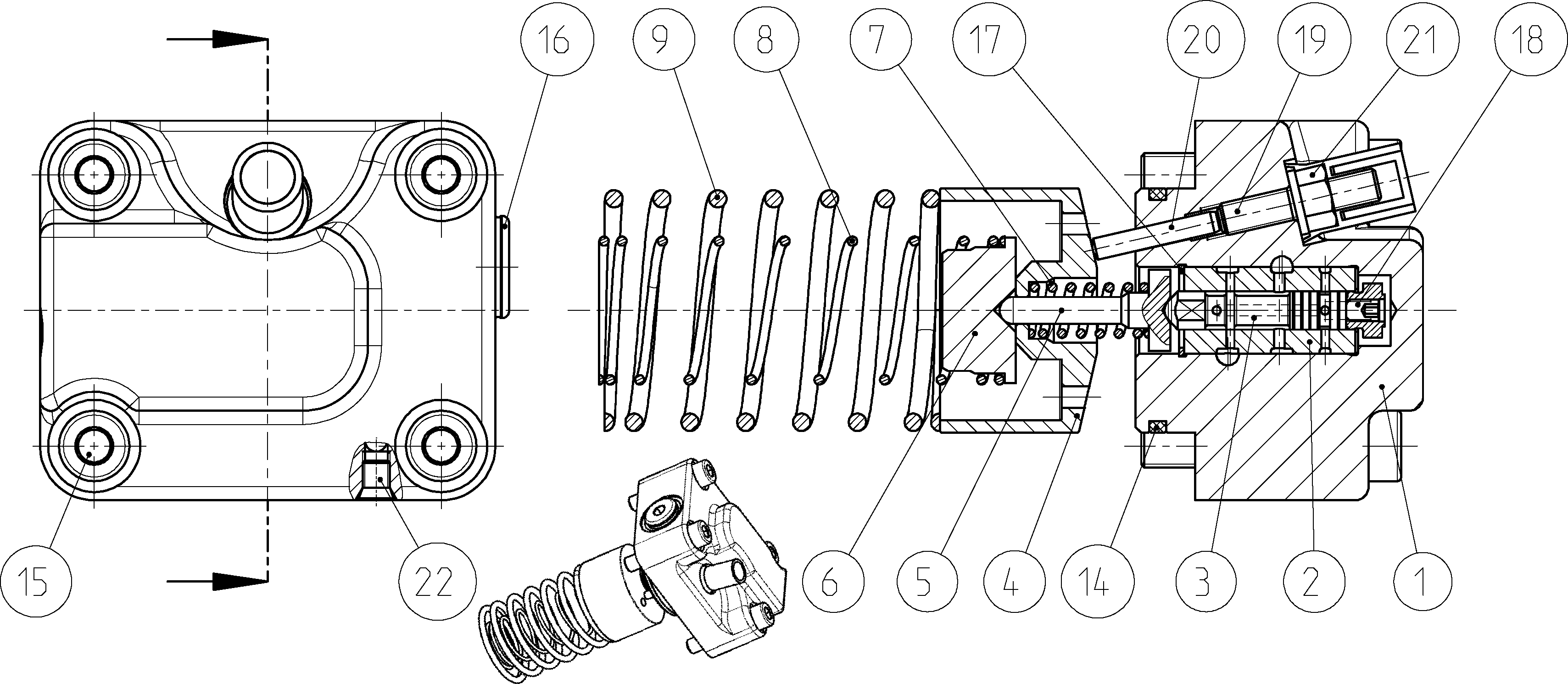

Assembly
CONTROL PARTR902189238
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902209570 | CONTROL HOUSING | 1 | ||
| R909417322 | CONTROL SLEEVE | 1 | ||
| R909417323 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R909420874 | SPRING DISK | 1 | ||
| R909921420 | COMPRESSION SPRING | 1 | ||
| R909449725 | COMPRESSION SPRING | 1 | ||
| R909921342 | COMPRESSION SPRING | 1 | ||
| R909085560 | O-RINGD | 1 | ||
| R909830176 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831482 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087165 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
