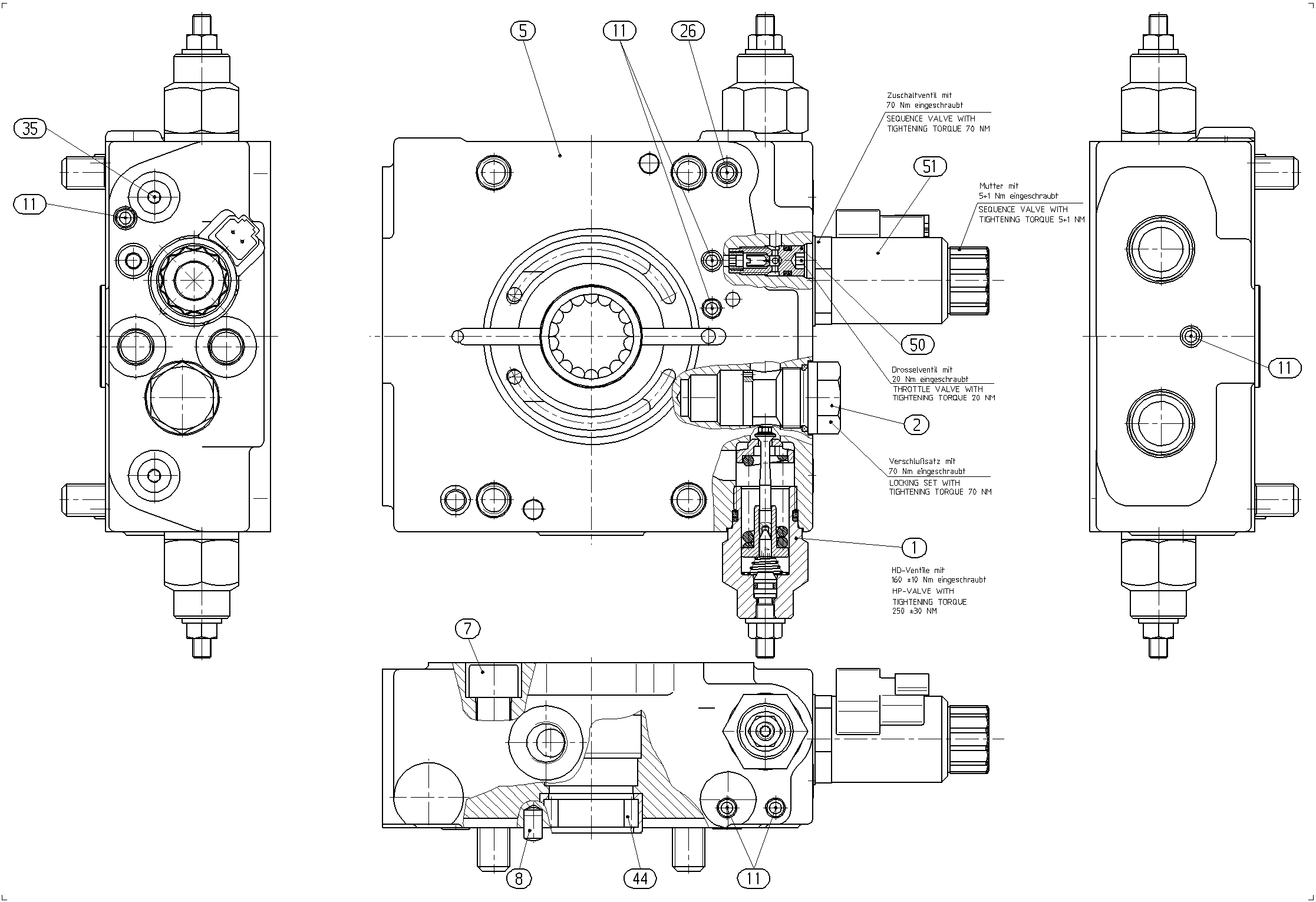

Assembly
CONNECTION PLATER902189995
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016388 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909613678 | LOCKING SET | 1 | ||
| R902188386 | CONNECTION PLATE | 1 | ||
| R902600524 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084173 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909085709 | O-RINGD | 2 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909156249 | CYL. ROLLER BEARING | 1 | ||
| R902008972 | THROTTLE VALVE Assembly parts list →L | 1 | ||
| R901266963 | DIRECTIONAL SPOOL VALVE | 1 | ||
| 98 | R902002446 | SEAL KIT | 1 |
