Assembly

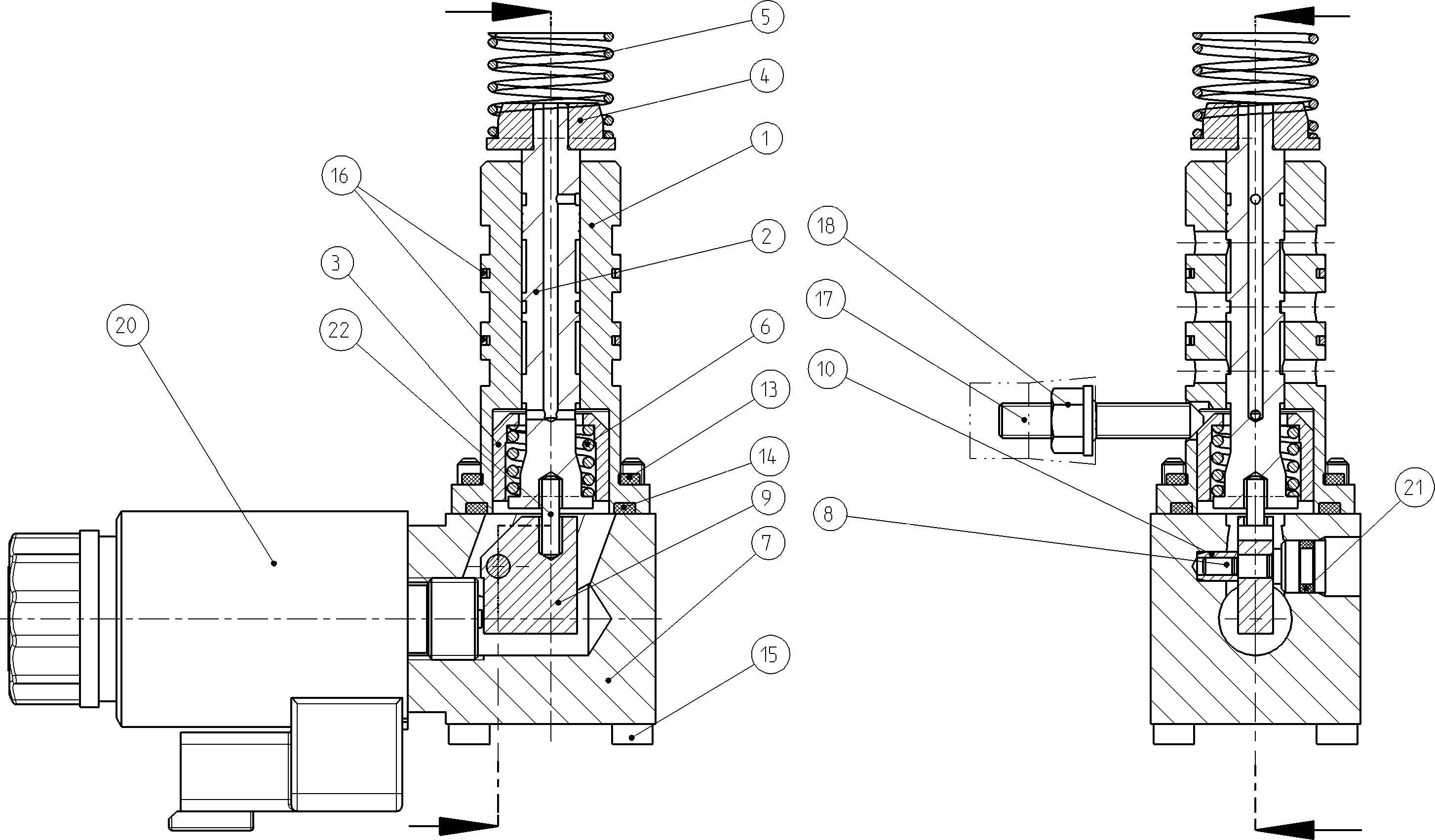

CONTROL ELEMENTR902190303
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902061425 | CONTROL SLEEVE | 1 | ||
| R902081418 | CONTROL PISTON | 1 | ||
| R902005735 | ADJUSTING BUSHING | 1 | ||
| R909443179 | SPRING DISK | 1 | ||
| R902127445 | COMPRESSION SPRING | 1 | ||
| R909449773 | COMPRESSION SPRING | 1 | ||
| R902081349 | HOUSING | 1 | ||
| R902081350 | BEARING BOLT | 1 | ||
| R902081351 | DUMMY | 1 | ||
| R902081352 | BUSHING | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909083761 | O-RING | 1 | ||
| R909156585 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601678 | STEEL SEALING RING | 2 | ||
| R909157096 | SETSCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R902603442 | PROPORTIONAL SOLENOID | 1 | ||
| R909087877 | O-RING | 1 | ||
| R902081573 | BOLT | 1 |
