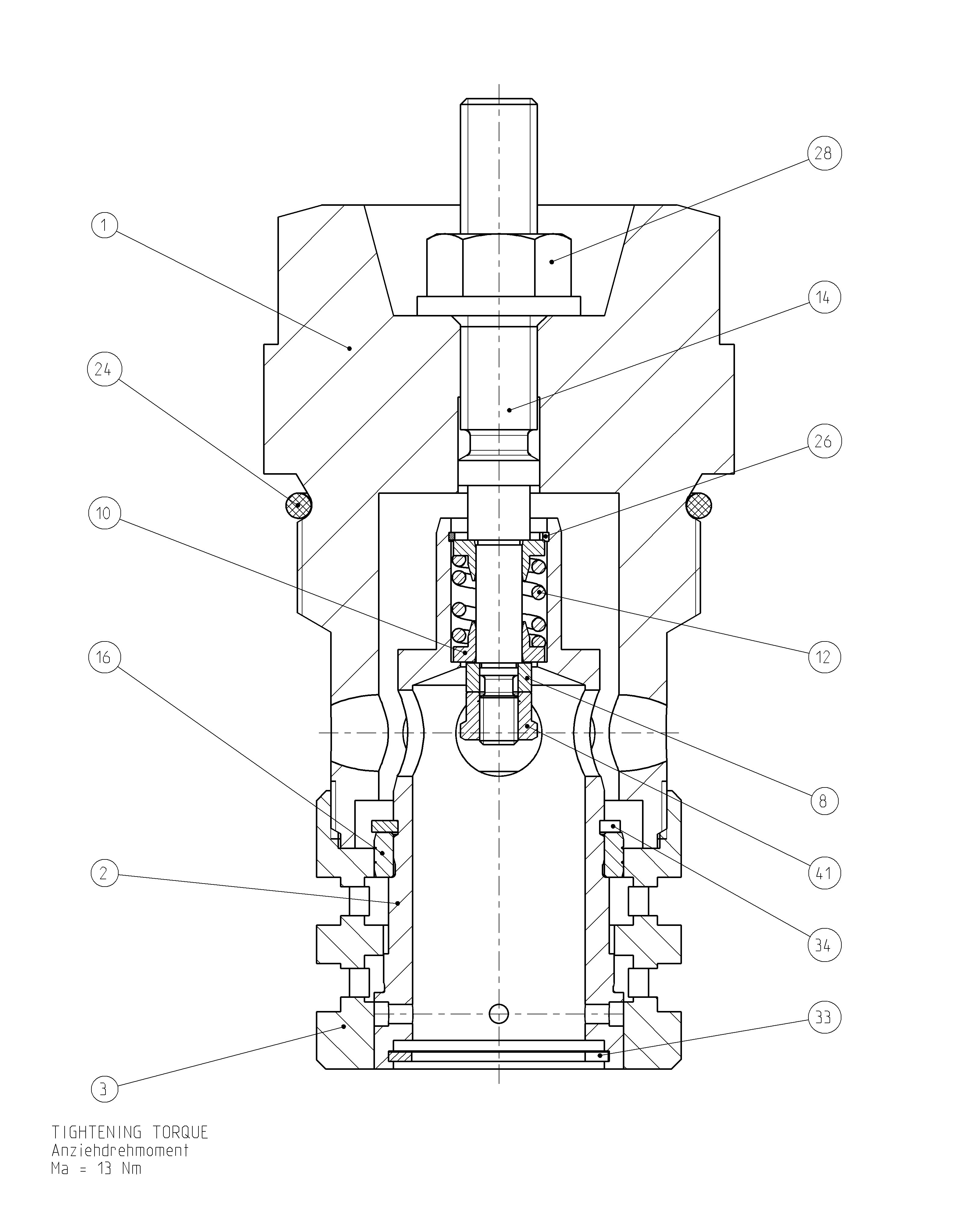

Assembly
CONTROL CARTRIDGER902190554
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909439184 | CONTROL SCREW | 1 | ||
| R909922154 | DIFFERENTIAL PISTON | 1 | ||
| R909922155 | CONTROLLER PIPE | 1 | ||
| R909421327 | WASHER | 1 | ||
| R909414047 | SPRING DISK | 2 | ||
| 12 | R909412585 | COMPRESSION SPRING | 1 | |
| 14 | R902037910 | SETSCREW | 1 | |
| R909445441 | RING | 1 | ||
| R909156361 | O-RINGD | 1 | ||
| R909156476 | SNAP RING | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| 33 | R909083386 | V-RING | 1 | |
| 34 | R909830070 | V-RING | 1 | |
| 41 | R909157287 | HEXAGON NUT | 1 |
