Assembly

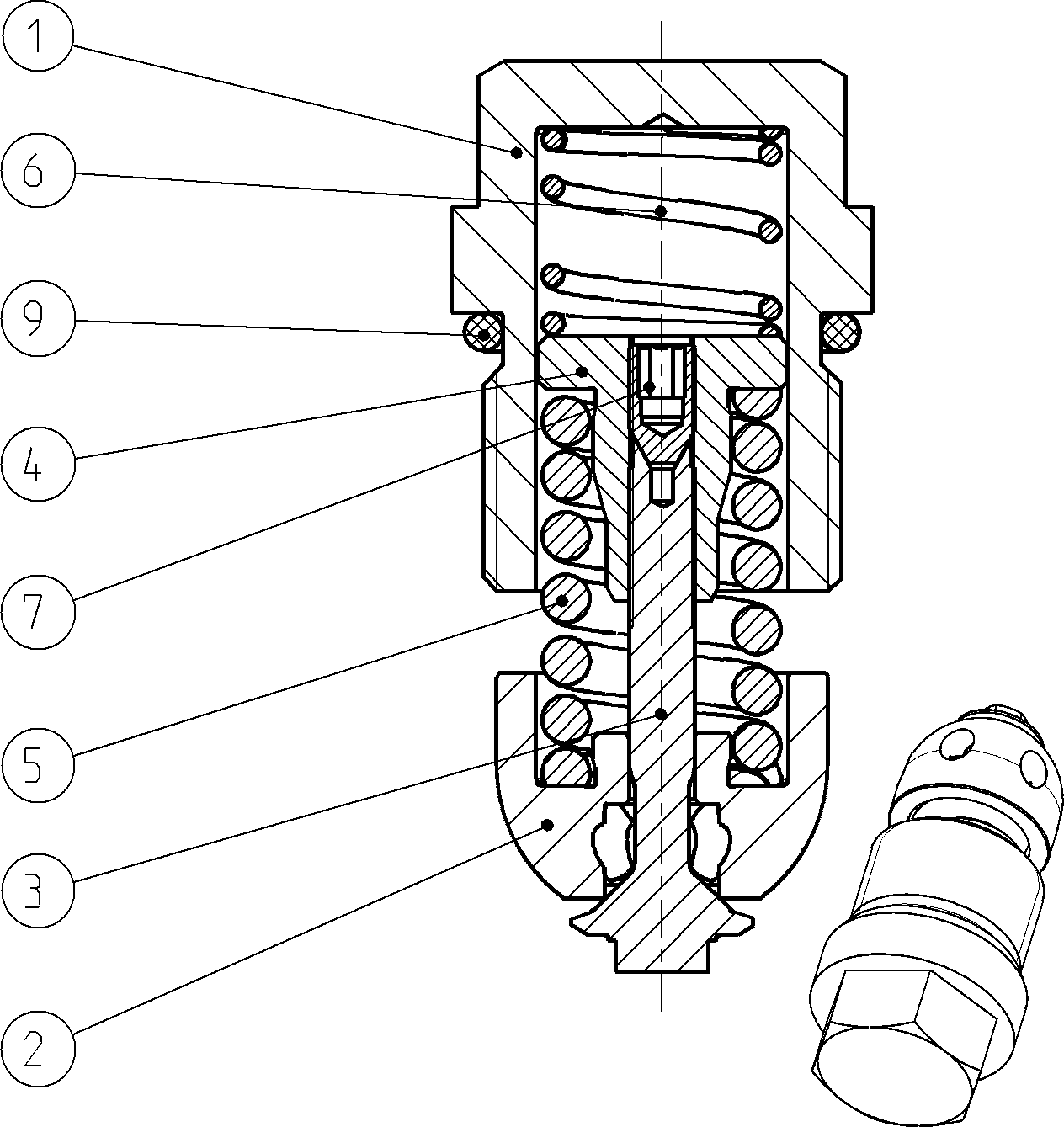

PRESSURE RELIEF VALVER902190600
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902190602 | SCREW PLUG | 1 | ||
| R902228559 | VALVE PLATE | 1 | ||
| R902190607 | VALVE STEM | 1 | ||
| R902190604 | EXPANSION PIECE | 1 | ||
| R902190623 | COMPRESSION SPRING | 1 | ||
| R902190624 | COMPRESSION SPRING | 1 | ||
| R902000658 | SETSCREW | 1 | ||
| R909830867 | O-RING | 1 |
