Assembly

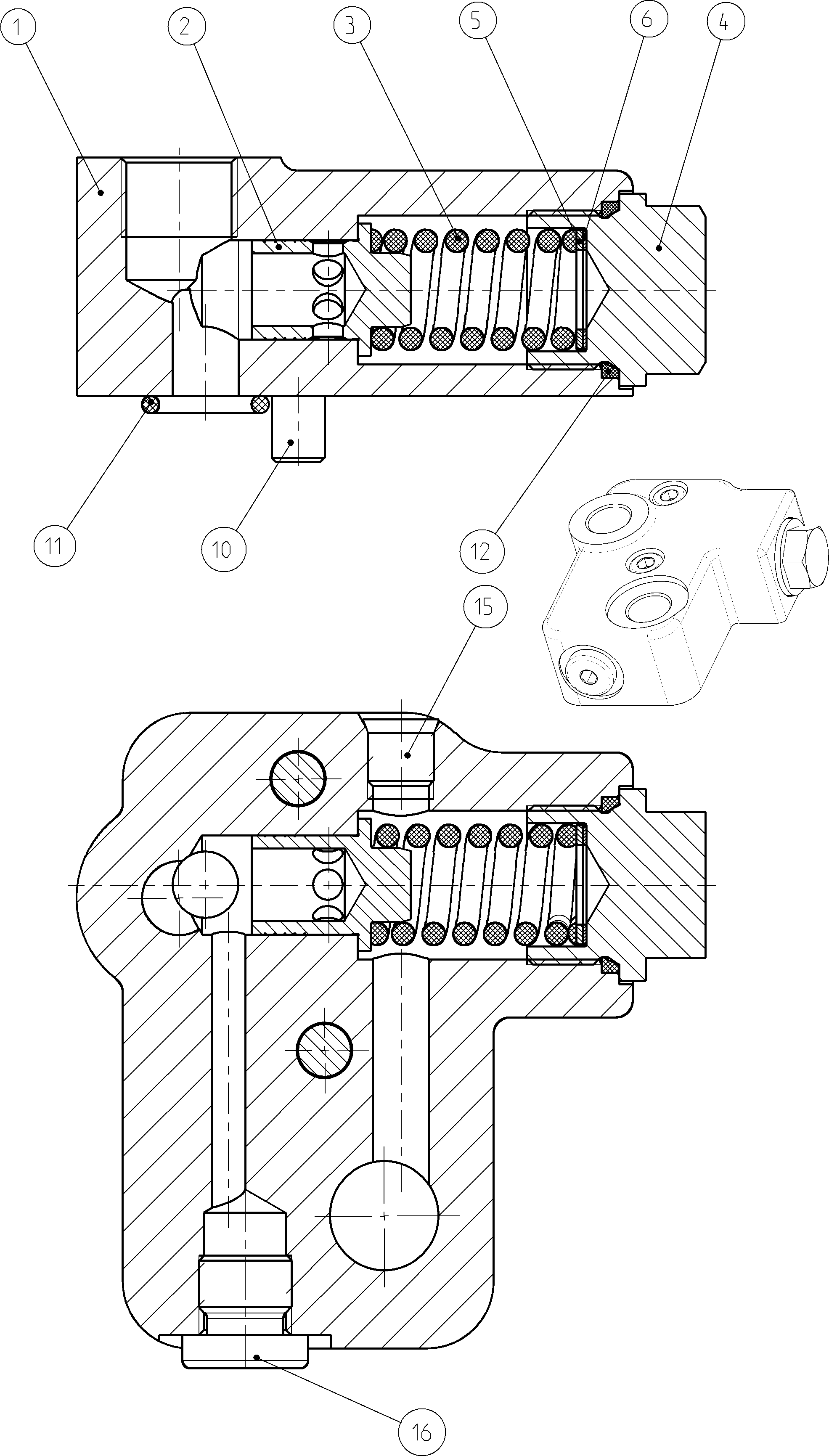

CONNECTION PLATER902191550
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902153642 | CONNECTION PLATE | 1 | ||
| R909426804 | VALVE SPOOL | 1 | ||
| R902030583 | COMPRESSION SPRING | 1 | ||
| R909409509 | SCREW PLUG | 1 | ||
| R902600633 | SHIM RING | 1 | ||
| R909154477 | SHIM RING | 1 | ||
| R909083041 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083753 | O-RING | 2 | ||
| R909083760 | O-RING | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153930 | SCREW PLUGD | 1 |
