Assembly

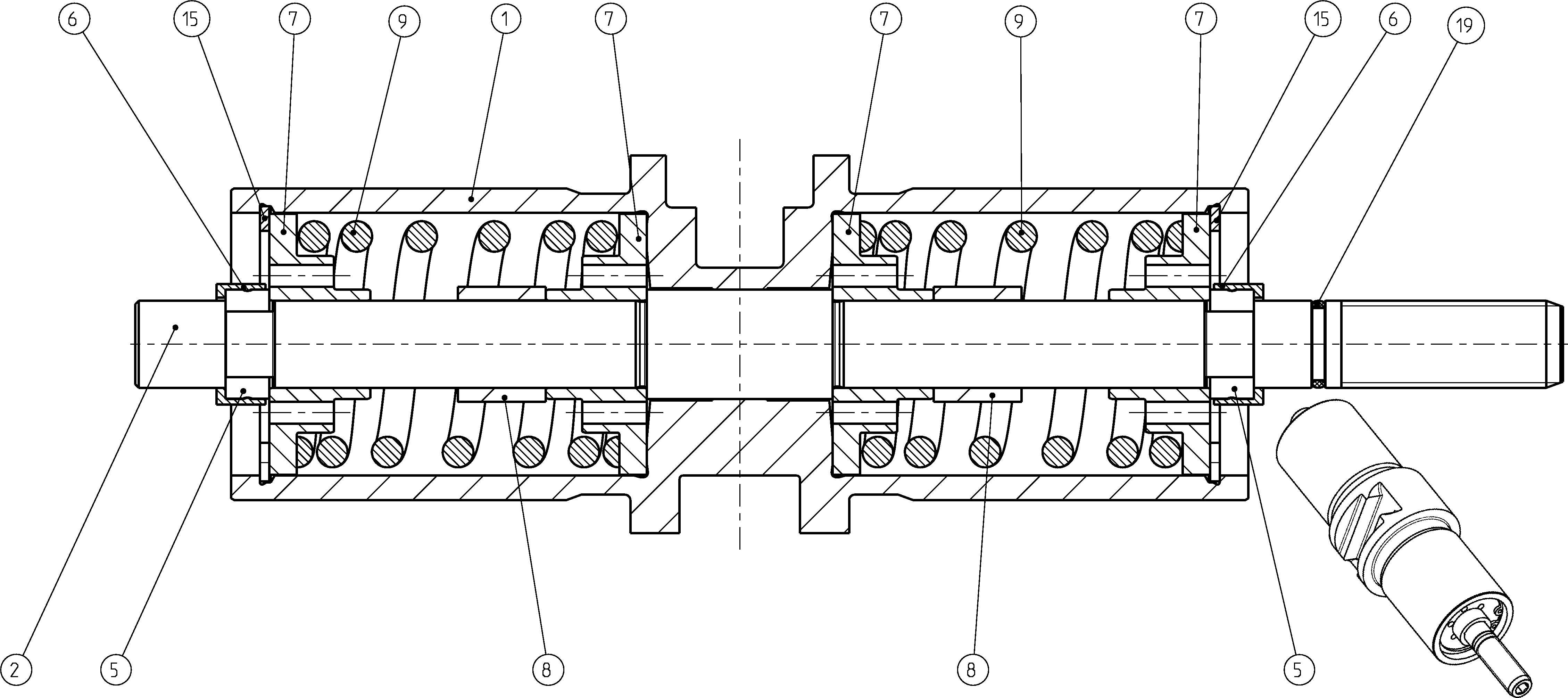

POSITIONING PISTONR902192589
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902192588 | POSITIONING PISTON | 1 | ||
| R902103193 | ROD | 1 | ||
| R902020493 | RING | 2 | ||
| R902020494 | RING | 2 | ||
| R902020495 | RING | 2 | ||
| R902020496 | RING | 2 | ||
| R902020497 | RING | 2 | ||
| R902020498 | RING | 2 | ||
| R902029756 | RING | 2 | ||
| R902029757 | RING | 2 | ||
| R902043149 | RING | 2 | ||
| R902105868 | RING | 2 | ||
| R902600767 | LOCATING RING | 2 | ||
| R902192591 | SPRING DISK | 4 | ||
| R902114309 | SPACER BUSHING | 2 | ||
| R902114310 | SPACER BUSHING | 2 | ||
| R902114311 | SPACER BUSHING | 2 | ||
| R902114312 | SPACER BUSHING | 2 | ||
| R902114313 | SPACER BUSHING Assembly parts list →L | 2 | ||
| R902118809 | SPACER BUSHING | 2 | ||
| R902118810 | SPACER BUSHING | 2 | ||
| R902118811 | SPACER BUSHING | 2 | ||
| R902244030 | SPACER BUSHING | 1 | ||
| R902244031 | SPACER BUSHING | 1 | ||
| R902192596 | COMPRESSION SPRING | 2 | ||
| R909084556 | RETAINING RING | 2 | ||
| R909086333 | O-RINGD | 1 |
