Assembly

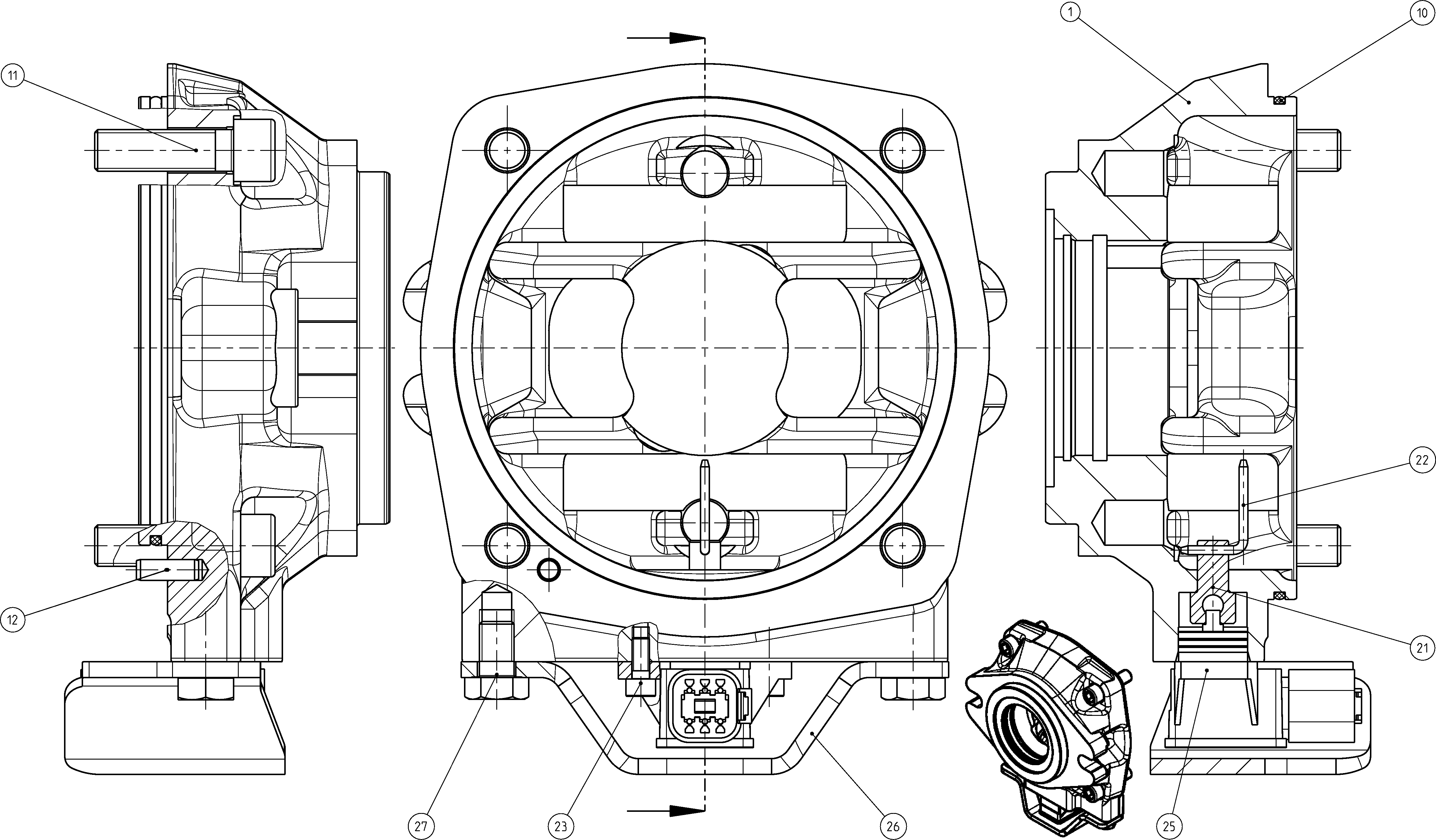

BEARING FLANGER902195092
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902105561 | BEARING FLANGE | 1 | ||
| R909086678 | O-RINGD | 1 | ||
| R909086573 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R902148863 | SENSOR SHAFT | 1 | ||
| R902095246 | WIRE | 1 | ||
| R909083009 | SOCKET HEAD CAP SCREW | 2 | ||
| R902603836 | ROT. ANGLE SENSOR | 1 | ||
| R902214000 | COVER | 1 | ||
| R909086145 | HEXAGON SCREW | 2 |
