Assembly

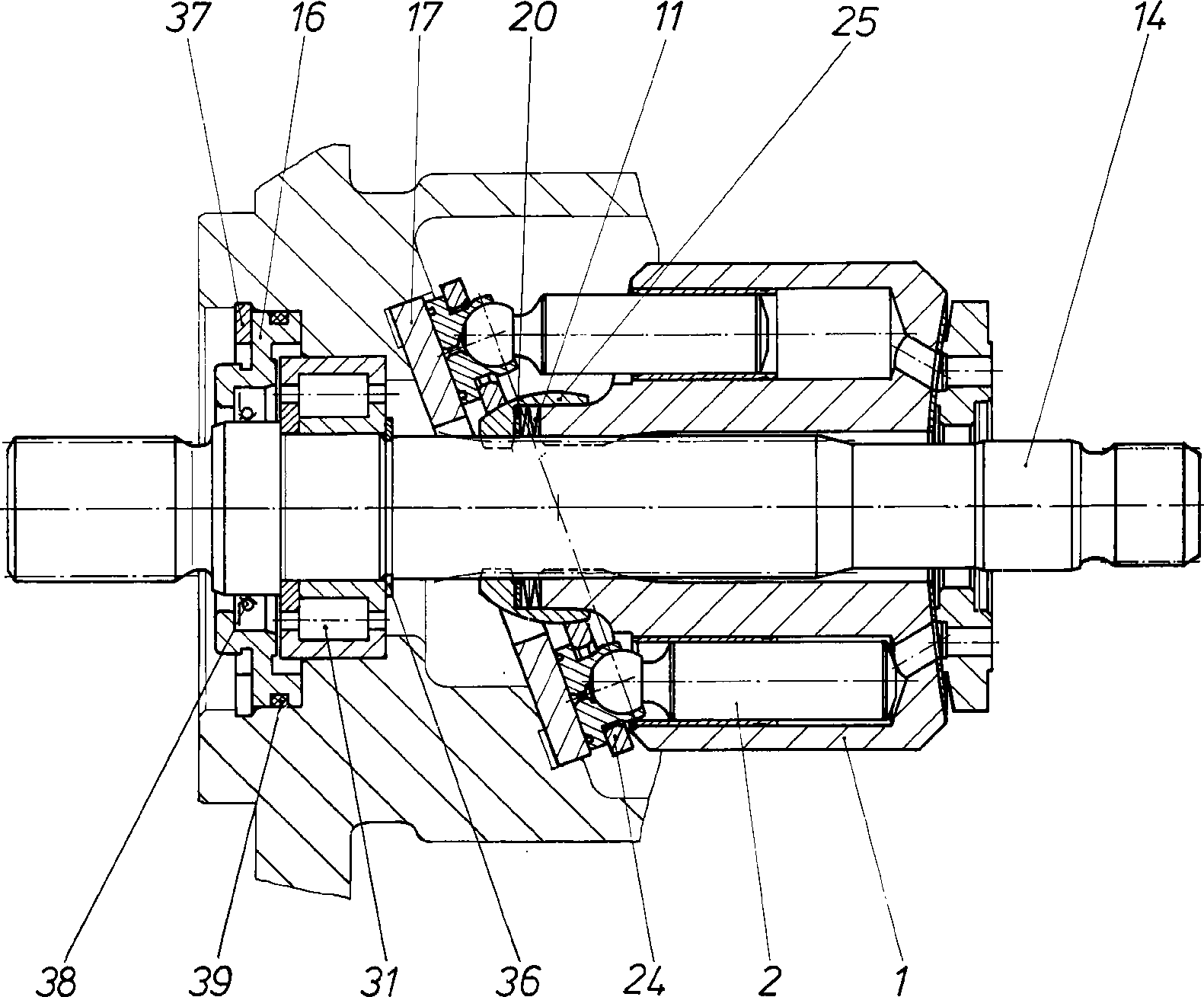

ROTARY GROUPR902195120
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195130 | CYLINDER Assembly parts list →L | 1 | ||
| R909431514 | PISTON PAD | 9 | ||
| R909444151 | CUP-SPRING STACK | 1 | ||
| R909435543 | DRIVE SHAFT | 1 | ||
| R909419824 | LOCKING RINGD | 1 | ||
| R902161587 | SLIDING DISC | 1 | ||
| R909432999 | SHIM RING | 1 | ||
| R909435000 | SHIM RING | 1 | ||
| R909435001 | SHIM RING | 1 | ||
| R909435002 | SHIM RING | 1 | ||
| R902205399 | RETAINING PLATE | 1 | ||
| R909431343 | RETAINING BALL | 1 | ||
| R909157795 | CYL. ROLLER BEARING | 1 | ||
| R909083355 | RETAINING RING | 1 | ||
| R909083410 | RETAINING RING | 1 | ||
| R909153249 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909150068 | O-RINGD | 1 |
