Assembly

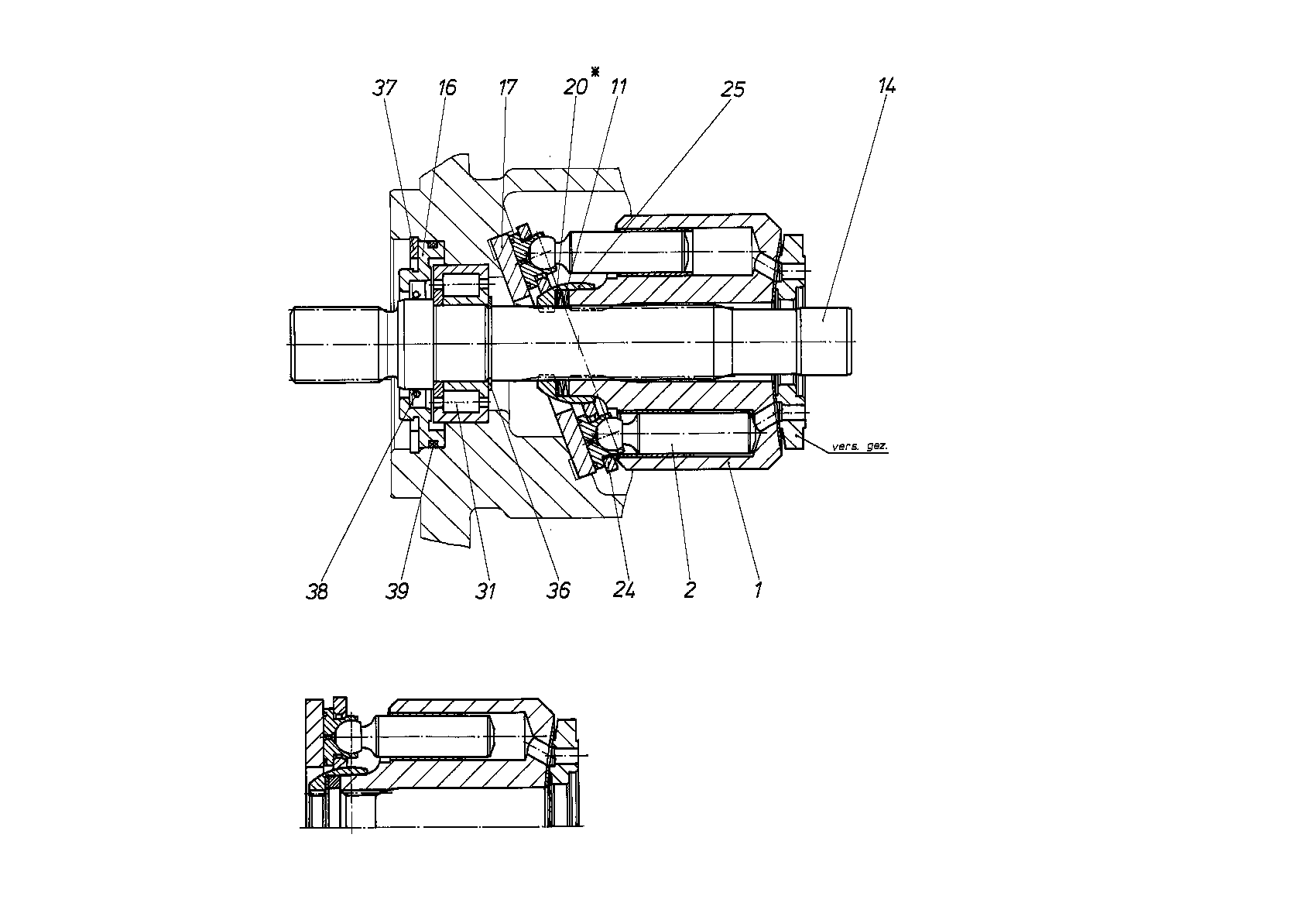

ROTARY GROUPR902195121
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902195129 | CYLINDER Assembly parts list →L | 1 | |
| 2 | R909431514 | PISTON PAD | 9 | |
| 11 | R902121243 | CUP-SPRING STACK | 1 | |
| 14 | R909435564 | DRIVE SHAFT | 1 | |
| R909419824 | LOCKING RINGD | 1 | ||
| 17 | R909430645 | SLIDING DISC | 1 | |
| 20 | R909432999 | SHIM RING | 1 | |
| 20 | R909435000 | SHIM RING | 1 | |
| 20 | R909435001 | SHIM RING | 1 | |
| 20 | R909435002 | SHIM RING | 1 | |
| R902205399 | RETAINING PLATE | 1 | ||
| R909431343 | RETAINING BALL | 1 | ||
| R909157795 | CYL. ROLLER BEARING | 1 | ||
| R909083355 | RETAINING RING | 1 | ||
| R909083410 | RETAINING RING | 1 | ||
| 38 | R909153249 | ROTARY SHAFT LIP SEALD | 1 | |
| R909150068 | O-RINGD | 1 |
