Assembly

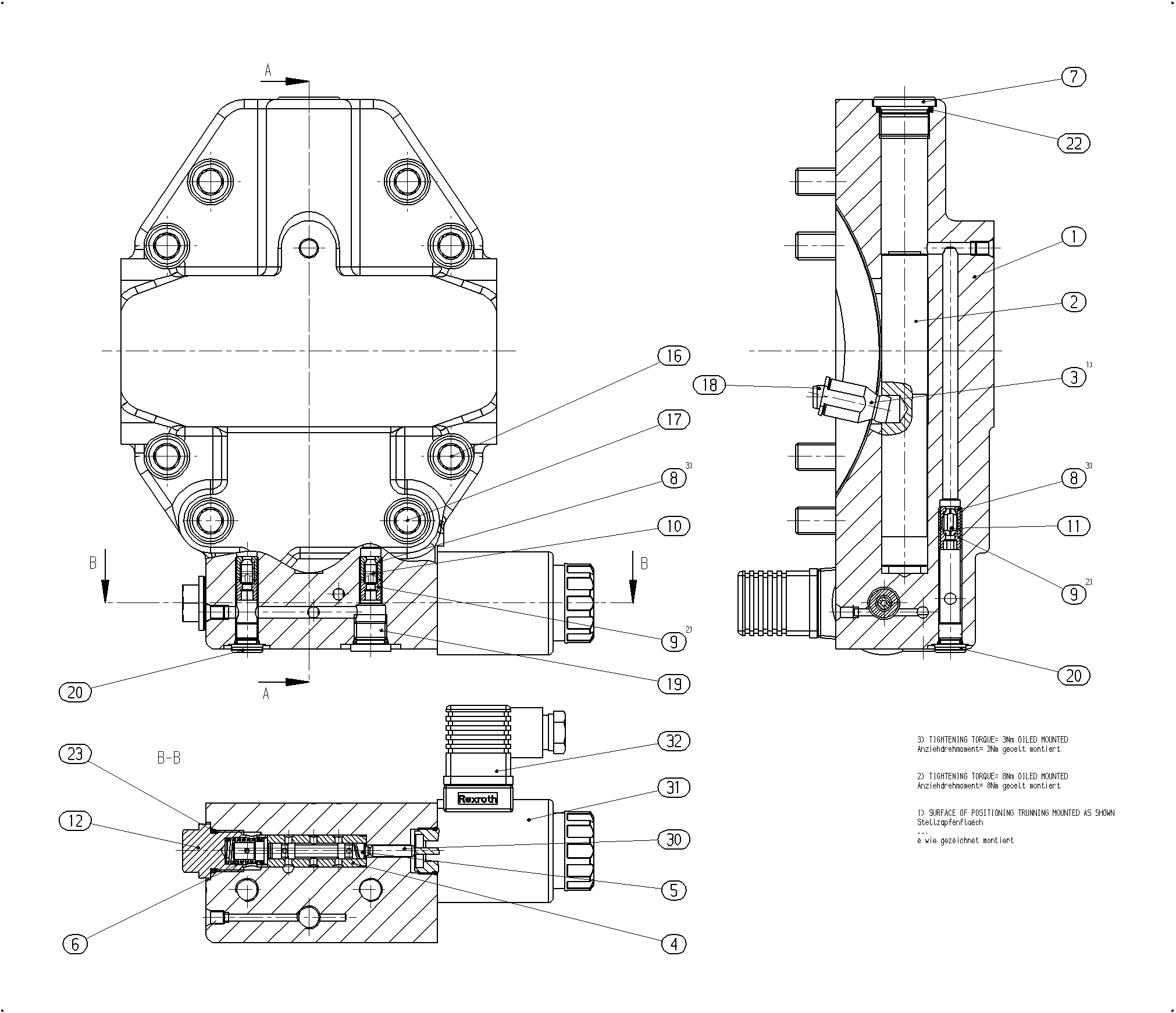

COVER PLATER902196715
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902149335 | COVER PLATE Assembly parts list →L | 1 | ||
| R909922089 | POSITIONING PISTON | 1 | ||
| R909650146 | POSITIONING STUD | 1 | ||
| R909921975 | CONTROL SLEEVE | 1 | ||
| R909922088 | CONTROL PISTON | 1 | ||
| R909445946 | COMPRESSION SPRING | 1 | ||
| R909443868 | SCREW PLUG | 1 | ||
| R909400263 | THROTTLE SCREW | 3 | ||
| R909400264 | THROTTLE SCREW | 3 | ||
| R909439287 | VALVE PIN | 2 | ||
| R909400262 | THROTTLE PIN | 1 | ||
| R902126546 | SCREW PLUG | 1 | ||
| R913068735 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R913044793 | SCREW PLUGD | 1 | ||
| R902602216 | SCREW PLUGD | 2 | ||
| R909152694 | O-RINGD | 1 | ||
| R909830860 | O-RINGD | 1 | ||
| R909831667 | NEEDLE-ROLLER | 1 | ||
| R902603561 | SWITCHING SOLENOID | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 |
