Assembly

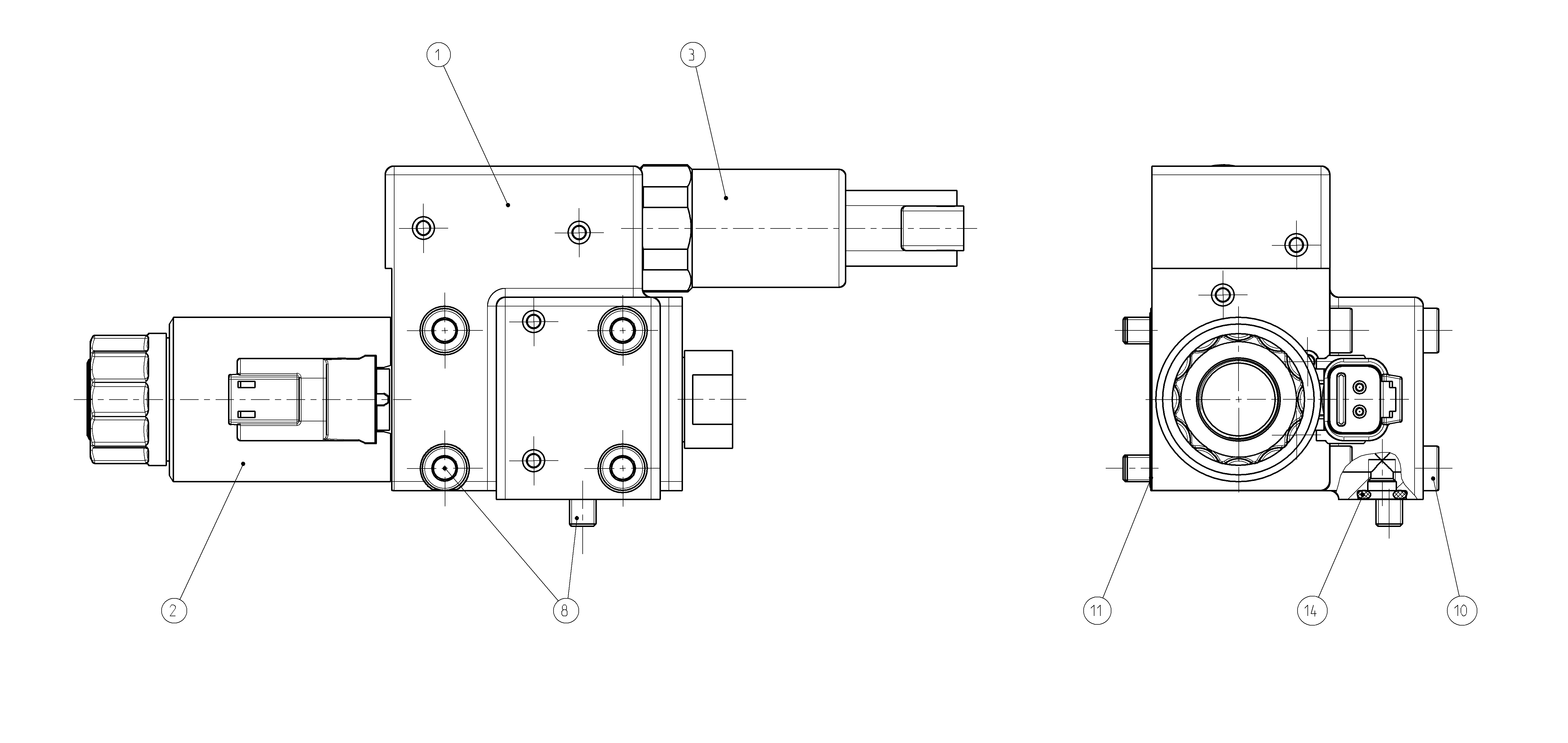

CONTROL MODULER902197241
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902156761 | VALVE HOUSING Assembly parts list →L | 1 | ||
| R902602690 | SWITCHING SOLENOID | 1 | ||
| 3 | R901121585 | PRESSURE REDUCING VALVE | 1 | |
| 8 | R909083027 | SOCKET HEAD CAP SCREW | 3 | |
| 10 | R909085831 | SOCKET HEAD CAP SCREW | 2 | |
| 11 | R902603829 | SEAL | 1 | |
| 14 | R909157512 | O-RING | 1 |
