Assembly

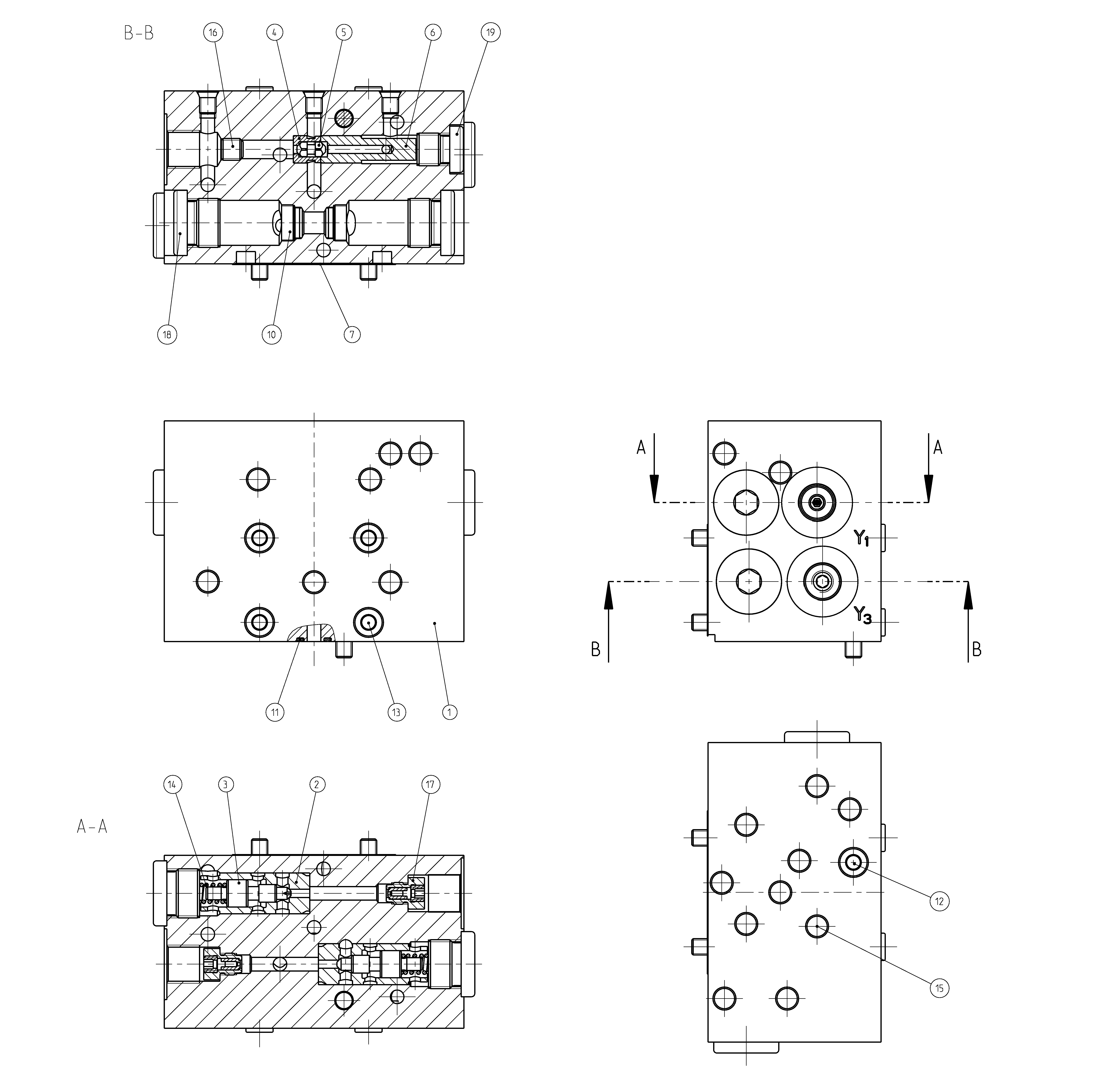

CONTROL UNITR902197472
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902228618 | HOUSING | 1 | ||
| R902005872 | VALVE BUSHING | 2 | ||
| R902007396 | THROTTLE PISTON | 2 | ||
| R909443061 | VALVE HOUSING | 1 | ||
| R909443060 | VALVE PIN | 1 | ||
| R902005869 | VALVE HOUSING | 1 | ||
| R902603829 | SEALD | 1 | ||
| R909831957 | CHECK VALVE | 2 | ||
| R909085709 | O-RINGD | 1 | ||
| R909085701 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902228591 | COMPRESSION SPRING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 9 | ||
| R909083493 | SETSCREW | 1 | ||
| R902007176 | THROTTLE VALVE Assembly parts list →L | 2 | ||
| R909153815 | SCREW PLUGD | 4 | ||
| R909151692 | SCREW PLUGD | 1 |
