Assembly

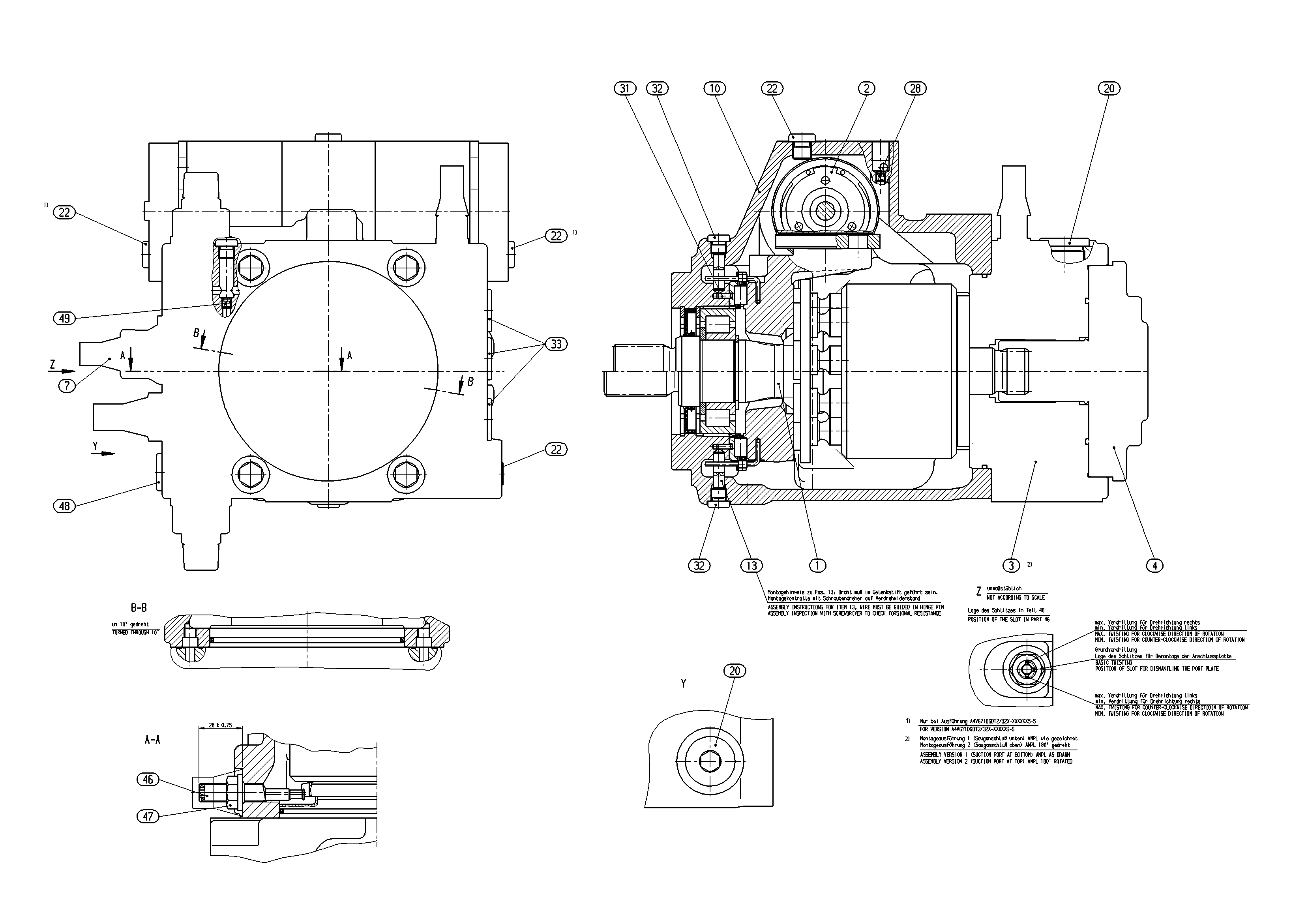

AXIAL-PISTON PUMPR902197669
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199721 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902016077 | CONTROL Assembly parts list →L | 1 | ||
| R909609869 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902006245 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902087036 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902020139 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909153891 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151694 | SCREW PLUGD | 3 | ||
| R909436131 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| 98 | R902095649 | SEAL KIT | 1 |
