Assembly

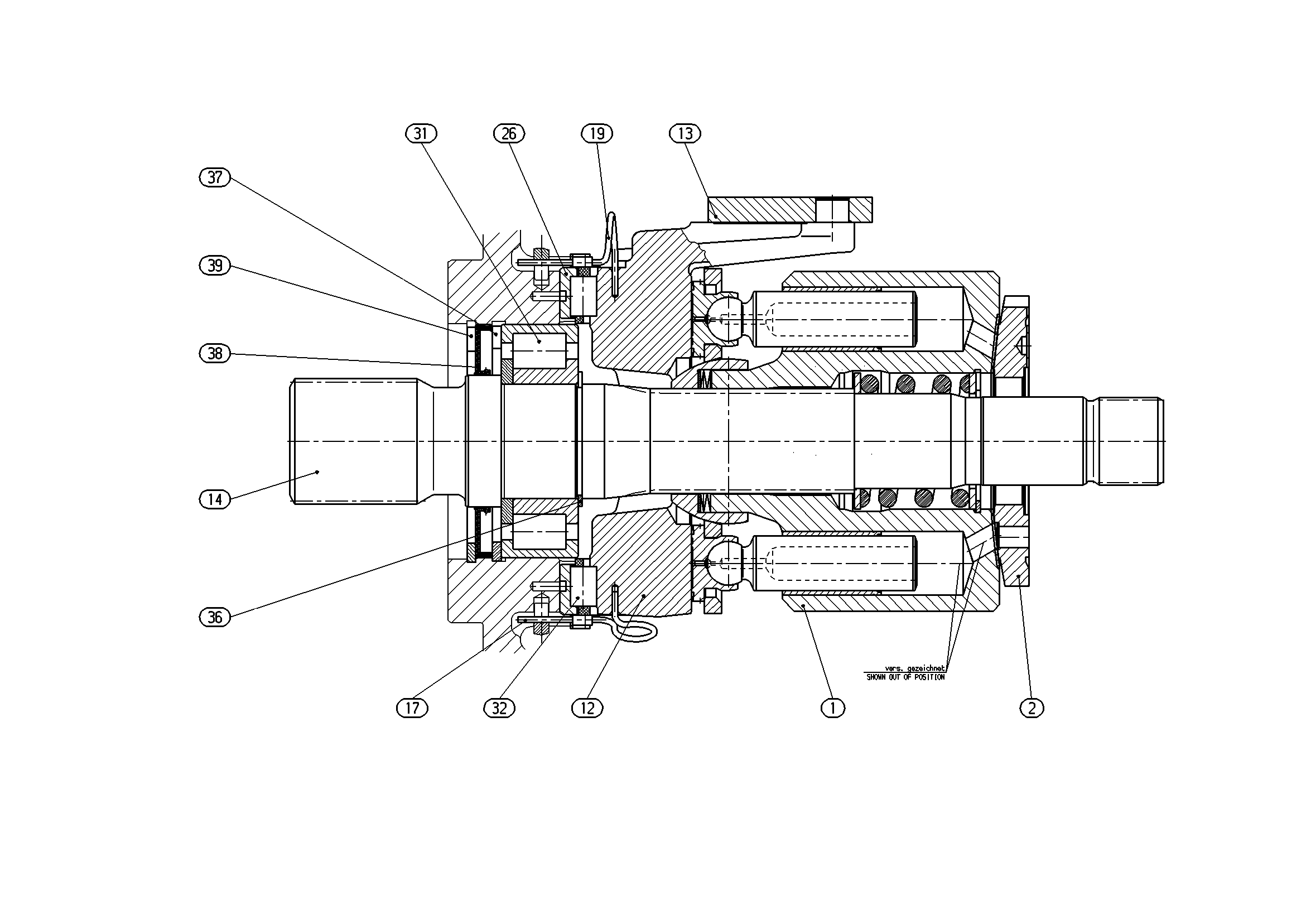

ROTARY GROUPR902199965
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902105283 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902195232 | CONTROL PLATE, RIGHT-HAND ROTATION | 1 | ||
| R909445149 | CRADLE | 1 | ||
| R909449034 | SLIDER Assembly parts list →L | 1 | ||
| R909921726 | DRIVE SHAFT | 1 | ||
| R902108944 | WIRE | 1 | ||
| R902132729 | WIRE | 1 | ||
| R902066595 | BEARING SHELL PAIR | 1 | ||
| 31 | R909157194 | CYL. ROLLER BEARING | 1 | |
| R909830146 | CAGE PAIR | 1 | ||
| R909150122 | RETAINING RING | 1 | ||
| R909154528 | RETAINING RING | 1 | ||
| R909830979 | SHAFT SEALING RINGD | 1 | ||
| R902600142 | RETAINING RING | 1 |
