Assembly

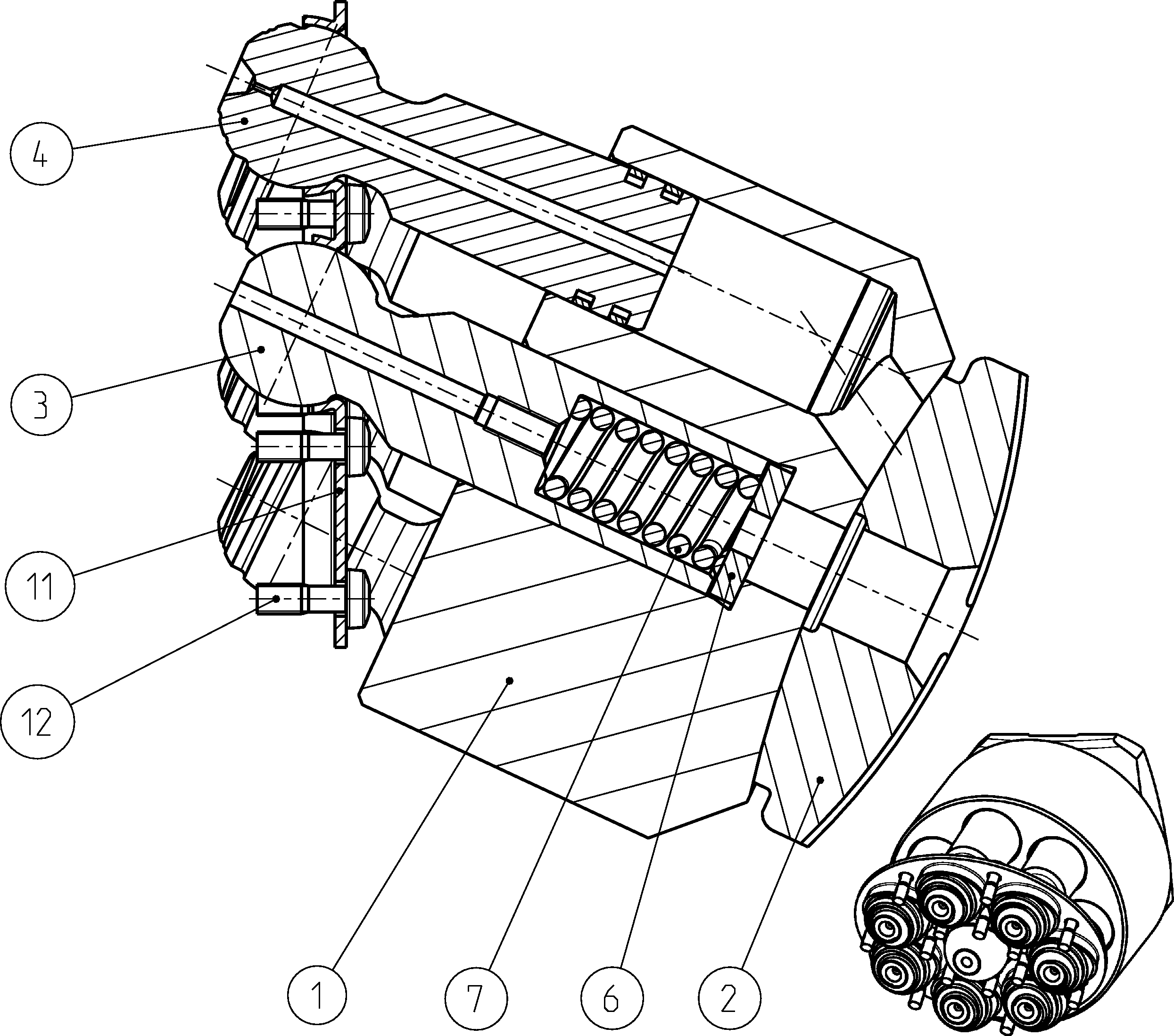

ROTARY GROUPR902200233
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902196939 | CYLINDER | 1 | ||
| R902196982 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R909921751 | CENTER PIN | 1 | ||
| R902021901 | PISTON | 7 | ||
| R902110219 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R909921752 | COMPRESSION SPRING | 1 | ||
| R902072551 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 14 |
