Assembly

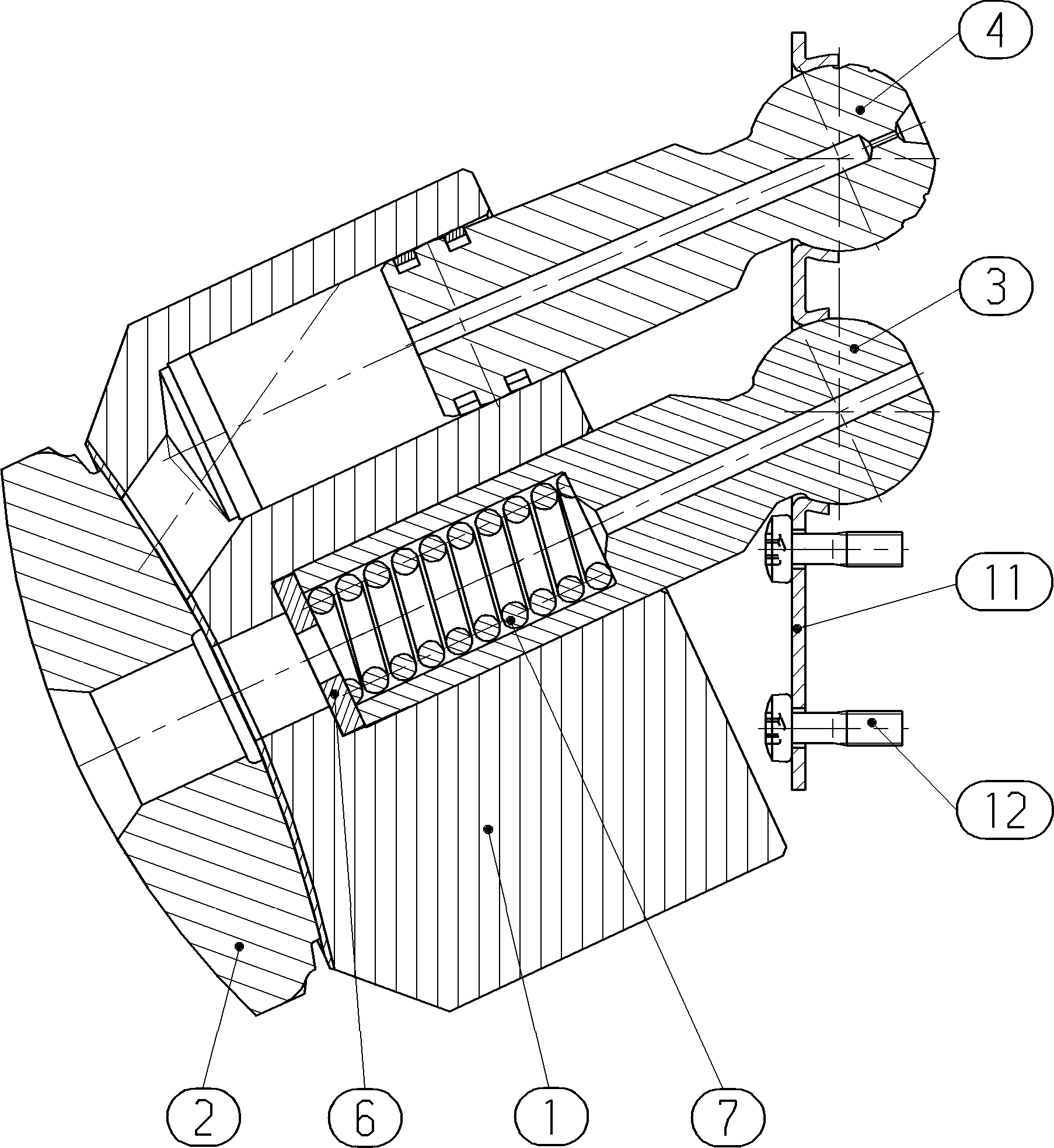

ROTARY GROUPR902200344
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909421288 | CYLINDER | 1 | ||
| R902261955 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R909921524 | CENTER PIN | 1 | ||
| R902021903 | PISTON | 7 | ||
| R902078725 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R909921541 | COMPRESSION SPRING | 1 | ||
| R902024999 | RETAINING PLATE | 1 | ||
| R902602493 | PAN-HEAD SCREW | 14 |
