Assembly

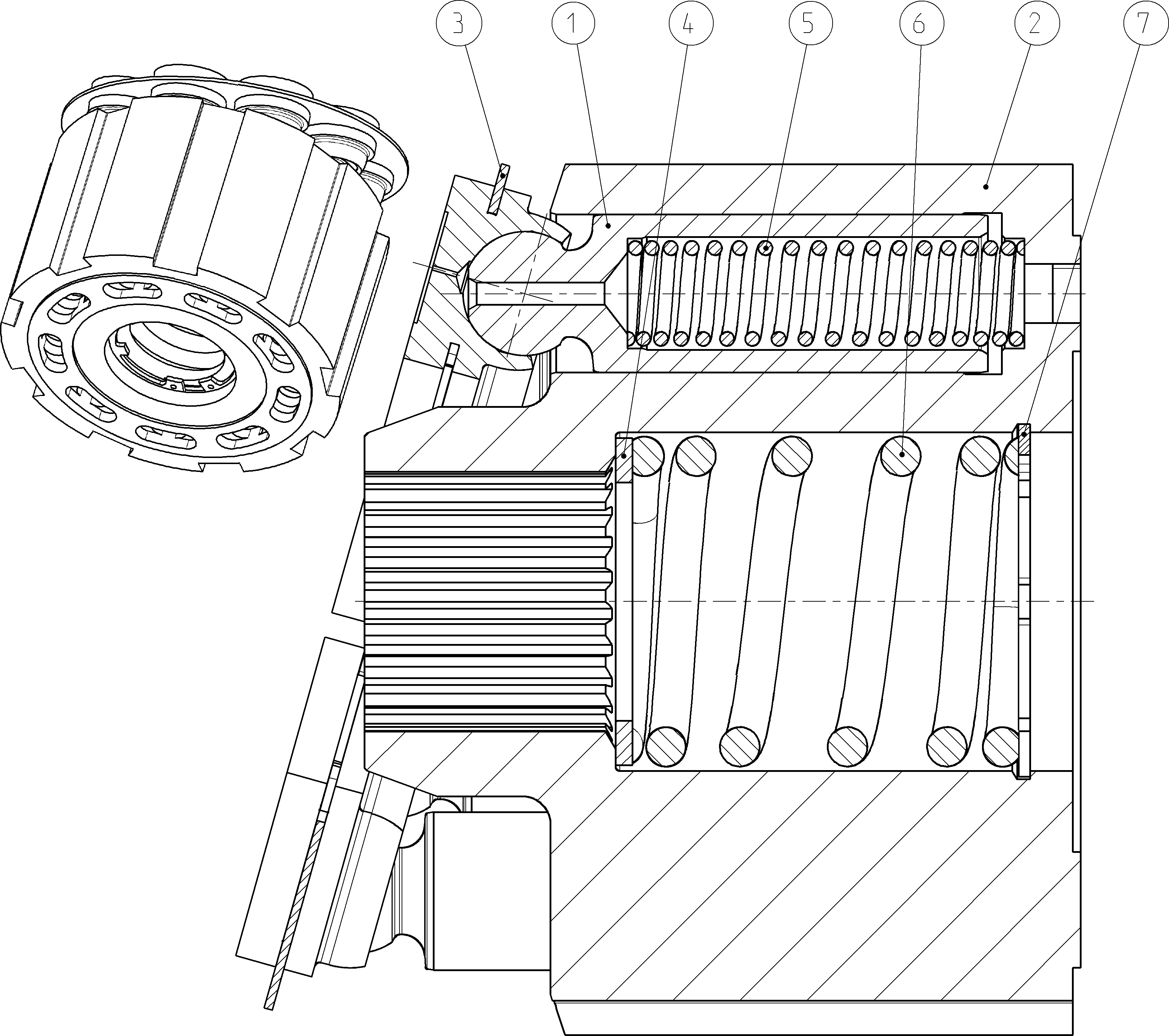

ROTARY GROUPR902202933
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902146528 | PISTON PAD | 9 | ||
| R902202600 | CYLINDER | 1 | ||
| R902192645 | RETAINING DISK | 1 | ||
| R902167146 | WASHER | 1 | ||
| R902200966 | COMPRESSION SPRING | 9 | ||
| R913008468 | RETAINING RING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902146528 | PISTON PAD | 9 | ||
| R902202600 | CYLINDER | 1 | ||
| R902192645 | RETAINING DISK | 1 | ||
| R902167146 | WASHER | 1 | ||
| R902200966 | COMPRESSION SPRING | 9 | ||
| R913008468 | RETAINING RING | 1 |
