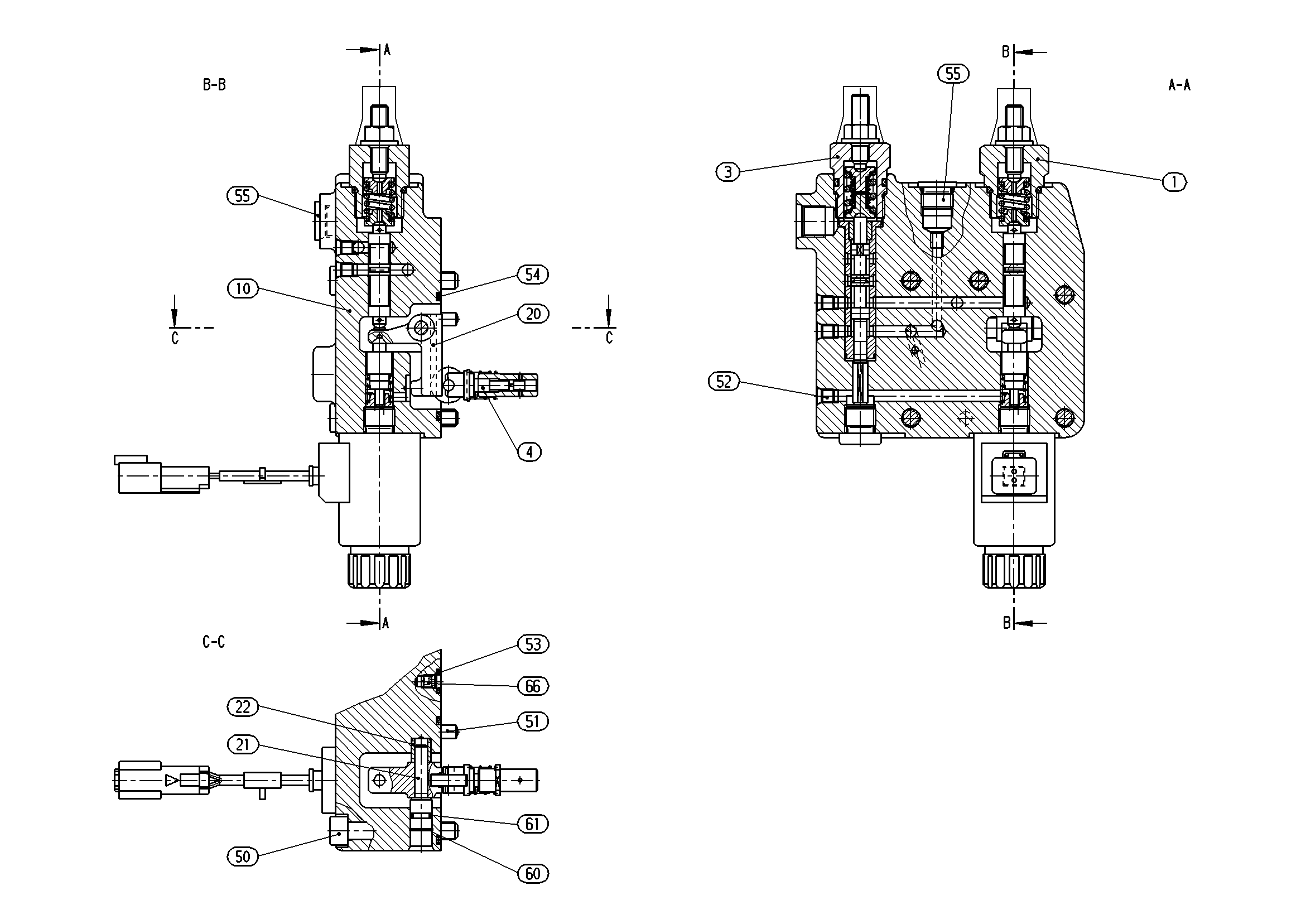

Assembly
REGULATORR902202997
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902044039 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902069146 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902025144 | MEASURING PISTON Assembly parts list →L | 1 | ||
| R902068315 | CONTROL HOUSING | 1 | ||
| R909445555 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 9 | ||
| R902602890 | R-RING | 3 | ||
| R902600656 | O-RING | 1 | ||
| R909153371 | SCREW PLUG | 2 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| R909156490 | NOZZLE | 1 |
