Assembly

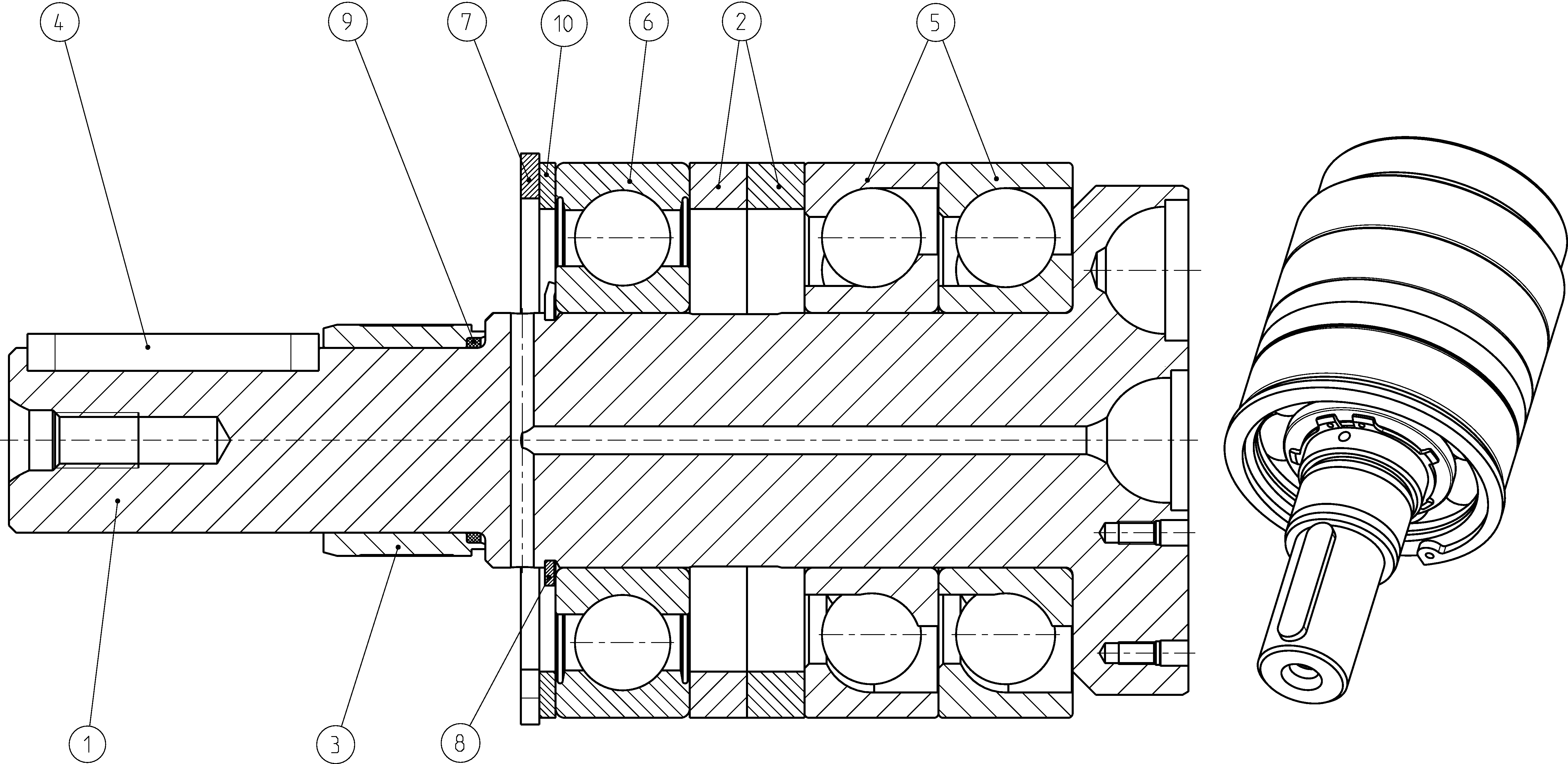

DRIVE SHAFTR902203767
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902203724 | DRIVE SHAFT | 1 | ||
| R902203765 | SHIM RING Assembly parts list →L | 2 | ||
| R909444412 | BUSHING | 1 | ||
| R909083994 | PARALLEL KEY | 1 | ||
| R913032714 | ANG. CONTACT BALL BEARING | 2 | ||
| R913023200 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909831265 | RETAINING RING | 1 | ||
| R913020815 | RETAINING RING | 1 | ||
| R909085560 | O-RINGD | 1 | ||
| R909449420 | SUPPORTING DISC | 1 |
