Assembly

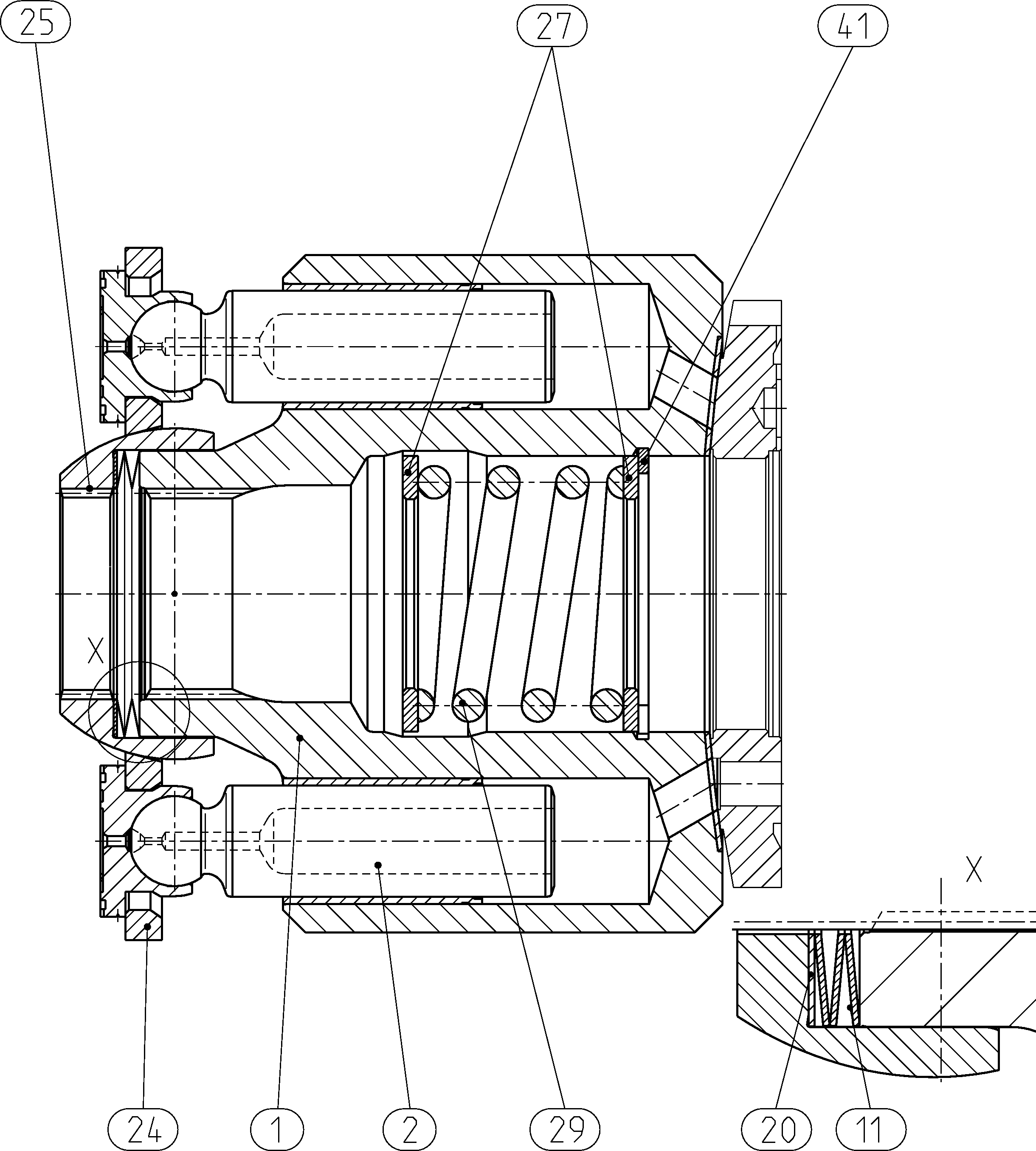

ROTARY GROUPR902205430
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902105527 | CYLINDER | 1 | ||
| R902226757 | PISTON PAD | 9 | ||
| R902192959 | CUP-SPRING STACK | 1 | ||
| R909432505 | SHIM RING | 1 | ||
| R909432506 | SHIM RING | 1 | ||
| R909432507 | SHIM RING | 1 | ||
| R909432508 | SHIM RING | 1 | ||
| R902205456 | RETAINING PLATE | 1 | ||
| R902152626 | RETAINING BALL | 1 | ||
| R902086428 | WASHER | 2 | ||
| R909435465 | COMPRESSION SPRING | 1 | ||
| R909083405 | RETAINING RING | 1 |
