Assembly

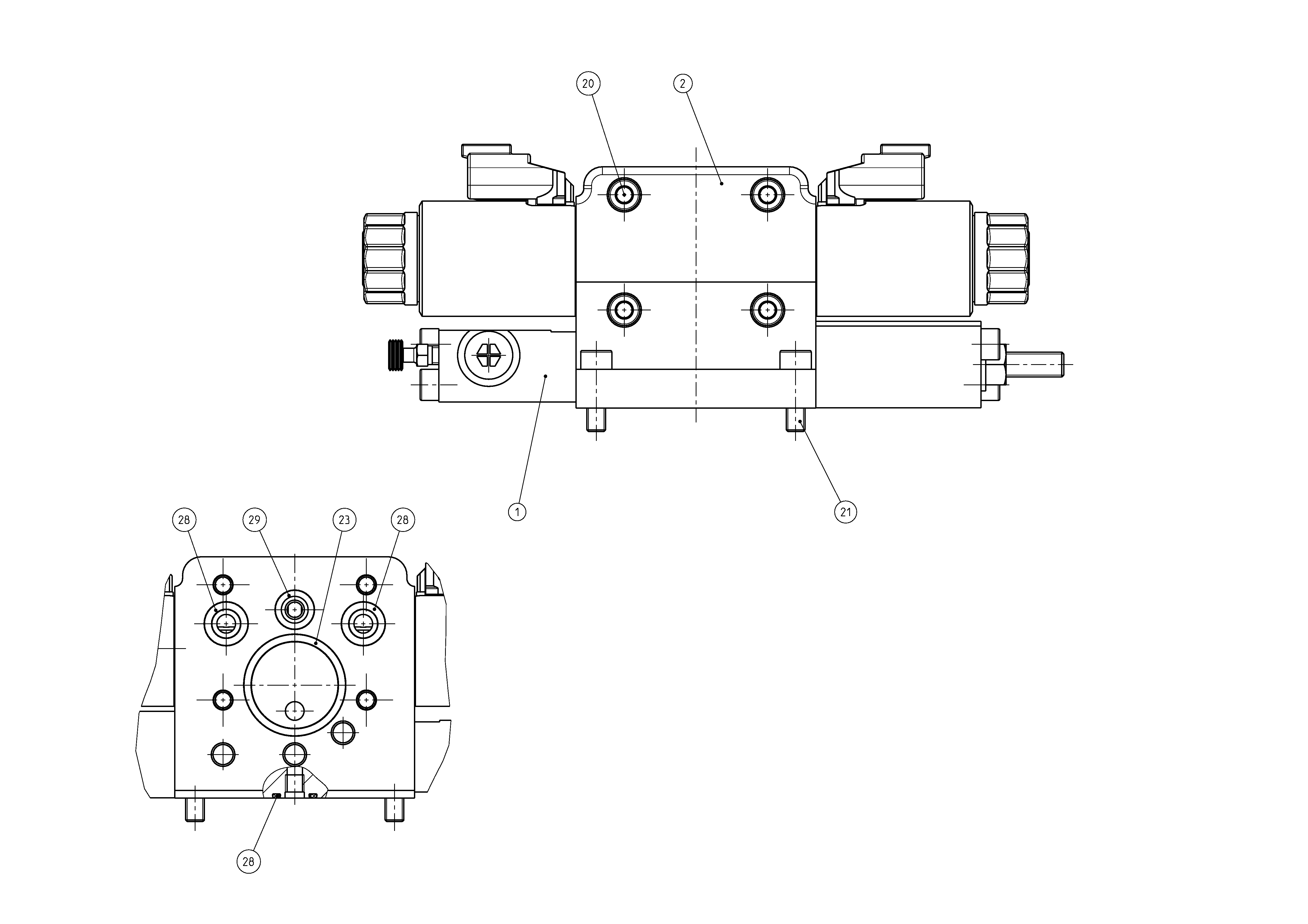

INCHING VALVER902206102
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902053357 | INCHING DEVICE Assembly parts list →L | 1 | |
| R902102094 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| 20 | R909083028 | SOCKET HEAD CAP SCREW | 4 | |
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600641 | O-RING | 1 | ||
| R909086332 | O-RING | 3 | ||
| R909085709 | O-RING | 1 |
