Assembly

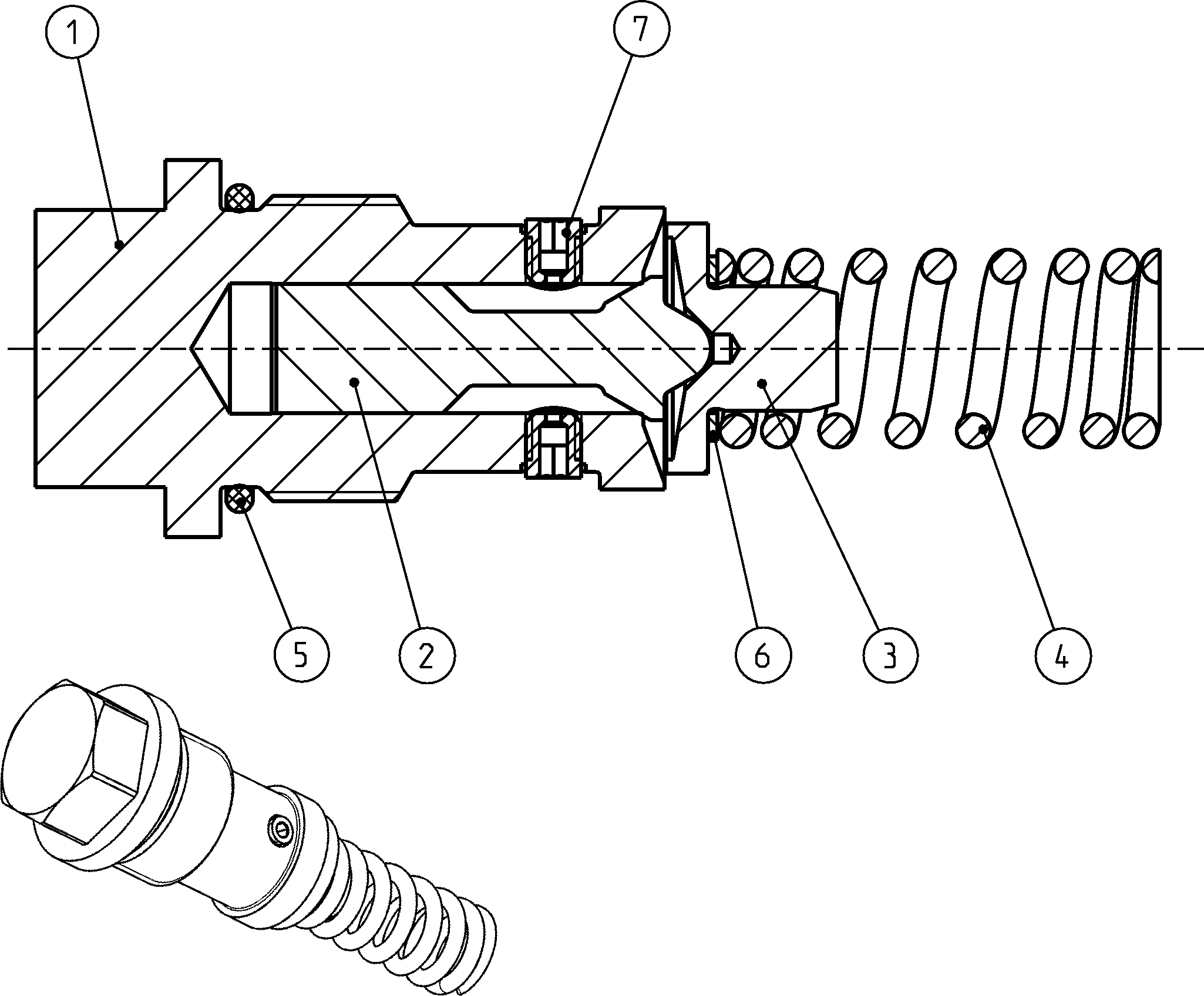

PRESSURE RELIEF VALVER902206249
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206248 | SCREW PLUG | 1 | ||
| R902089073 | VALVE SPOOL | 1 | ||
| R902089071 | SPRING DISK | 1 | ||
| R902113637 | COMPRESSION SPRING | 1 | ||
| R902600900 | O-RINGD | 1 | ||
| R909153380 | SHIM RING | 1 | ||
| R909154727 | SHIM RING | 1 | ||
| R909154296 | SHIM RING | 1 | ||
| R902603307 | SUPPORTING DISC | 1 | ||
| R902107377 | SUPPORTING DISC | 1 | ||
| R902107378 | SUPPORTING DISC | 1 | ||
| R909156496 | NOZZLE | 2 |
