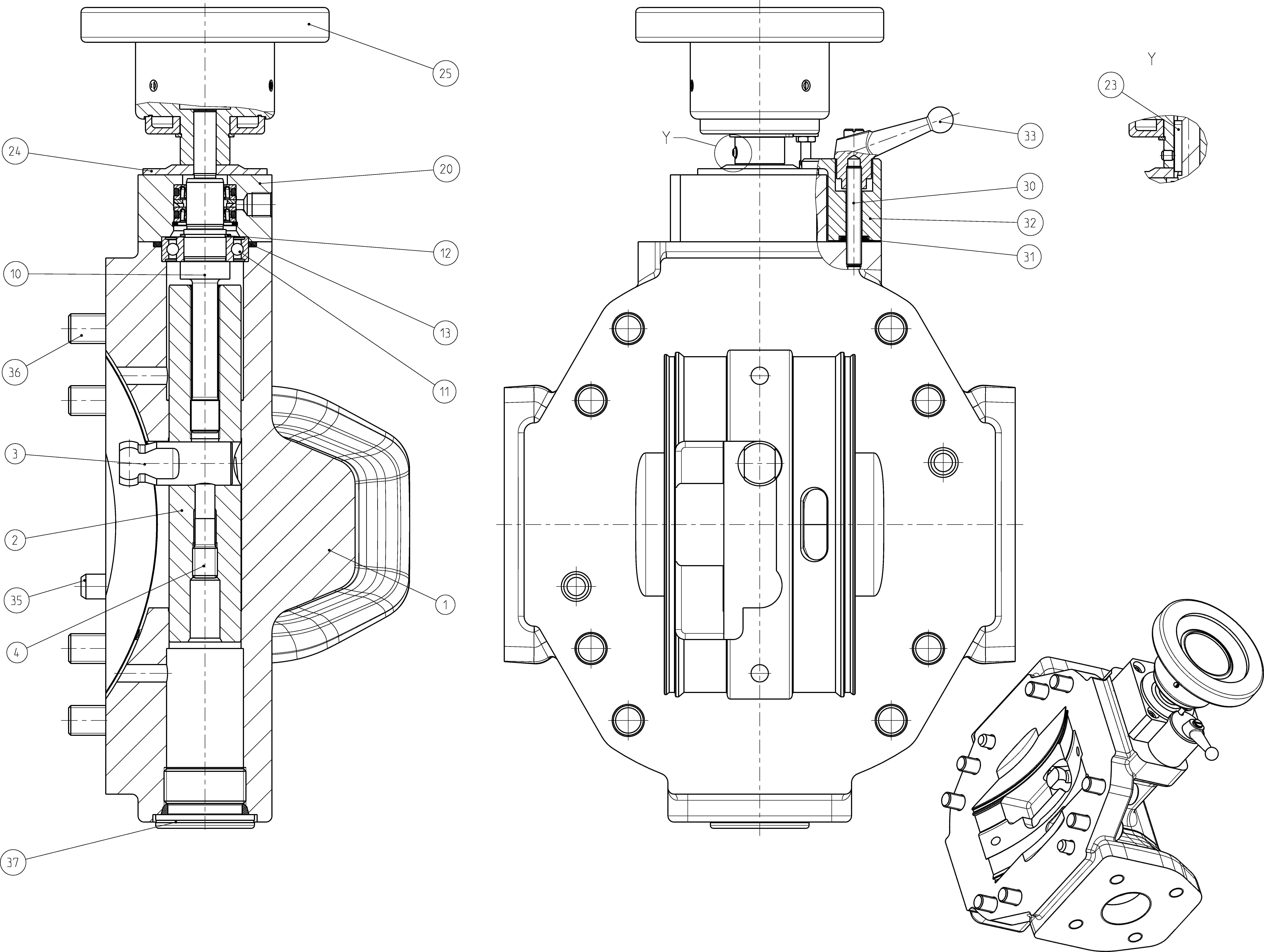

Assembly
CONTROLR902206537
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902203694 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902203622 | POSITIONING PISTON | 1 | ||
| R902203620 | POSITIONING STUD | 1 | ||
| R902203619 | SETSCREW | 1 | ||
| R902203621 | ADJUSTMENT SPINDLE | 1 | ||
| R902602036 | DEEP-GROOVE BALL BEARING | 1 | ||
| R913004029 | RETAINING RING | 1 | ||
| R902600667 | O-RINGD | 1 | ||
| R902231930 | COVER Assembly parts list →L | 1 | ||
| R909430627 | PARALLEL KEY | 1 | ||
| R909430630 | CLAMPING DISC | 1 | ||
| R902138392 | HANDWHEEL Assembly parts list →L | 1 | ||
| R902149487 | SETSCREW | 1 | ||
| R909411160 | DISC SPRING | 4 | ||
| R902138314 | EXPANSION PIECE | 1 | ||
| R909830246 | CLAMPING LEVER | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 8 | ||
| R902602115 | SCREW PLUG | 1 |
