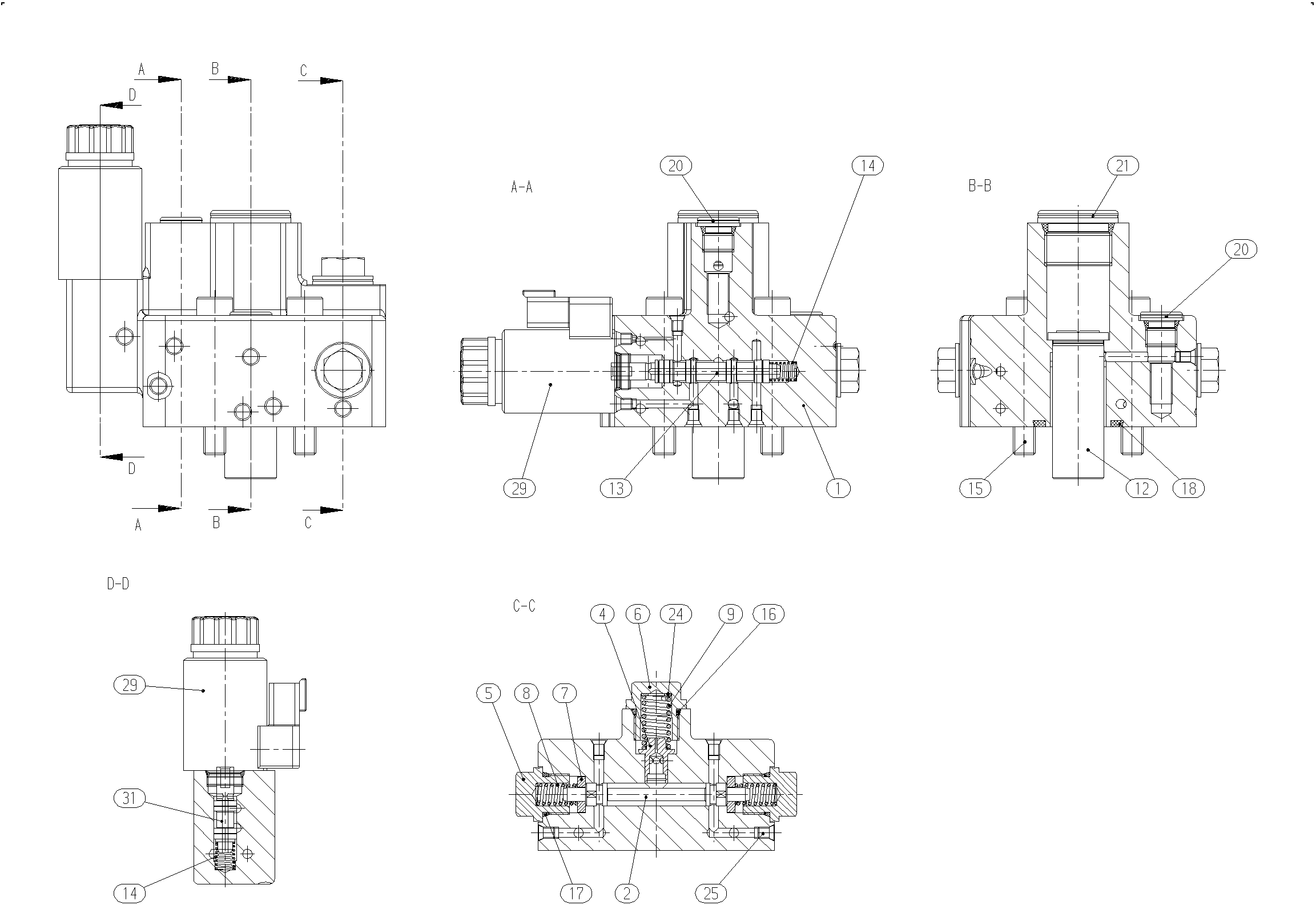

Assembly
STROKE LIMITERR902206742
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902134581 | VALVE HOUSING | 1 | ||
| R902000156 | FLUSHING PISTON | 1 | ||
| R909430234 | VALVE SPOOL | 1 | ||
| R902242728 | SCREW PLUG | 2 | ||
| R902242727 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R902138332 | PISTON | 1 | ||
| R902068543 | CONTROL PISTON | 1 | ||
| R902045064 | COMPRESSION SPRING | 2 | ||
| R909084378 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830862 | O-RINGD | 1 | ||
| R909830860 | O-RINGD | 2 | ||
| R909085578 | O-RINGD | 1 | ||
| R909831482 | SCREW PLUGD | 2 | ||
| R902603845 | SCREW PLUG | 1 | ||
| R909157079 | SHIM RING | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 17 | ||
| R902601998 | SWITCHING SOLENOID | 2 | ||
| R902206594 | CONTROL PISTON | 1 |
