Assembly

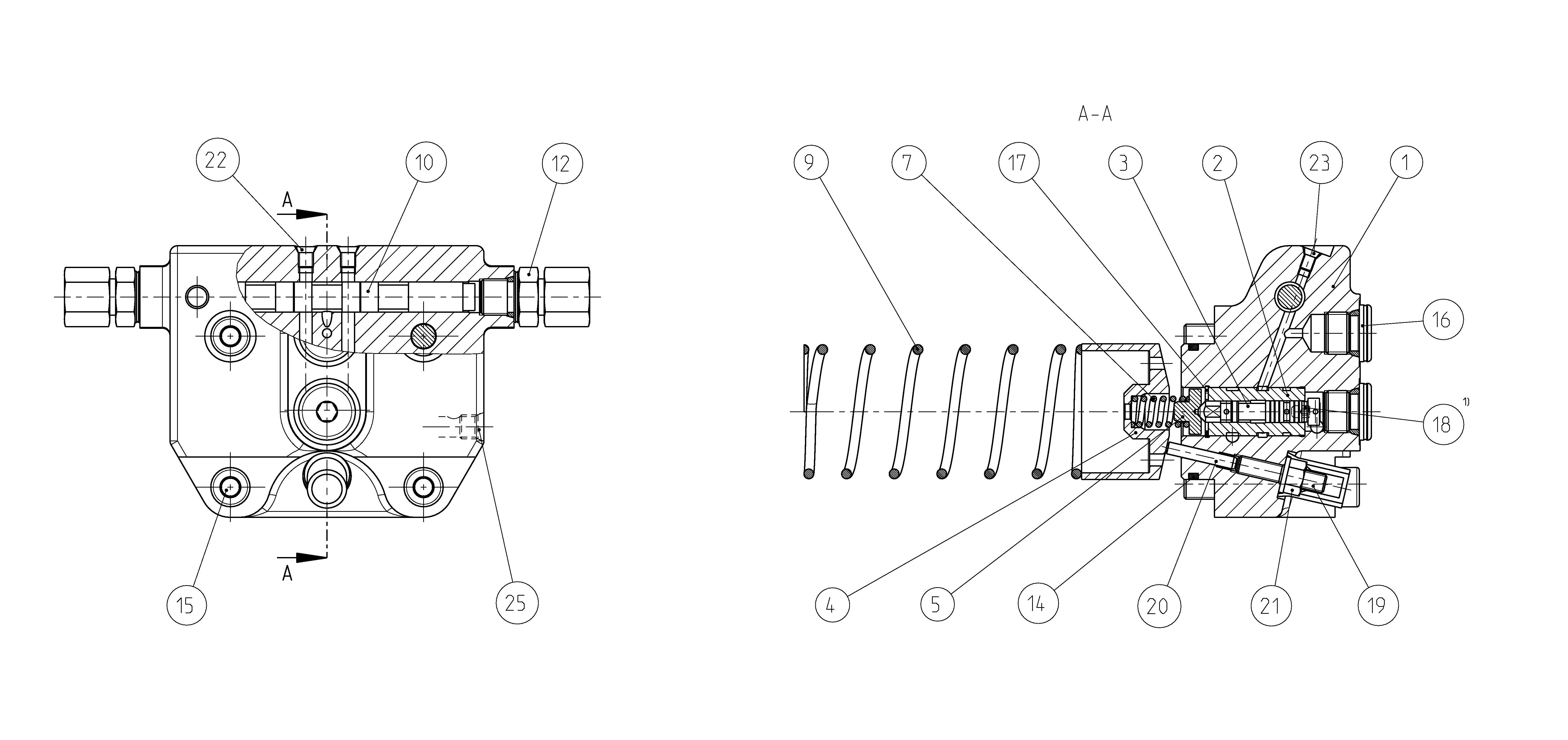

CONTROL PARTR902206748
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902132098 | CONTROL HOUSING | 1 | |
| R909424258 | CONTROL SLEEVE | 1 | ||
| R909921245 | CONTROL PISTON | 1 | ||
| 4 | R909651119 | ADJUSTING BUSHING | 1 | |
| R909921339 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| 9 | R909921342 | COMPRESSION SPRING | 1 | |
| 10 | R909420720 | SLIDE | 1 | |
| 12 | R913004137 | THREADED FASTENER | 2 | |
| 14 | R909085560 | O-RINGD | 1 | |
| R909831514 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R909831482 | SCREW PLUGD | 2 | |
| 17 | R909083381 | RETAINING RING | 1 | |
| 18 | R902216406 | PLUG | 1 | |
| 19 | R909152427 | SETSCREW | 1 | |
| 20 | R909087756 | STRAIGHT PIN | 1 | |
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 8 | |
| 23 | R900078091 | DOUBLE BREAK-OFF PLUG | 1 | |
| 25 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
