Assembly

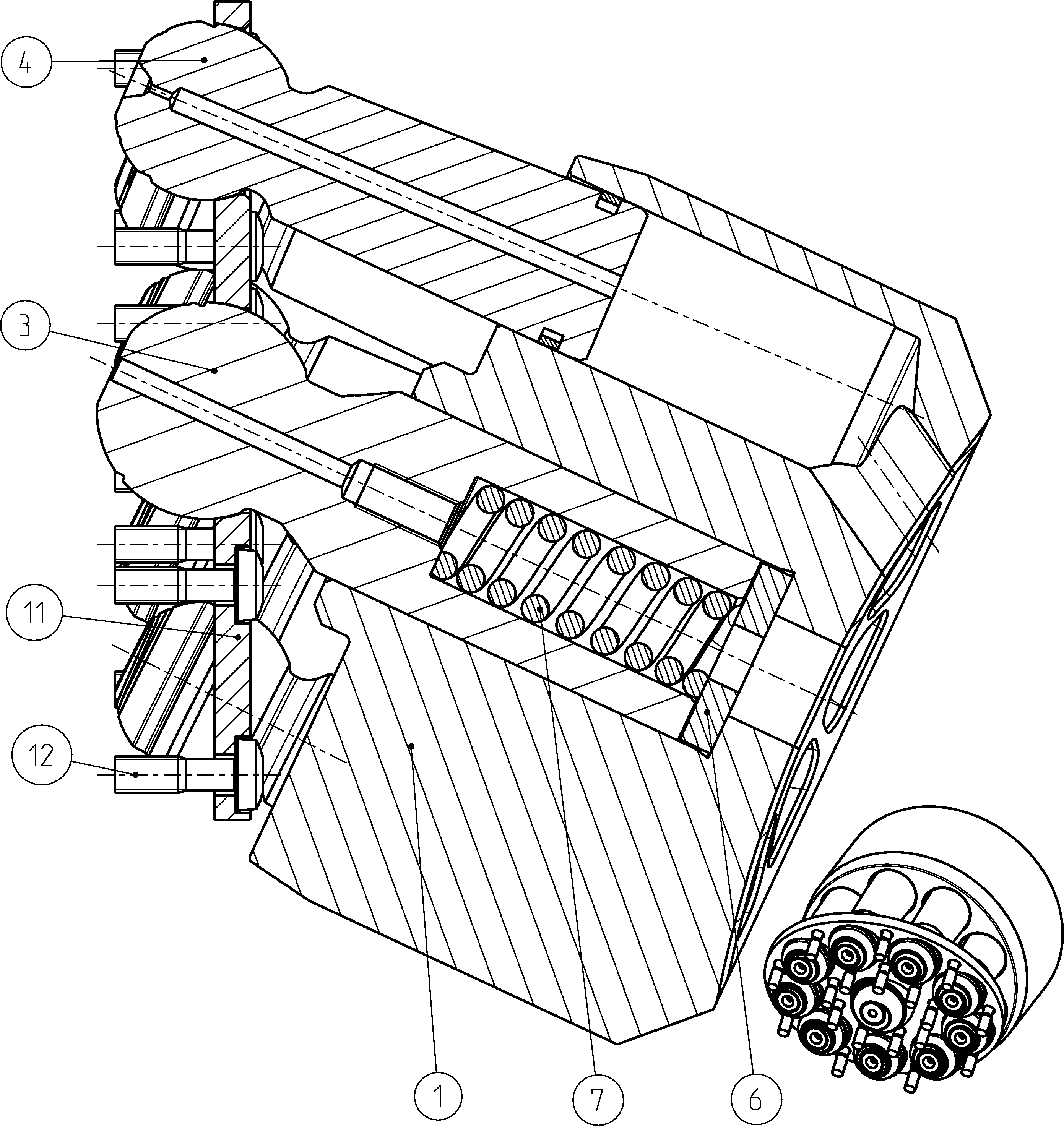

ROTARY GROUPR902209733
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902227065 | CYLINDER | 1 | ||
| R902261553 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R902203744 | CENTER PIN | 1 | ||
| R902194362 | PISTON | 9 | ||
| R902121827 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902049270 | COMPRESSION SPRING | 1 | ||
| R902257046 | RETAINING PLATE | 1 | ||
| R902602395 | PAN-HEAD SCREW | 18 |
