Assembly

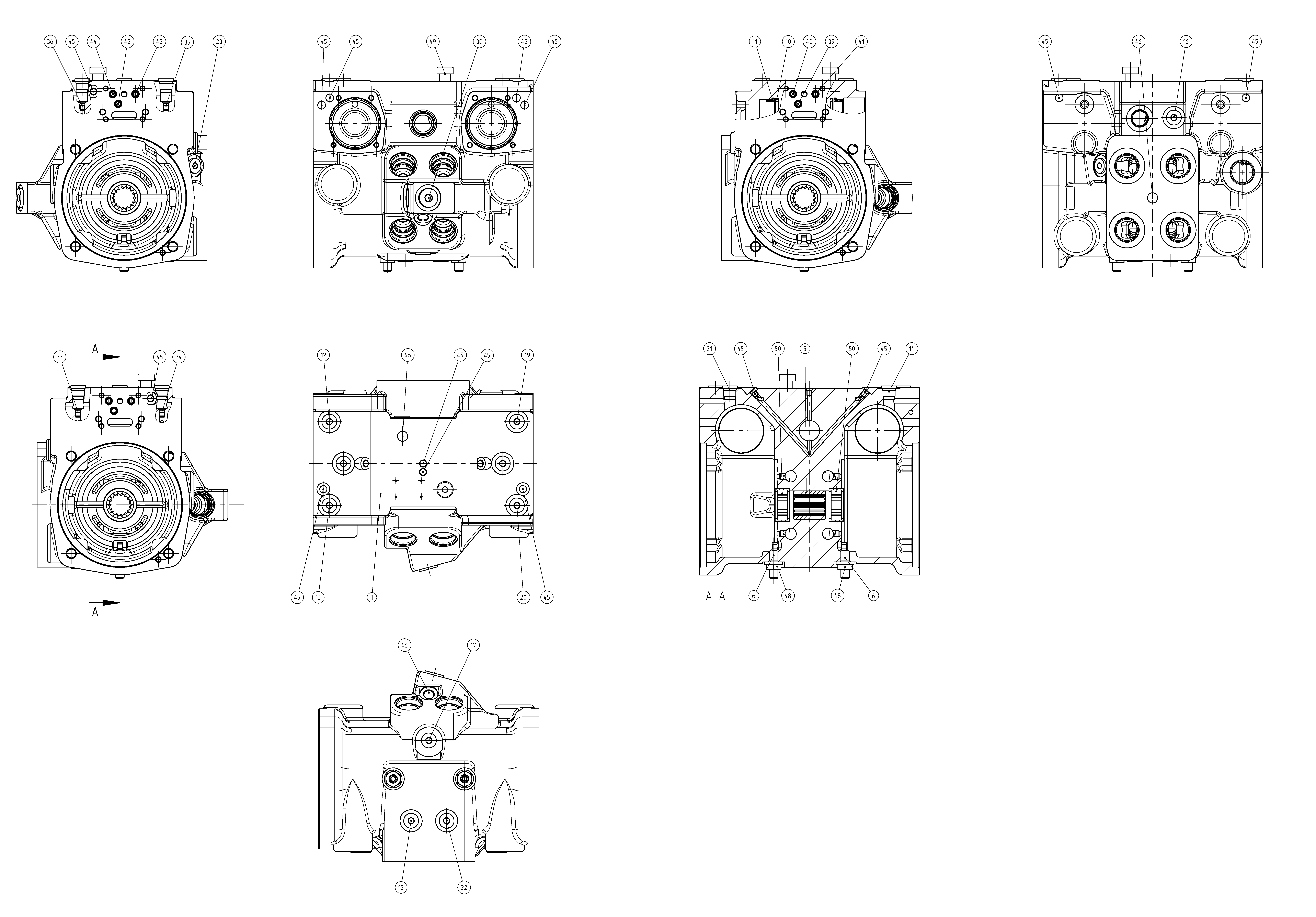

PUMP HOUSINGR902210006
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902201156 | PUMP HOUSING | 1 | ||
| R902195052 | THROUGH DRIVE COUPLING | 1 | ||
| R902049734 | ECCENTRIC SCREW | 2 | ||
| R902602138 | ROD SEAL | 4 | ||
| R902603689 | ROD GUIDANCE RING | 4 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R902603777 | FILTER | 1 | ||
| R902603777 | FILTER | 1 | ||
| R902603777 | FILTER | 1 | ||
| R902603777 | FILTER | 1 | ||
| R902603777 | FILTER | 1 | ||
| R902603777 | FILTER | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909153271 | SEALING NUTD | 2 | ||
| R902602990 | SOCKET HEAD CAP SCREW | 1 | ||
| R909831337 | CYL. ROLLER BEARING | 2 |
