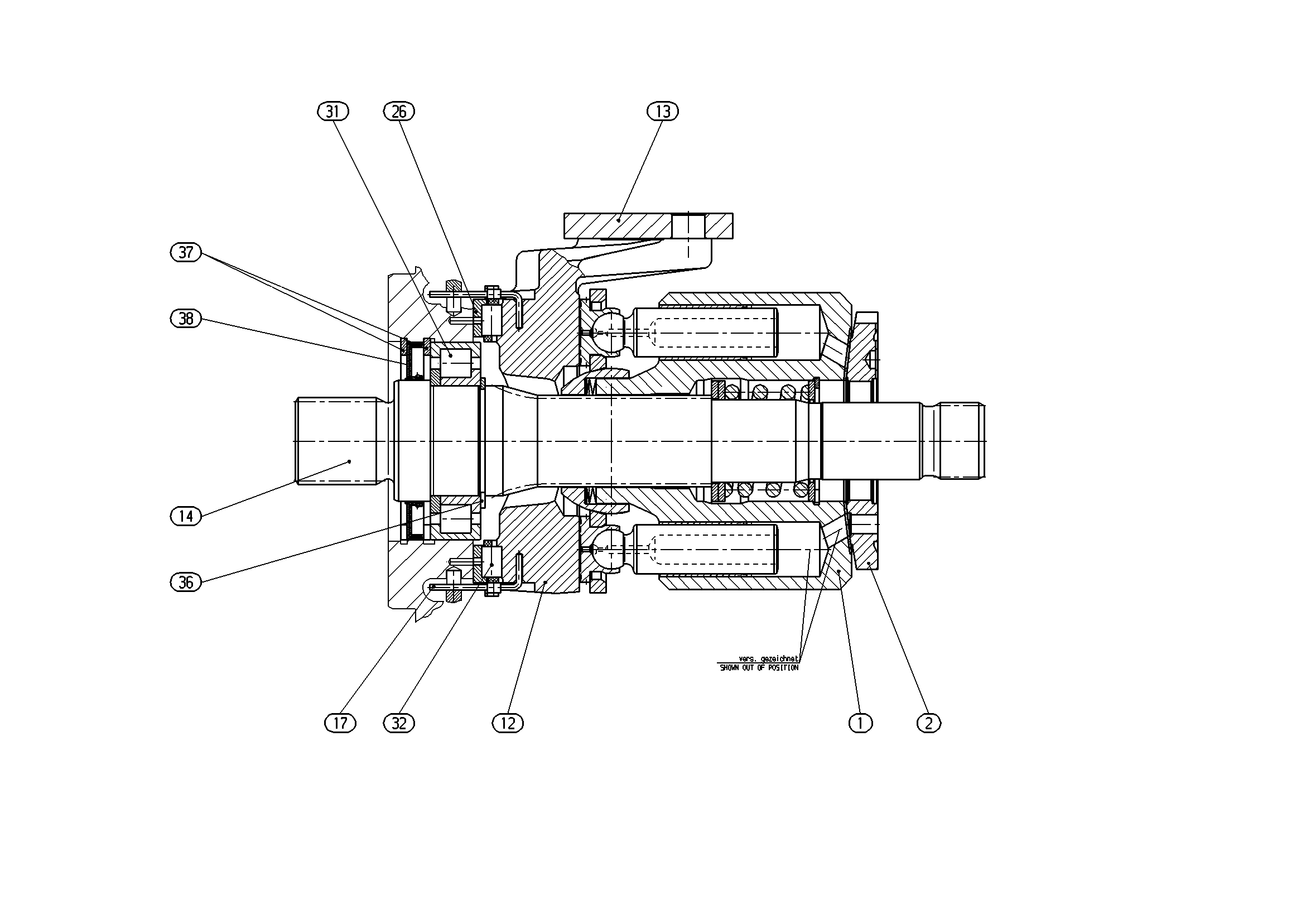

Assembly
ROTARY GROUPR902210243
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902105942 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902195234 | CONTROL PLATE, LEFT-HAND ROTATION | 1 | ||
| R909445122 | CRADLE | 1 | ||
| R909449034 | SLIDER Assembly parts list →L | 1 | ||
| 14 | R909921708 | DRIVE SHAFT | 1 | |
| 17 | R909421418 | WIRE | 2 | |
| R902066594 | BEARING SHELL PAIR | 1 | ||
| R902603914 | CYL. ROLLER BEARING | 1 | ||
| 32 | R909830578 | CAGE PAIR | 1 | |
| R909084416 | RETAINING RING | 1 | ||
| R902600002 | RETAINING RING | 2 | ||
| R902601821 | ROTARY SHAFT LIP SEALD | 1 |
