Assembly

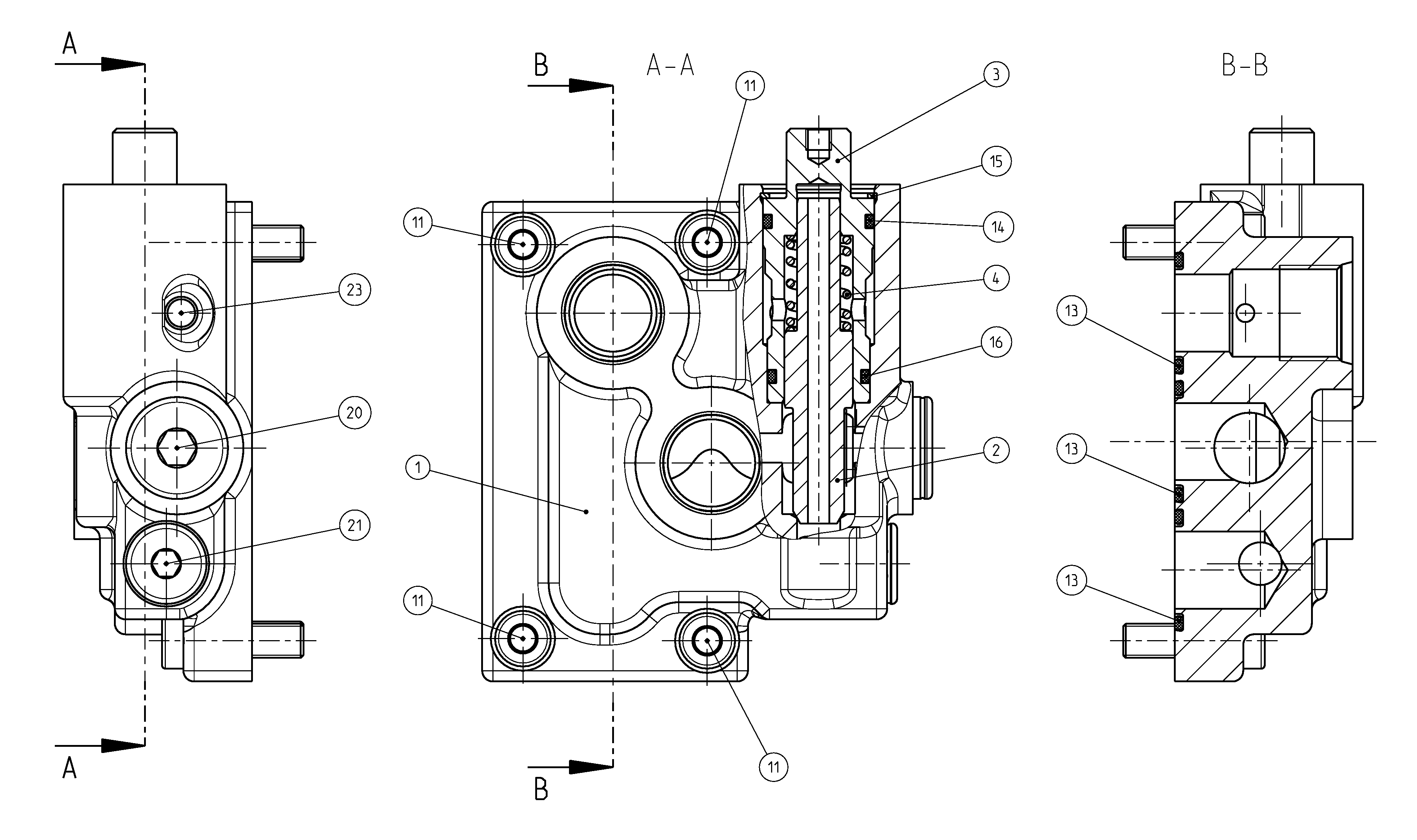

COLD-START VALVER902210434
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902210423 | VALVE PLATE | 1 | ||
| R902026590 | VALVE SPOOL | 1 | ||
| R902066092 | PISTON GUIDE | 1 | ||
| R902159741 | COMPRESSION SPRING | 1 | ||
| R909083038 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083761 | O-RINGD | 3 | ||
| R909083760 | O-RINGD | 1 | ||
| R909083388 | RETAINING RING | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R902602698 | SCREW PLUG | 1 | ||
| R902603130 | SCREW PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
