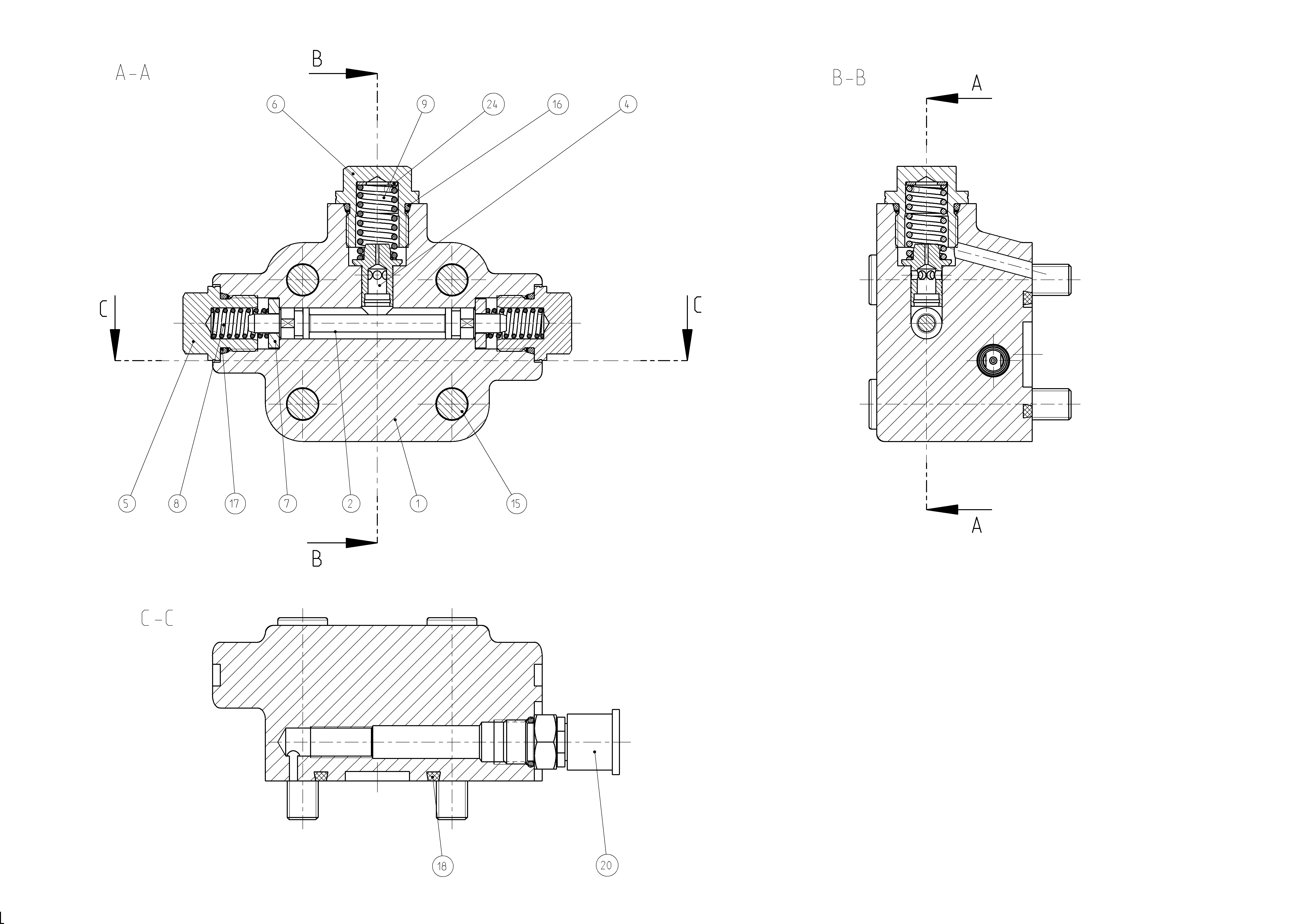

Assembly
FLUSH/BOOST PRESSURE VALVER902210754
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902117644 | VALVE HOUSING | 1 | ||
| R902000157 | FLUSHING PISTON | 1 | ||
| R909430234 | VALVE SPOOL | 1 | ||
| R902242728 | SCREW PLUG | 2 | ||
| R902242727 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902016952 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R909083094 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830862 | O-RINGD | 1 | ||
| R909830860 | O-RINGD | 2 | ||
| R909154053 | O-RINGD | 1 | ||
| R909831973 | CONNECTOR PLUG | 1 | ||
| R909157079 | SHIM RING | 1 |
