Assembly

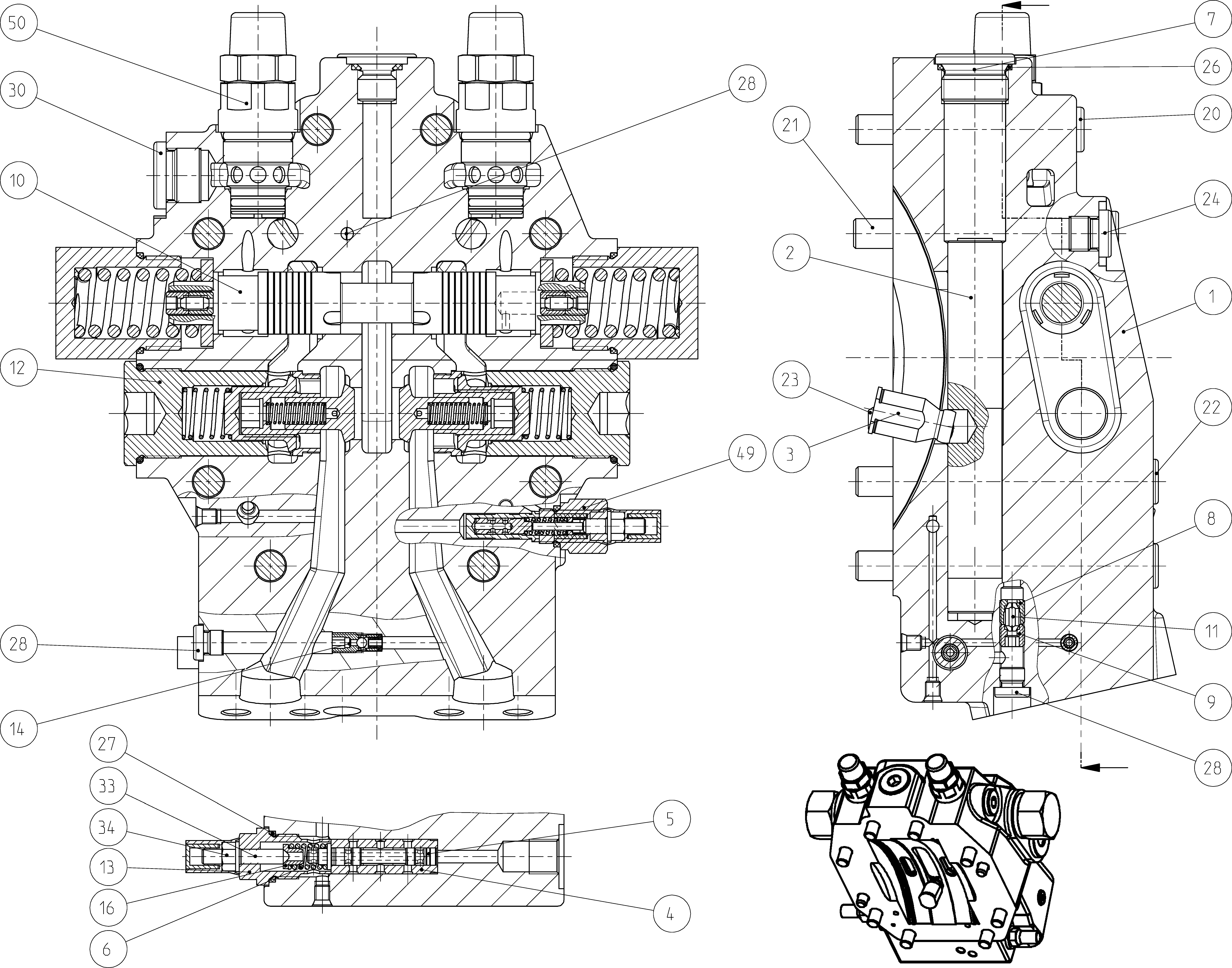

COVER PLATER902210935
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902191533 | COVER PLATE | 1 | ||
| R909922089 | POSITIONING PISTON | 1 | ||
| R909650146 | POSITIONING STUD | 1 | ||
| R909922105 | CONTROL SLEEVE | 1 | ||
| R909651115 | CONTROL PISTON | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909443868 | SCREW PLUG | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R902196992 | BRAKE VALVE Assembly parts list →L | 1 | ||
| R909400262 | THROTTLE PIN | 1 | ||
| R902038537 | VALVE Assembly parts list →L | 2 | ||
| R902009713 | SCREW PLUG | 1 | ||
| R902042017 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909445334 | SPRING DISK | 1 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 2 | ||
| R909832082 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083106 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909153930 | SCREW PLUGD | 3 | ||
| 25 | R909156649 | SCREW PLUGD | 2 | |
| R909152694 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 1 | ||
| R909156649 | SCREW PLUG | 1 | ||
| R909156654 | SCREW PLUGD | 1 | ||
| R909157096 | SETSCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R902006676 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| R902603806 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 |
