Assembly

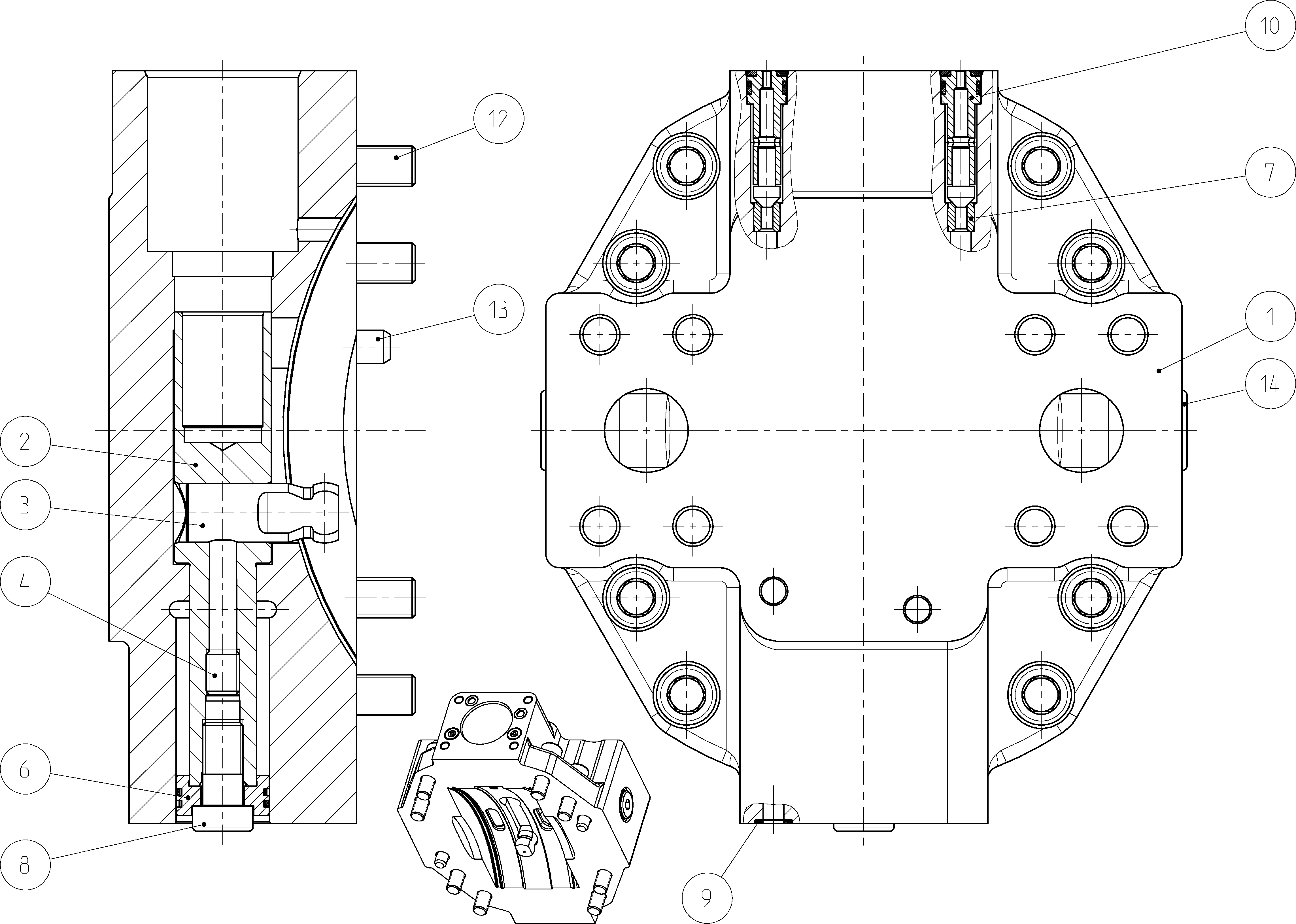

COVER PLATER902212414
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902212544 | COVER PLATE Assembly parts list →L | 1 | ||
| R902101481 | POSITIONING PISTON | 1 | ||
| R909422021 | POSITIONING STUD | 1 | ||
| R902101482 | SETSCREW | 1 | ||
| R902102905 | PISTON | 1 | ||
| R902209845 | BUSHING | 2 | ||
| R909831057 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085577 | O-RINGD | 6 | ||
| R902096781 | CHECK VALVE | 2 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909157040 | SCREW PLUG | 2 |
