Assembly

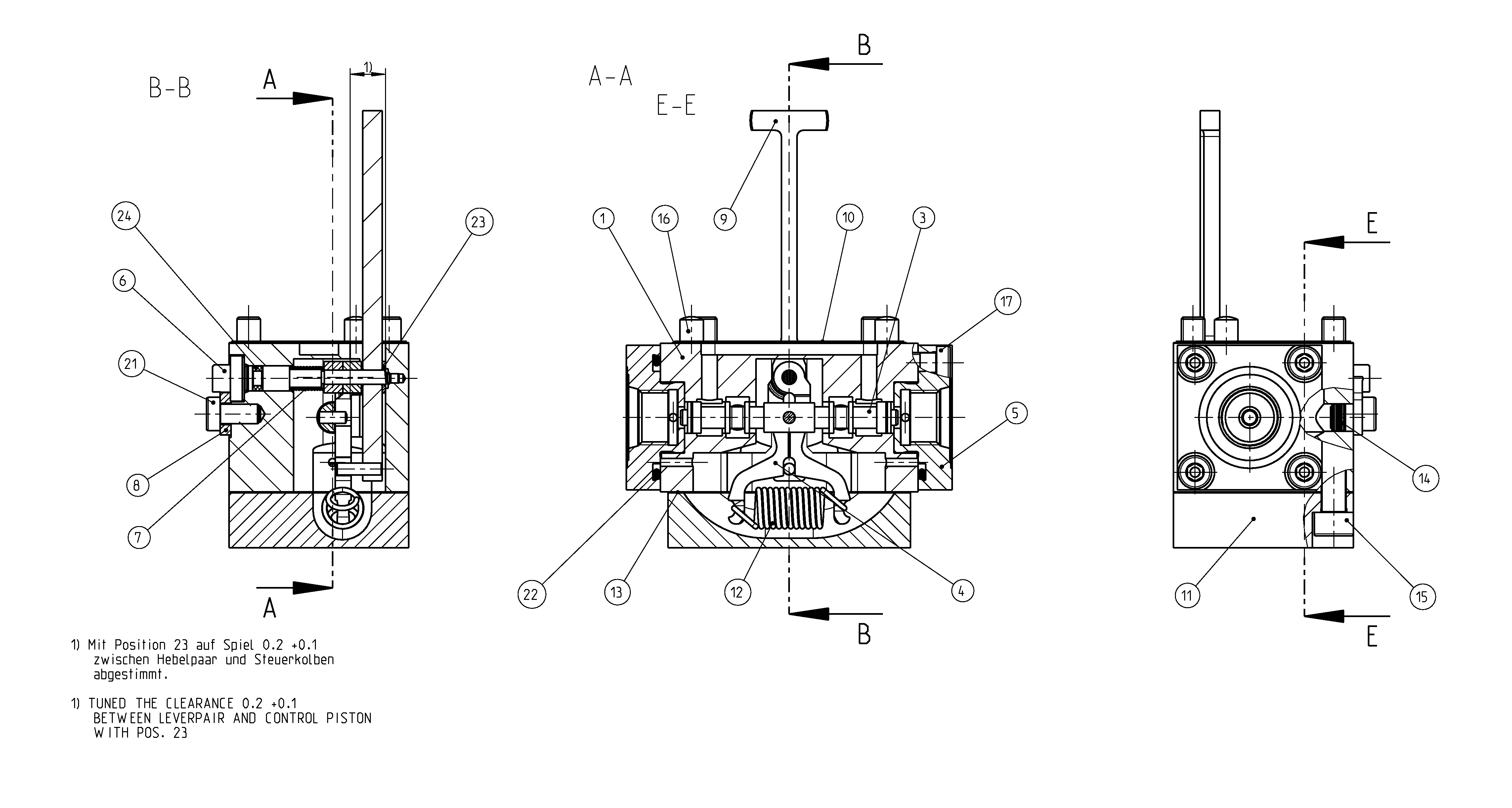

CONTROL MODULER902215761
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902115259 | HOUSING | 1 | ||
| R902115260 | CONTROL PISTON | 1 | ||
| R902168368 | LEVER PAIR | 1 | ||
| R902133551 | LOCATION PIECE | 2 | ||
| R902272777 | ECCENTRIC PIN | 1 | ||
| R902068165 | COMPRESSION SPRING | 1 | ||
| R902044854 | WASHER | 1 | ||
| R902107085 | FEEDBACK LEVER | 1 | ||
| R902603825 | SEALD | 1 | ||
| R902097197 | COVER | 1 | ||
| R902089589 | EXTENSION SPRING | 1 | ||
| R902097155 | SEALD | 1 | ||
| R902603686 | SEALING PLUG | 2 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 8 | ||
| R902601243 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083764 | O-RING | 2 | ||
| R902051252 | WASHER | 1 | ||
| R902051253 | WASHER | 1 | ||
| R902051254 | WASHER | 1 | ||
| R902051255 | WASHER | 1 | ||
| R902051256 | WASHER | 1 | ||
| R902064222 | WASHER | 1 | ||
| R909086301 | O-RINGD | 1 | ||
| 26 | R902105435 | WASHER | 1 | |
| 26 | R902105436 | WASHER | 1 | |
| 26 | R902105437 | WASHER | 1 | |
| 26 | R902105438 | WASHER | 1 | |
| 26 | R902105439 | WASHER | 1 | |
| 26 | R902105440 | WASHER | 1 |
