Assembly

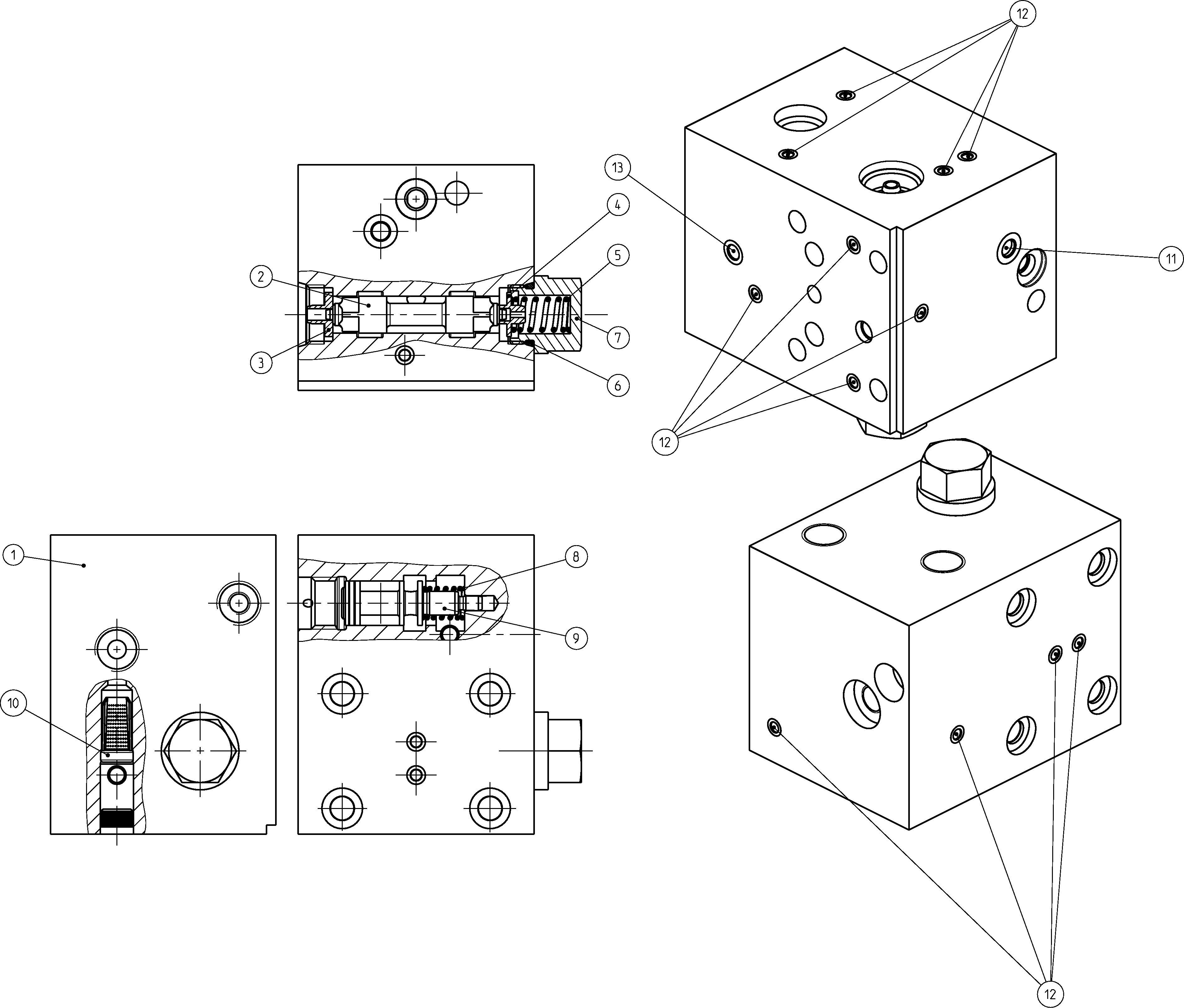

VALVE HOUSINGR902215809
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902215892 | HOUSING | 1 | ||
| R902028447 | CONTROL PISTON | 1 | ||
| R902139260 | SPRING DISK | 1 | ||
| R902152134 | SPRING DISK | 1 | ||
| R902236392 | COMPRESSION SPRING | 1 | ||
| R902600652 | O-RING | 1 | ||
| R902215813 | SCREW PLUG | 1 | ||
| R902239332 | COMPRESSION SPRING | 1 | ||
| R902190773 | CONTROL PISTON | 1 | ||
| R902603777 | FILTER | 1 | ||
| R902603691 | SEALING PLUG | 1 | ||
| R902603684 | SEALING PLUG | 12 | ||
| R902603686 | SEALING PLUG | 1 |
