Assembly

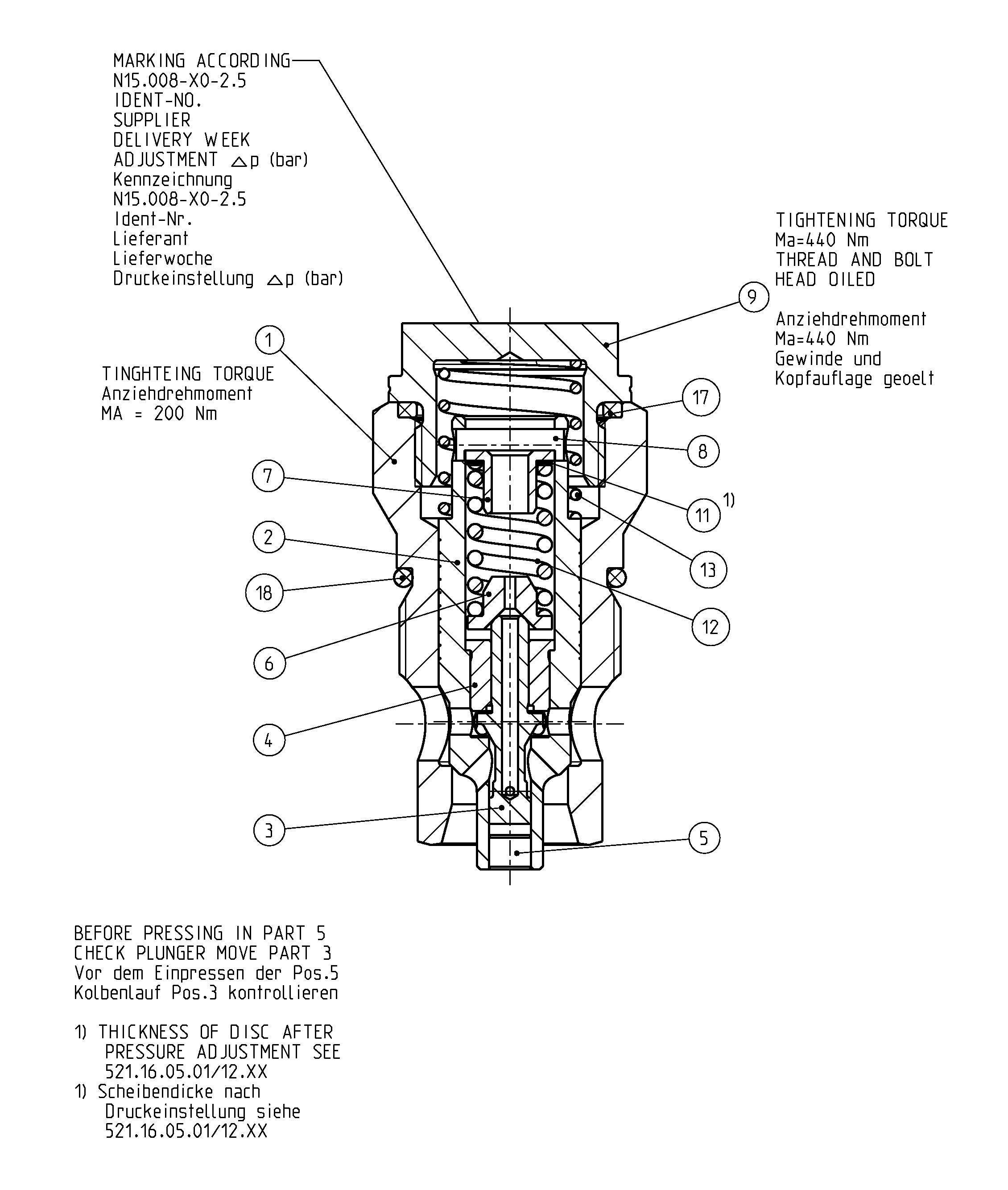

PRESSURE RELIEF VALVER902215910
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909409928 | VALVE BUSHING | 1 | ||
| R909409929 | PISTON | 1 | ||
| R909409818 | VALVE SPOOL | 1 | ||
| R909409819 | GUIDE BUSHING | 1 | ||
| R909449463 | PLUG | 1 | ||
| R909424759 | SPRING DISK | 1 | ||
| R909409821 | SPRING DISK | 1 | ||
| R909409822 | RETAINING PIN | 1 | ||
| R902215924 | SCREW PLUG | 1 | ||
| R909150369 | SHIM RING | 1 | ||
| R909150370 | SHIM RING | 1 | ||
| R909153402 | SHIM RING | 1 | ||
| R909409825 | COMPRESSION SPRING | 1 | ||
| R909409931 | COMPRESSION SPRING | 1 | ||
| R909084890 | O-RINGD | 1 | ||
| R909084890 | O-RINGD | 1 |
