Assembly

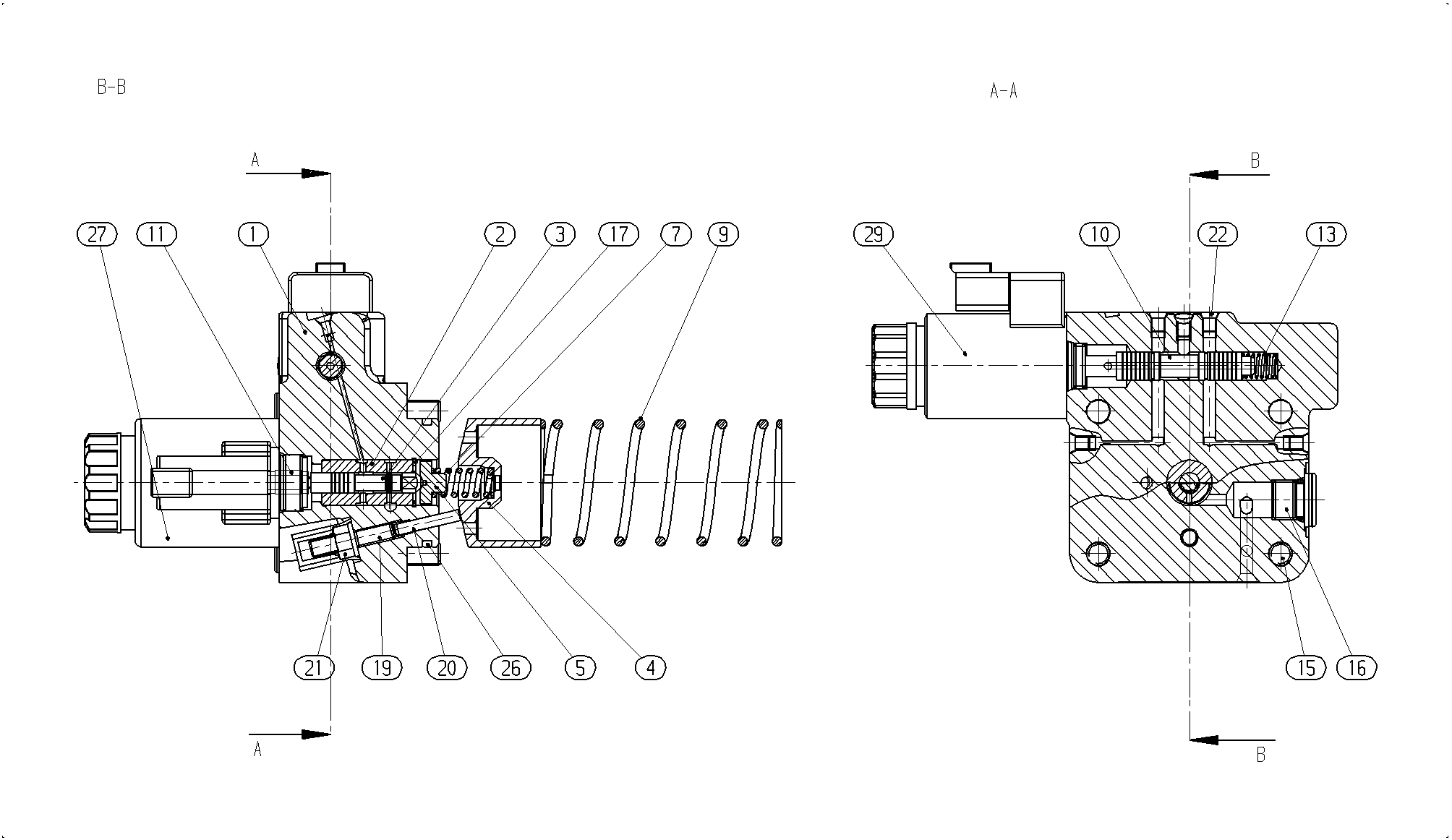

CONTROL PARTR902221767
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902162385 | CONTROL HOUSING | 1 | |
| 2 | R909432662 | CONTROL SLEEVE | 1 | |
| 3 | R902006956 | CONTROL PISTON | 1 | |
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| 9 | R909921342 | COMPRESSION SPRING | 1 | |
| R902045129 | CONTROL PISTON | 1 | ||
| 11 | R909650196 | BUSHING | 1 | |
| R902045064 | COMPRESSION SPRING | 1 | ||
| R909831514 | SOCKET HEAD CAP SCREW | 4 | ||
| R913044793 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909085560 | O-RINGD | 1 | ||
| 27 | R902603771 | SWITCHING SOLENOID | 1 | |
| 29 | R902602691 | SWITCHING SOLENOID | 1 |
