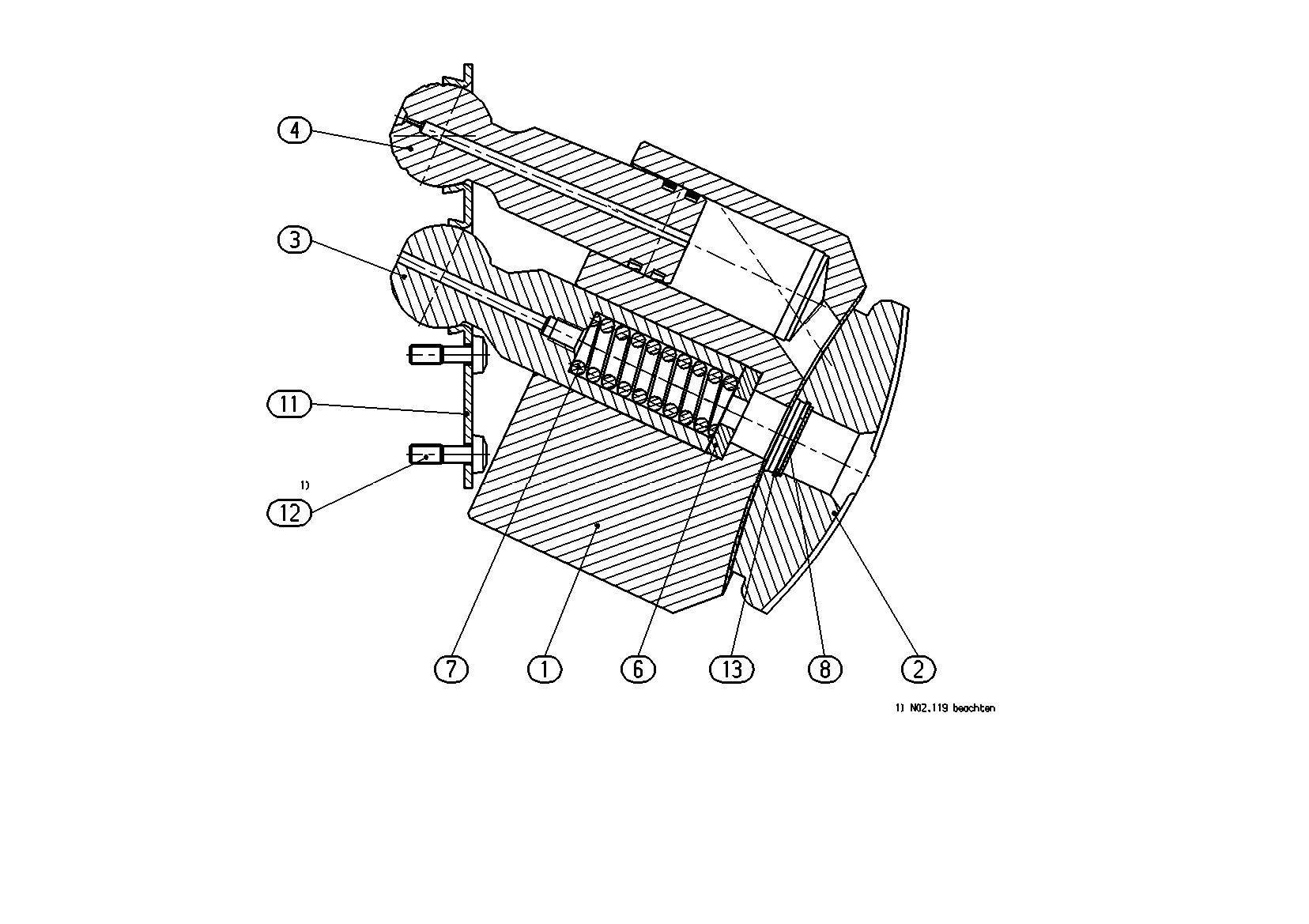

Assembly
ROTARY GROUPR902221865
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902203997 | CYLINDER | 1 | ||
| R902221838 | CONTROL LENS | 1 | ||
| R902117877 | CENTER PIN | 1 | ||
| R902107522 | PISTON | 9 | ||
| R902077201 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902014283 | COMPRESSION SPRING | 1 | ||
| R909419098 | WASHER | 1 | ||
| R902246200 | RETAINING PLATE | 1 | ||
| R902602776 | PAN-HEAD SCREW | 18 | ||
| R909083385 | RETAINING RING | 1 |
