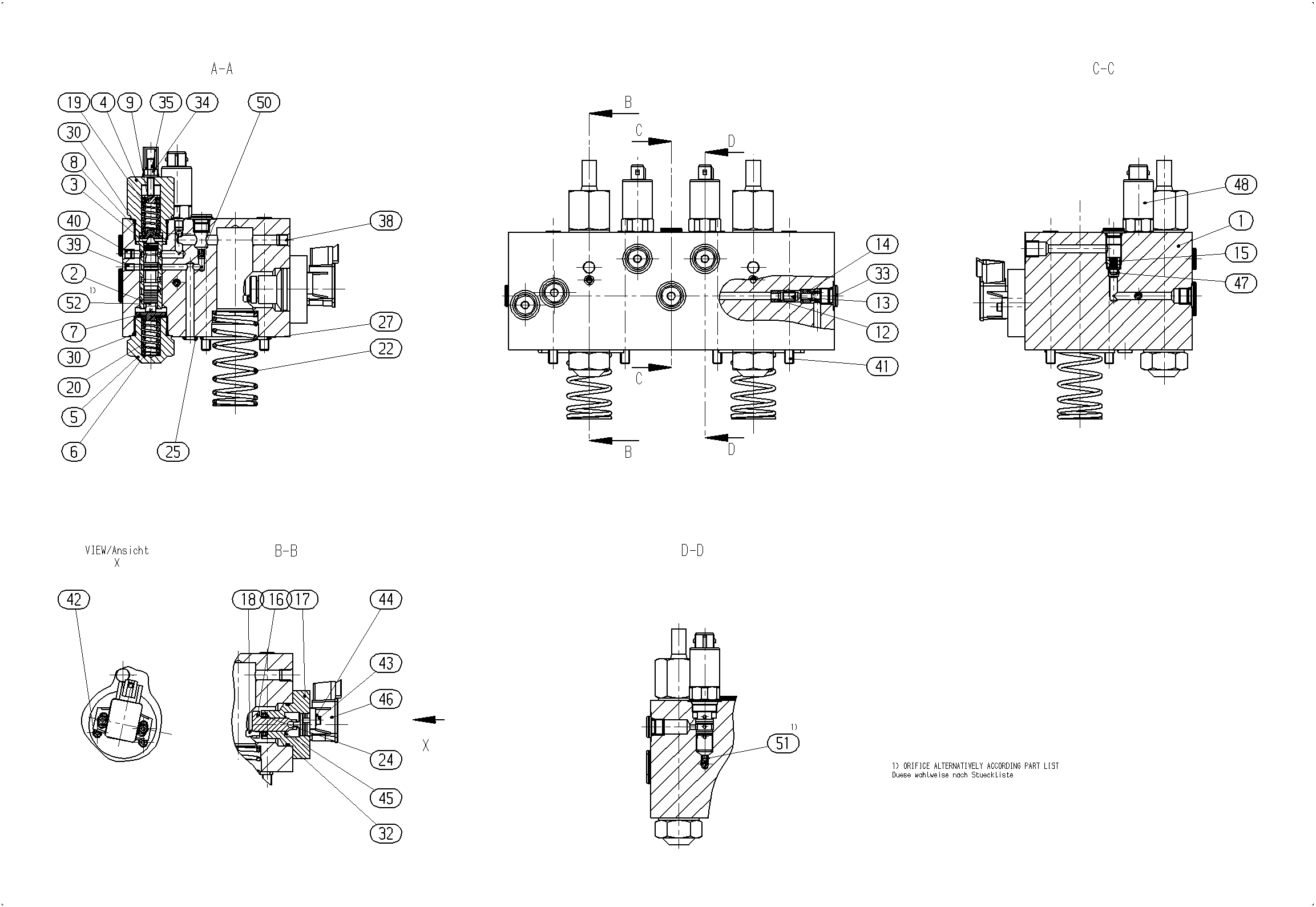

Assembly
CONTROL UNITR902224133
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902221969 | CONTROL HOUSING | 1 | ||
| R902182331 | CONTROL SLEEVE | 2 | ||
| R902206846 | CONTROL PISTON | 2 | ||
| R902151746 | SCREW PLUG | 2 | ||
| R902182374 | SCREW PLUG | 2 | ||
| R909150369 | SHIM RING | 2 | ||
| R902151748 | SPRING DISK | 2 | ||
| R902151742 | SPRING DISK | 2 | ||
| R909431526 | SPRING DISK | 2 | ||
| R909425801 | BUSHING | 2 | ||
| R902212565 | VALVE CONE | 2 | ||
| R909431990 | VALVE BUSHING | 2 | ||
| R902151772 | THREADED RING | 1 | ||
| R902158648 | SENSOR SHAFT | 2 | ||
| R902158647 | SENSOR HOUSING | 2 | ||
| R902158649 | BALL STUD | 2 | ||
| R902182325 | COMPRESSION SPRING | 2 | ||
| R902182325 | COMPRESSION SPRING | 2 | ||
| R902151876 | COMPRESSION SPRING | 2 | ||
| R900036379 | DEEP-GROOVE BALL BEARING | 2 | ||
| R902600655 | O-RING | 6 | ||
| R909151810 | O-RINGD | 2 | ||
| R909083764 | O-RINGD | 4 | ||
| R909086730 | O-RINGD | 2 | ||
| R909831482 | SCREW PLUGD | 8 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909157096 | SETSCREW | 2 | ||
| 36 | R902602216 | SCREW PLUGD | 2 | |
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 10 | ||
| R909085702 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083004 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 4 | ||
| 2916010109 | WASHER | 4 | ||
| R909083346 | RETAINING RING | 2 | ||
| R902603466 | ROT. ANGLE SENSOR | 2 | ||
| R913005474 | FILTER | 1 | ||
| R901344724 | PRESSURE REDUCING VALVE | 2 | ||
| R909156492 | NOZZLE | 2 |
