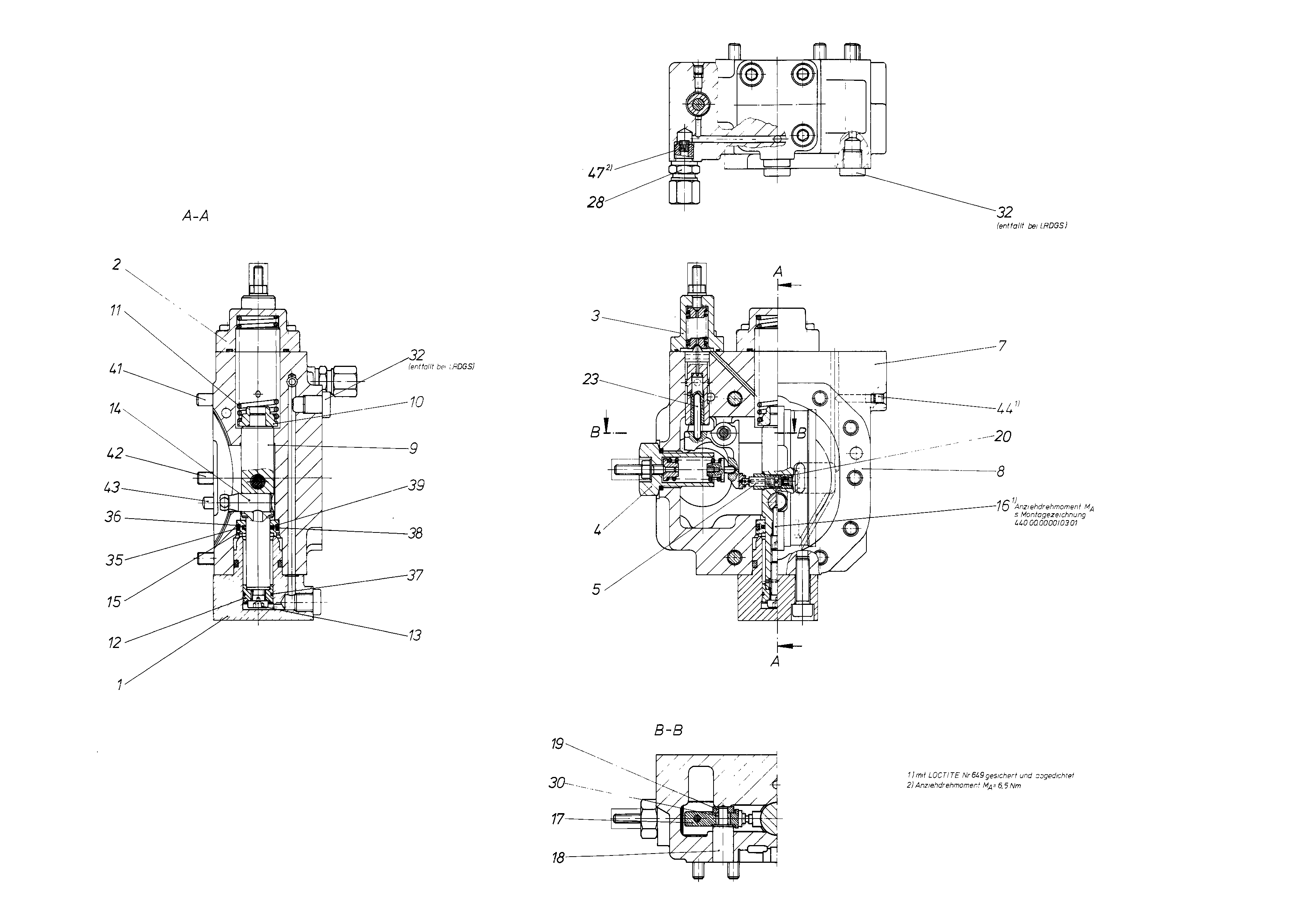

Assembly
CONTROLR902224140
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902014053 | GUIDE COVER Assembly parts list →L | 1 | ||
| 2 | R909437498 | COVER Assembly parts list →L | 1 | |
| 3 | R902224141 | CONTROL PART Assembly parts list →L | 1 | |
| R909448632 | ADJUSTING PART Assembly parts list →L | 1 | ||
| 5 | R909419520 | PISTON PAD | 1 | |
| 6 | R902224142 | SEQUENCE VALVE Assembly parts list →L | 1 | |
| R902014187 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024641 | SEALD | 1 | ||
| 9 | R909430102 | POSITIONING PISTON | 1 | |
| 10 | R909430100 | SPRING DISK | 1 | |
| R909426527 | COMPRESSION SPRING | 1 | ||
| R909430099 | PISTON | 1 | ||
| R909430464 | SOCKET HEAD CAP SCREW | 1 | ||
| 14 | R909425514 | POSITIONING STUD | 1 | |
| R909430101 | SEAL RING | 1 | ||
| R909417903 | SETSCREW | 1 | ||
| R902054362 | LEVER | 1 | ||
| R909418299 | BEARING BOLT | 1 | ||
| 19 | R909418300 | BUSHING | 1 | |
| 20 | R909425552 | ADJUSTING BUSH | 1 | |
| 23 | R909439610 | PIN | 1 | |
| R909403866 | THREADED FASTENER | 1 | ||
| 30 | R909830951 | NEEDLE BUSH | 1 | |
| 32 | R909156650 | SCREW PLUGD | 2 | |
| 35 | R909152694 | O-RINGD | 1 | |
| 36 | R909157774 | BACKUP RINGD | 1 | |
| 37 | R909153873 | R-RINGD | 1 | |
| R909157773 | ROD SEALD | 1 | ||
| 39 | R909154317 | O-RINGD | 1 | |
| 41 | R909083049 | SOCKET HEAD CAP SCREW | 7 | |
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| 44 | R909831318 | DOUBLE BREAK-OFF PLUG | 6 | |
| 47 | R909156492 | NOZZLE | 1 |
