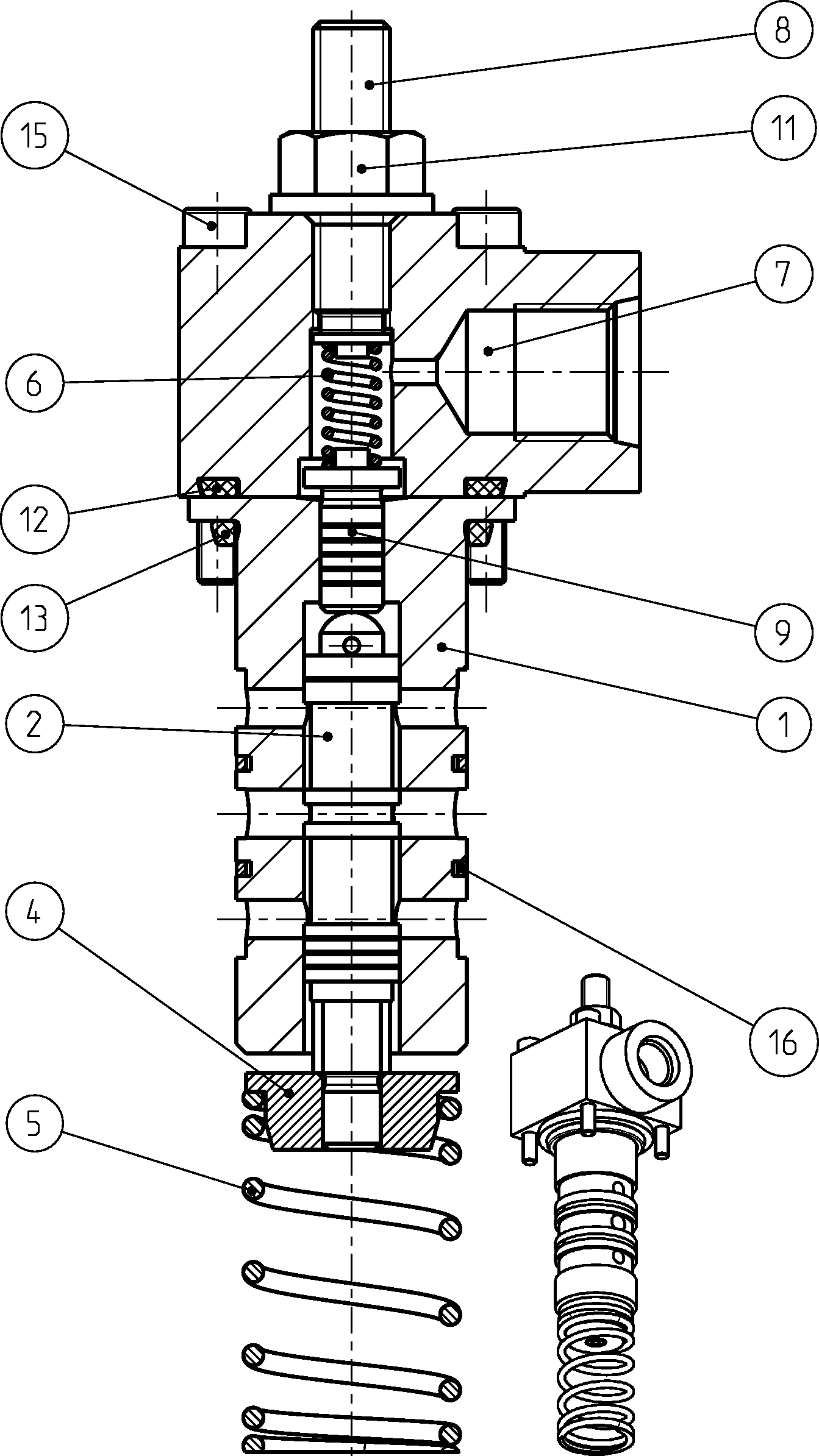

Assembly
CONTROL ELEMENTR902224973
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103935 | CONTROL SLEEVE | 1 | ||
| R909440840 | CONTROL PISTON | 1 | ||
| R909443179 | SPRING DISK | 1 | ||
| 5 | R909443392 | COMPRESSION SPRING | 1 | |
| R909435512 | COMPRESSION SPRING | 1 | ||
| R902208359 | CONNECTING PIECE | 1 | ||
| R902208358 | SETSCREW | 1 | ||
| 9 | R909443429 | CONTROL PISTON | 1 | |
| 11 | R909152707 | SEALING NUTD | 1 | |
| 12 | R909083764 | O-RINGD | 1 | |
| 13 | R909083763 | O-RINGD | 1 | |
| 15 | R909083007 | SOCKET HEAD CAP SCREW | 4 |
