Assembly

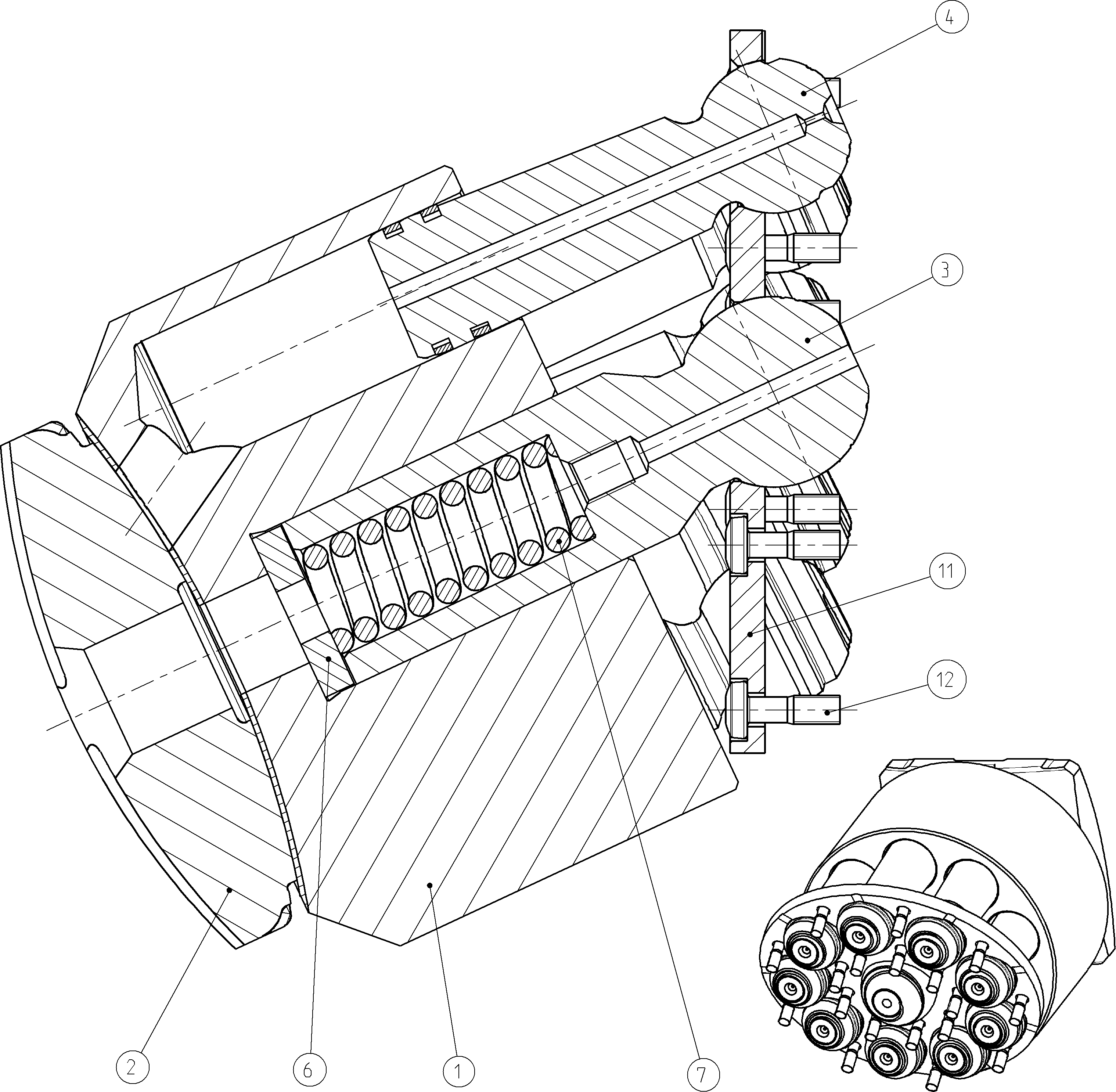

ROTARY GROUPR902227233
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902209843 | CYLINDER | 1 | ||
| R902107948 | CONTROL LENS | 1 | ||
| R902119600 | CENTER PIN | 1 | ||
| R902107947 | PISTON | 9 | ||
| R902101007 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R909921583 | COMPRESSION SPRING | 1 | ||
| R902246201 | RETAINING PLATE | 1 | ||
| R902602493 | PAN-HEAD SCREW | 18 |
