Assembly

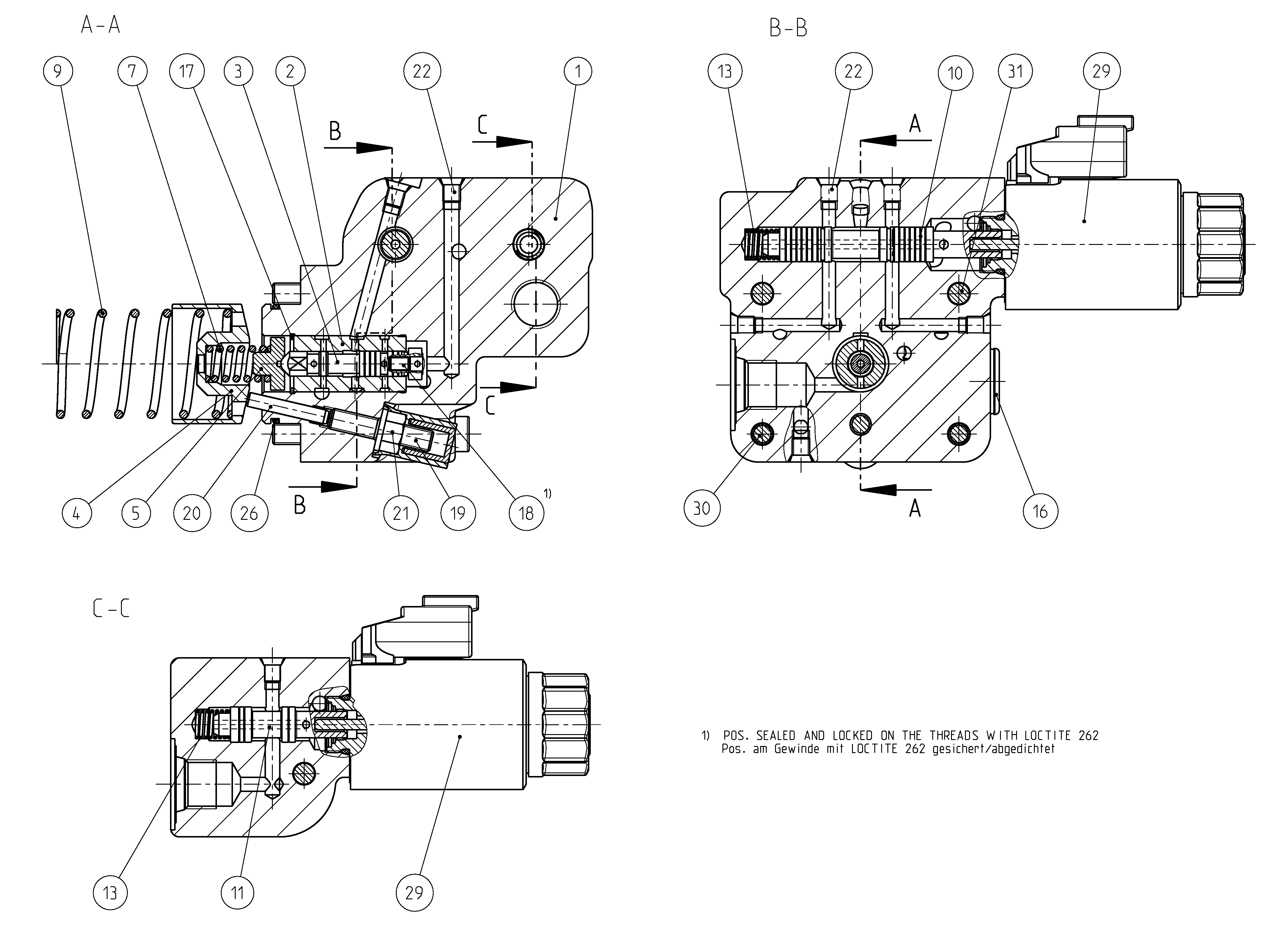

CONTROL PARTR902227398
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902132269 | CONTROL HOUSING | 1 | ||
| R909424258 | CONTROL SLEEVE | 1 | ||
| R909921245 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| R909651117 | COMPRESSION SPRING | 1 | ||
| R902045129 | CONTROL PISTON | 1 | ||
| R902045130 | CONTROL PISTON | 1 | ||
| R902045064 | COMPRESSION SPRING | 2 | ||
| R909831482 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R902216406 | PLUG | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909085560 | O-RINGD | 1 | ||
| R902602690 | SWITCHING SOLENOID | 2 | ||
| R909831514 | SOCKET HEAD CAP SCREW | 3 | ||
| R900003218 | SOCKET HEAD CAP SCREW | 1 |
