Assembly

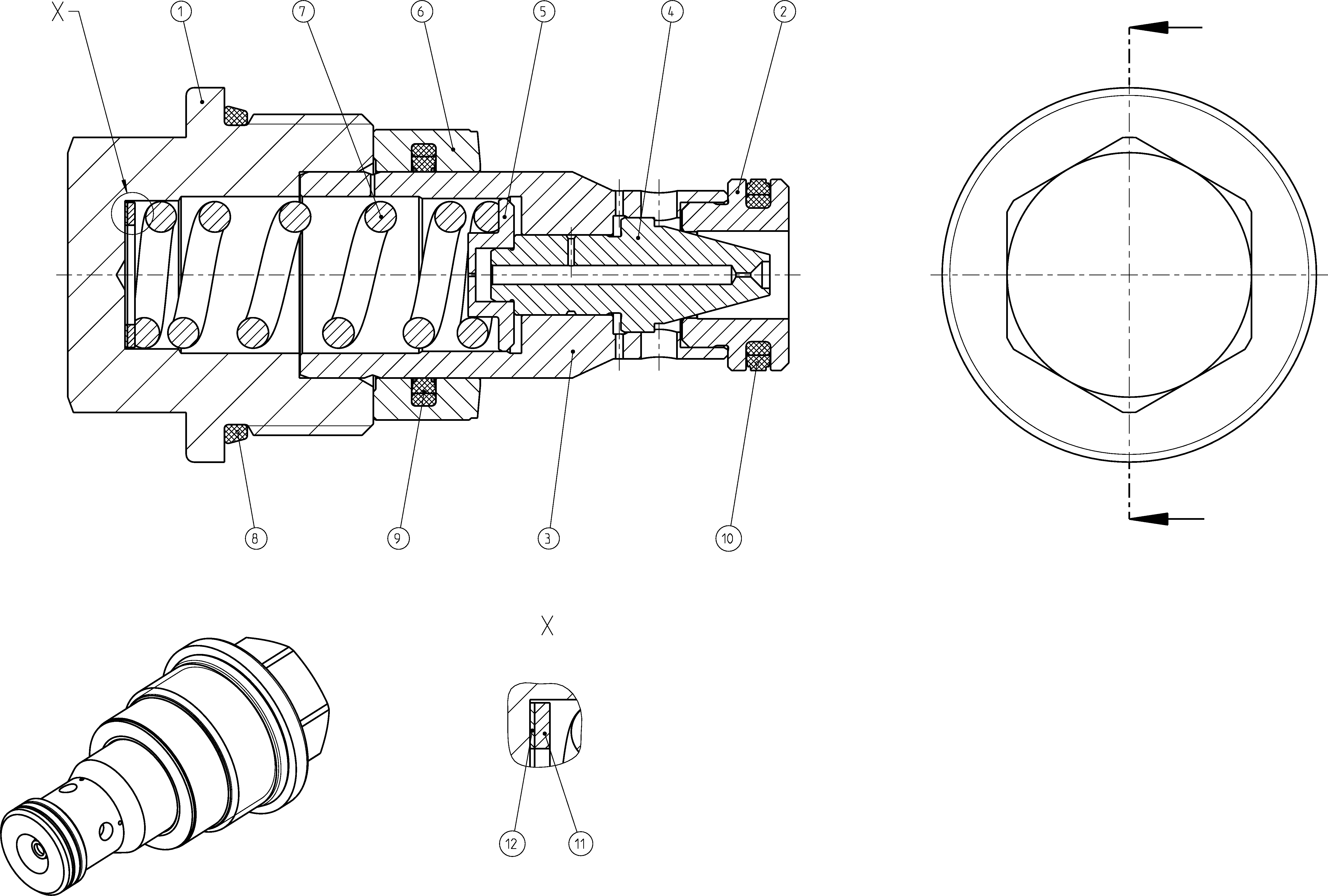

PRESSURE RELIEF VALVER902228295
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902200895 | SCREW PLUG | 1 | ||
| R902152700 | VALVE SEAT | 1 | ||
| R902200896 | BUSHING | 1 | ||
| R902219914 | CONE | 1 | ||
| R902208286 | SPRING DISK | 1 | ||
| R902224936 | RING | 1 | ||
| R902206462 | COMPRESSION SPRING | 1 | ||
| R909830872 | O-RINGD | 1 | ||
| R901024797 | ROD SEALD | 1 | ||
| R900011792 | PISTON SEALD | 1 | ||
| R900015062 | SHIM RING | 1 | ||
| R902603633 | SHIM RING | 1 |
