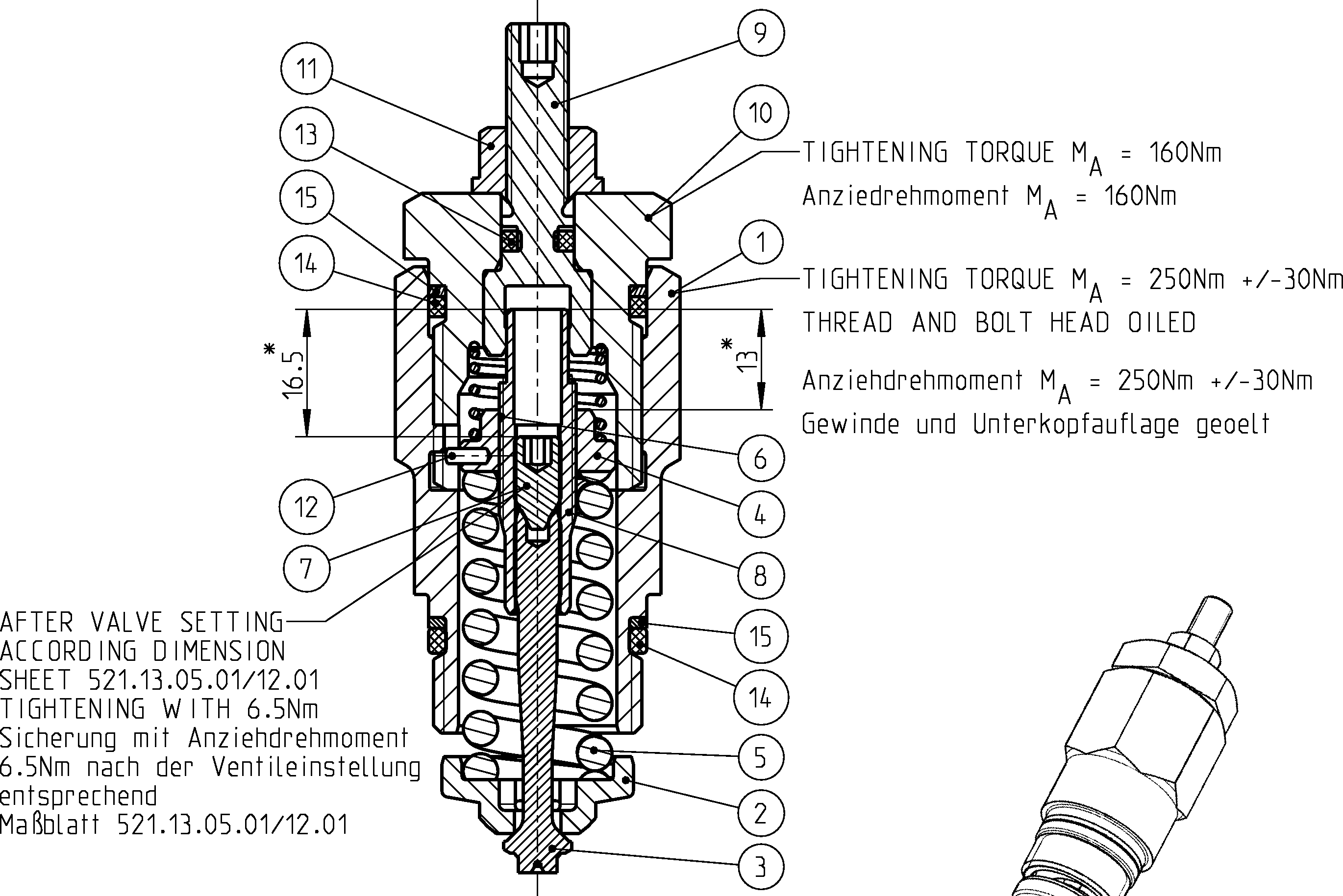

Assembly
PRESSURE RELIEF VALVER902228554
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016367 | SCREW PLUG | 1 | ||
| R909444164 | VALVE PLATE | 1 | ||
| R909445892 | VALVE STEM | 1 | ||
| R902016366 | SPRING DISK | 1 | ||
| R909921948 | COMPRESSION SPRING | 1 | ||
| R902016364 | COMPRESSION SPRING | 1 | ||
| R909430709 | SETSCREW | 1 | ||
| R902016365 | EXPANSION PIECE | 1 | ||
| R902215743 | ADJUSTING SCREW | 1 | ||
| R902016368 | VALVE SCREW | 1 | ||
| R909152707 | SEALING NUT | 1 | ||
| R902600553 | STRAIGHT PIN | 1 | ||
| R909156243 | O-RING | 1 | ||
| R909083761 | O-RING | 2 | ||
| R909831768 | BACKUP RING | 2 |
