Assembly

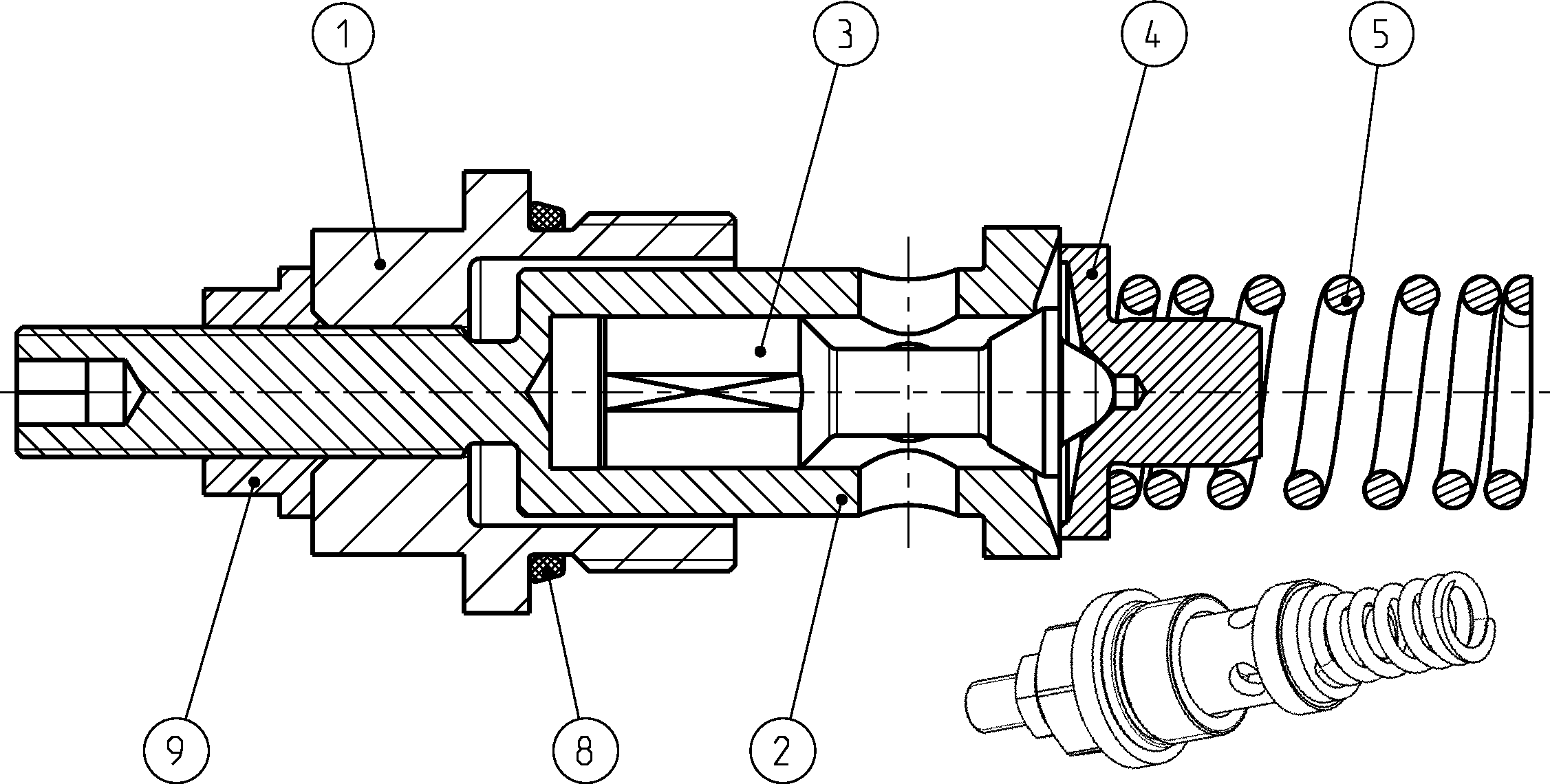

PRESSURE RELIEF VALVER902228577
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902228578 | SCREW PLUG | 1 | ||
| R902228579 | ADJUSTING SCREW | 1 | ||
| R902089073 | VALVE SPOOL | 1 | ||
| R902089071 | SPRING DISK | 1 | ||
| R902113637 | COMPRESSION SPRING | 1 | ||
| R902600900 | O-RINGD | 1 | ||
| R909087405 | SEALING NUTD | 1 |
