Assembly

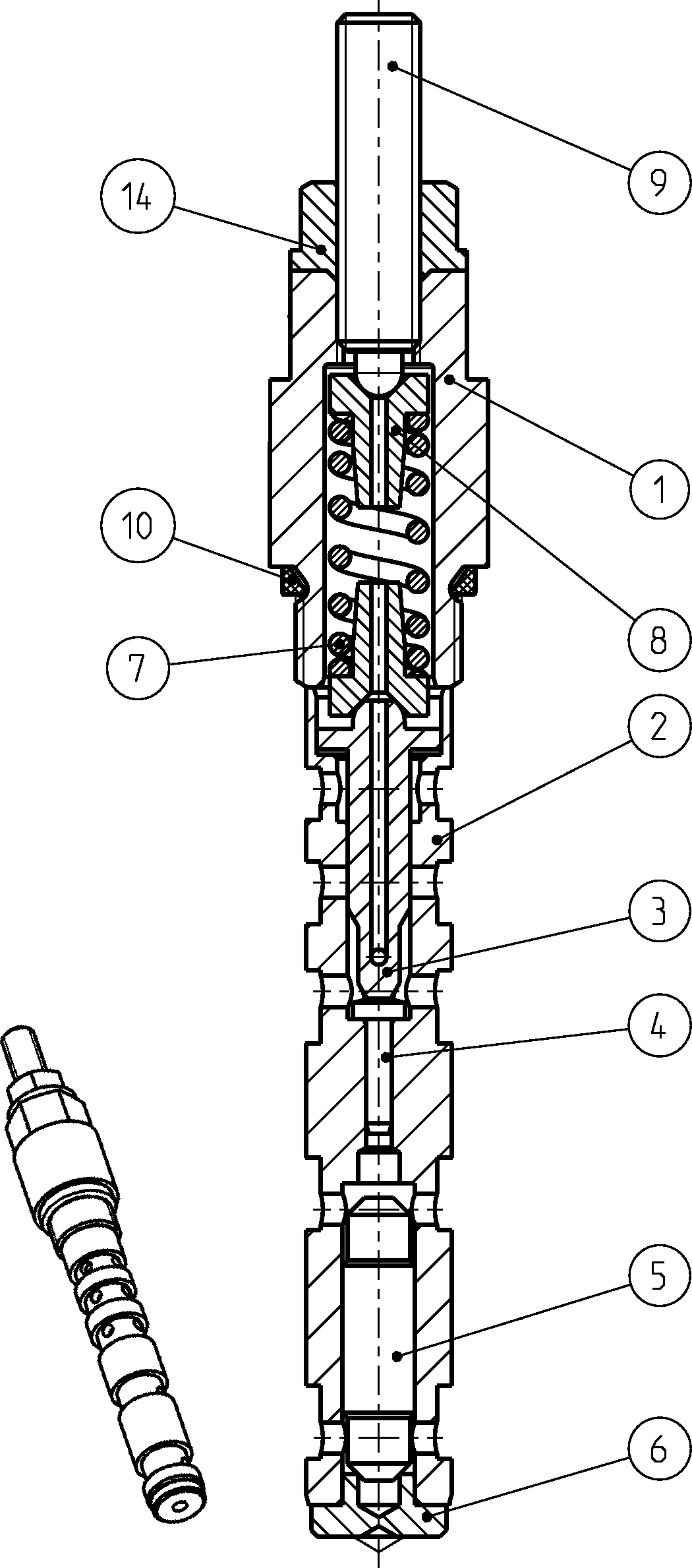

UNLOADING VALVER902228656
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909432268 | SCREW PLUG | 1 | ||
| R902215684 | VALVE BUSHING | 1 | ||
| R902215683 | CONTROL PISTON | 1 | ||
| R902215747 | PISTON | 1 | ||
| R909432164 | VALVE SPOOL | 1 | ||
| R909425955 | VALVE SEAT | 1 | ||
| R902215970 | COMPRESSION SPRING | 1 | ||
| R902049851 | SPRING DISK | 2 | ||
| R909432167 | ADJUSTING SCREW | 1 | ||
| R909083752 | O-RINGD | 1 | ||
| R909152707 | SEALING NUTD | 1 |
