Assembly

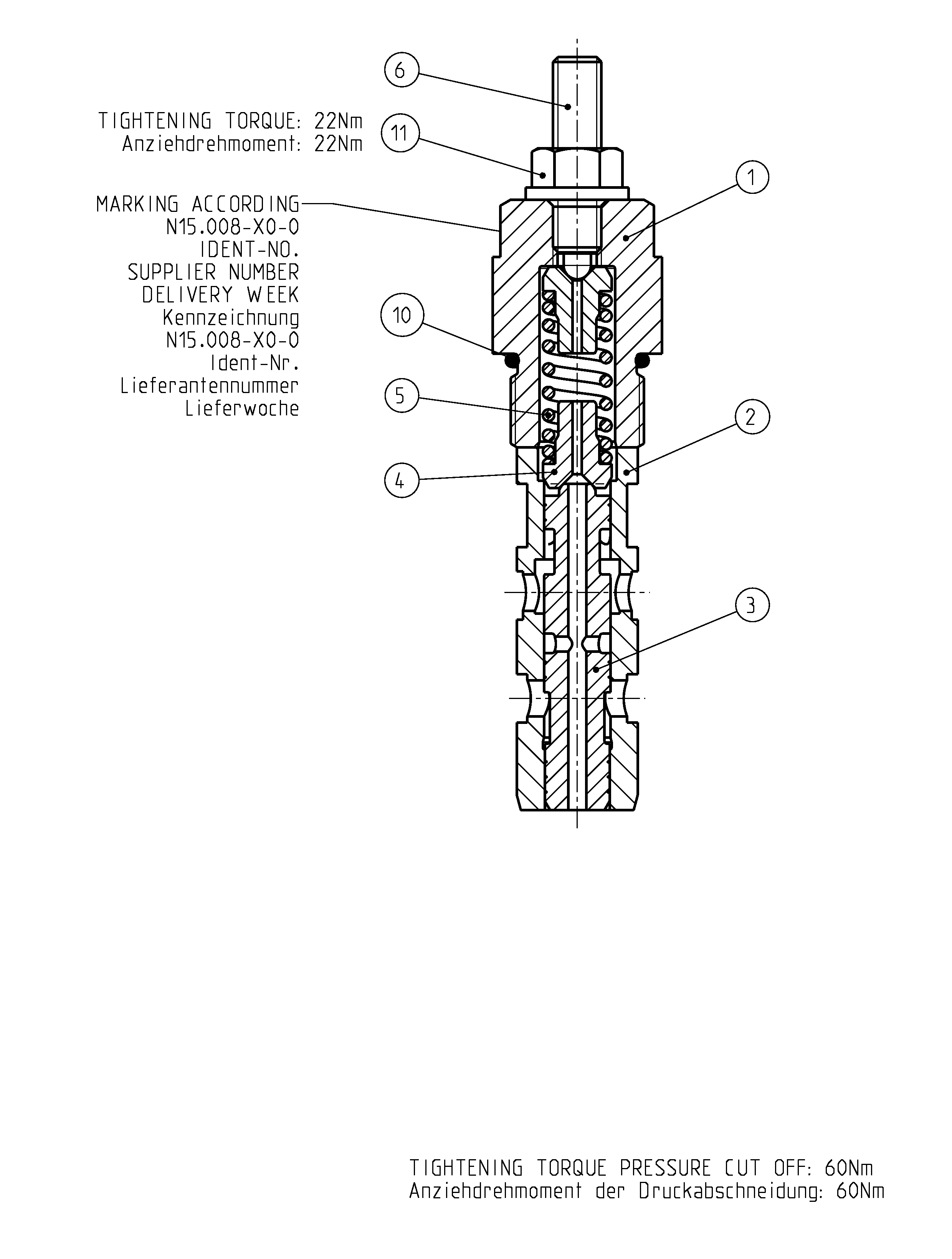

PRESSURE CUT-OFF VALVER902228879
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902106756 | SCREW PLUG | 1 | ||
| R902090832 | SLEEVE | 1 | ||
| R902133932 | CONTROL PISTON | 1 | ||
| R902228878 | SPRING DISK | 2 | ||
| R902272605 | COMPRESSION SPRING | 1 | ||
| R909432167 | ADJUSTING SCREW | 1 | ||
| R909830863 | O-RING | 1 | ||
| R909152707 | SEALING NUT | 1 |
